Linear - Guide System Two Piece

5 Products in this selection

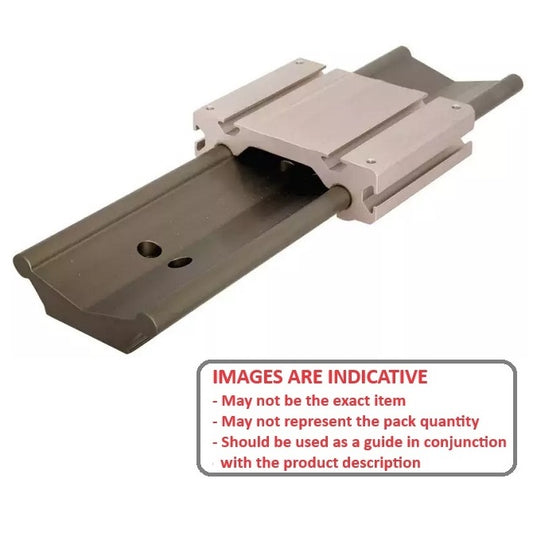

  • Using Frelon Gold plain bearing technology. Rail and carriage are made from 6063-T6 aluminium and come as a set.
  • Rails are ceramic coated to resist corrosion and repel weld spatter and contaminants.
  • Smooth running. Dampens vibration. Guide has slots for T nuts or bolts. Two component system allows for easier installation than traditional rail systems.
Additional resources:
A more concise listing may be found on the Smallparts store at Linear - Guide System Two Piece. Smallparts promote the most popular MBA products.
Rail Top Width (A/B) C Rail Bolt Centres (D) Rail Height (F) Carriage Width (G) Carriage Length (H) Indicative
74.930 / 50.800
mm 		19.050
mm 		101.600
mm 		41.275
mm 		116.840
mm 		88.900
mm 		1176976 | PBC-755RS --- Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Bolt Centre Length (J: 76.200 mm    Carriage Bolt Centre Width (K): 101.600 mm    Overall Length (O): 609.60 mm    P: 50.80 mm    Bolt Size (L): 10-32 UNF (4.763mm)    M: 66.040 mm
Part Number: PBC-755RS Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$2,475.86 AUD
$2,475.86 AUD
Each
Rail Top Width (A/B) C Rail Bolt Centres (D) Rail Height (F) Indicative
74.930 / 50.800
mm 		19.050
mm 		101.600
mm 		41.275
mm 		1176976 | PBC-755RS --- Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Width (G): 116.840 mm    Carriage Length (H): 88.900 mm    Carriage Bolt Centre Length (J: 76.200 mm    Carriage Bolt Centre Width (K): 101.600 mm    Overall Length (O): 609.60 mm    P: 50.80 mm    Bolt Size (L): 10-32 UNF (4.763mm)    M: 66.040 mm
Part Number: PBC-755RS Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$2,475.86 AUD
$2,475.86 AUD
Each
View the product page first if you are unsure.
74.930 / 50.800
mm 		19.050
mm 		101.600
mm 		41.275
mm 		116.840
mm 		88.900
mm 		1176977 | PBC-750RS --- Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Bolt Centre Length (J: 76.200 mm    Carriage Bolt Centre Width (K): 101.600 mm    Overall Length (O): 304.80 mm    P: 50.80 mm    Bolt Size (L): 10-32 UNF (4.763mm)    M: 66.040 mm
Part Number: PBC-750RS Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$1,461.59 AUD
$1,461.59 AUD
Each
74.930 / 50.800
mm 		19.050
mm 		101.600
mm 		41.275
mm 		1176977 | PBC-750RS --- Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Width (G): 116.840 mm    Carriage Length (H): 88.900 mm    Carriage Bolt Centre Length (J: 76.200 mm    Carriage Bolt Centre Width (K): 101.600 mm    Overall Length (O): 304.80 mm    P: 50.80 mm    Bolt Size (L): 10-32 UNF (4.763mm)    M: 66.040 mm
Part Number: PBC-750RS Guide System Two Piece Linear - 74.930 / 50.800 19.05x101.6 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$1,461.59 AUD
$1,461.59 AUD
Each
View the product page first if you are unsure.
100.076 / 66.040
mm 		25.400
mm 		152.400
mm 		53.975
mm 		154.940
mm 		114.300
mm 		1188539 | PBC-765RS --- Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Bolt Centre Length (J: 95.250 mm    Carriage Bolt Centre Width (K): 133.350 mm    Overall Length (O): 609.60 mm    P: 76.20 mm    Bolt Size (L): 1/4-20 UNC (6.350mm)    M: 88.900 mm
Part Number: PBC-765RS Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$3,131.14 AUD
$3,131.14 AUD
Each
100.076 / 66.040
mm 		25.400
mm 		152.400
mm 		53.975
mm 		1188539 | PBC-765RS --- Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Width (G): 154.940 mm    Carriage Length (H): 114.300 mm    Carriage Bolt Centre Length (J: 95.250 mm    Carriage Bolt Centre Width (K): 133.350 mm    Overall Length (O): 609.60 mm    P: 76.20 mm    Bolt Size (L): 1/4-20 UNC (6.350mm)    M: 88.900 mm
Part Number: PBC-765RS Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$3,131.14 AUD
$3,131.14 AUD
Each
View the product page first if you are unsure.
100.076 / 66.040
mm 		25.400
mm 		152.400
mm 		53.975
mm 		154.940
mm 		114.300
mm 		1188540 | PBC-760RS --- Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Bolt Centre Length (J: 95.250 mm    Carriage Bolt Centre Width (K): 133.350 mm    Overall Length (O): 304.80 mm    P: 76.20 mm    Bolt Size (L): 1/4-20 UNC (6.350mm)    M: 88.900 mm
Part Number: PBC-760RS Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$2,204.41 AUD
$2,204.41 AUD
Each
100.076 / 66.040
mm 		25.400
mm 		152.400
mm 		53.975
mm 		1188540 | PBC-760RS --- Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Material: Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating    Carriage Width (G): 154.940 mm    Carriage Length (H): 114.300 mm    Carriage Bolt Centre Length (J: 95.250 mm    Carriage Bolt Centre Width (K): 133.350 mm    Overall Length (O): 304.80 mm    P: 76.20 mm    Bolt Size (L): 1/4-20 UNC (6.350mm)    M: 88.900 mm
Part Number: PBC-760RS Guide System Two Piece Linear - 100.076 / 66.040 25.4x152.4 mm - Aluminium 6061-T6 with Ceramic Coated Rail and Frelon Gold self-lubricating
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$2,204.41 AUD
$2,204.41 AUD
Each
View the product page first if you are unsure.
124.968 / 83.820
mm 		31.750
mm 		152.400
mm 		66.675
mm 		193.040
mm 		152.400
mm 		1194939 | PBC-770RS --- Guide System Two Piece Linear - 124.968 / 83.820 31.75x152.4 mm
Carriage Bolt Centre Length (J: 133.350 mm    Carriage Bolt Centre Width (K): 171.450 mm    Overall Length (O): 304.80 mm    P: 101.60 mm    Bolt Size (L): 5/16-18 UNC (7.938mm)    M: 109.982 mm
Part Number: PBC-770RS Guide System Two Piece Linear - 124.968 / 83.820 31.75x152.4 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$2,457.95 AUD
$2,457.95 AUD
Each
124.968 / 83.820
mm 		31.750
mm 		152.400
mm 		66.675
mm 		1194939 | PBC-770RS --- Guide System Two Piece Linear - 124.968 / 83.820 31.75x152.4 mm
Carriage Width (G): 193.040 mm    Carriage Length (H): 152.400 mm    Carriage Bolt Centre Length (J: 133.350 mm    Carriage Bolt Centre Width (K): 171.450 mm    Overall Length (O): 304.80 mm    P: 101.60 mm    Bolt Size (L): 5/16-18 UNC (7.938mm)    M: 109.982 mm
Part Number: PBC-770RS Guide System Two Piece Linear - 124.968 / 83.820 31.75x152.4 mm
Out of Stock | Backorder Now | Orders can be expected around Tue, May 06, 2025
$2,457.95 AUD
$2,457.95 AUD
Each
View the product page first if you are unsure.
