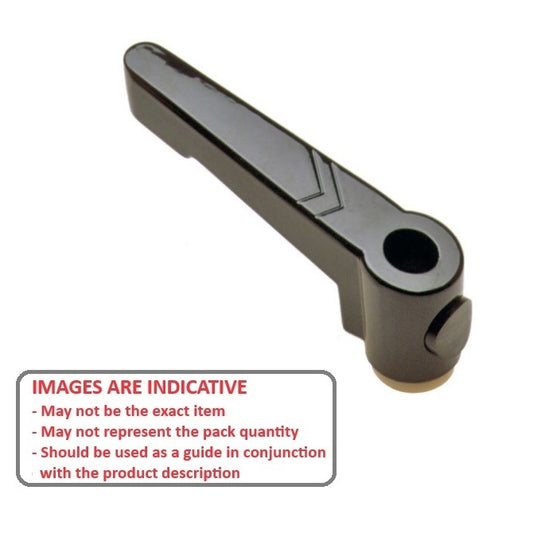

Levers - Clamp Quick Release

1 Item Available
  • Handles: Die-cast zinc or plastic.
  • Internal thread: mechanism made from carbon steel.
  • The thru-hole clamping lever allows for quick clamping on long thread lengths.
Additional resources:
A more concise listing may be found on the Smallparts store at Levers - Clamp Quick Release. Smallparts promote the most popular MBA products.
Thread Size Lever Centre Length (C) - Height (D) Base Diameter (A) Base Height (B) Indicative
M12 (12x1.75mm)
108.00
mm 		Die Cast Zinc
75.00
mm 		32.00
mm 		38.00
mm 		1100977 | FMH-712 --- Clamp Quick Release Levers - M12 -12x1.75mm- 108 mm - Die Cast Zinc - Die Cast Zinc
Material: Die Cast Zinc    Load Rating: 4005.00 kg    Torque: 51.78 Nm
Part Number: FMH-712 Clamp Quick Release Levers - M12 -12x1.75mm- 108 mm - Die Cast Zinc - Die Cast Zinc
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$30.00 AUD
$57.00 AUD $30.00 AUD
Each
Thread Size Lever Centre Length (C) - Height (D) Indicative
M12 (12x1.75mm)
108.00
mm 		Die Cast Zinc
75.00
mm 		1100977 | FMH-712 --- Clamp Quick Release Levers - M12 -12x1.75mm- 108 mm - Die Cast Zinc - Die Cast Zinc
Material: Die Cast Zinc    Base Diameter (A): 32.00 mm    Base Height (B): 38.00 mm    Load Rating: 4005.00 kg    Torque: 51.78 Nm
Part Number: FMH-712 Clamp Quick Release Levers - M12 -12x1.75mm- 108 mm - Die Cast Zinc - Die Cast Zinc
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$30.00 AUD
$57.00 AUD $30.00 AUD
Each
