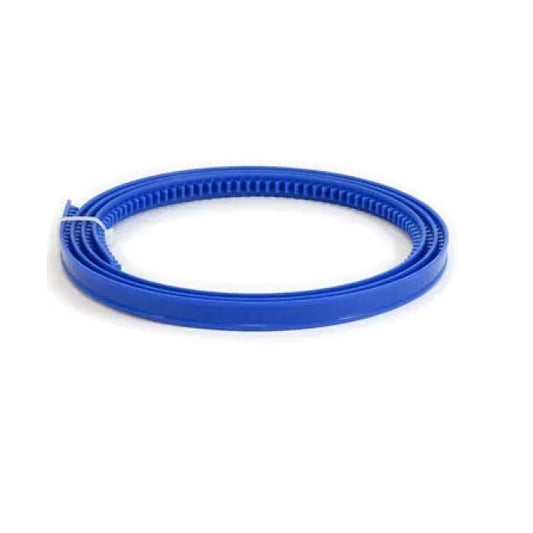

A selection of Standard Flexible Imperial Rack Gears. Blue acetal. Ideal for curved or irregular surfaces. Can fit a bent radius as small as 75mm.

  • Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
  • An expanded range may be available on special order. Please enquire.
  • 20 Degree Pressure Angle.
  • Resistant to weak acids and alkalis, oil, grease, petrol, alcohol, ketones.
  • Working temperature 100 Deg. C, Intermittent to 149 Deg. C.
  • See optional rack clamps and guide rails.
  • Longer lengths available on special order.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Rack - Imperial - Flexible - Standard category on the Small Parts & Bearings online store.
Module Length (L) Width (S) Gap Width (S1) Gap Height (h2) Indicative
Rack Gears - Module 0.8 - 2000x8 mm Imperial
Module
0.8
Length (L)
2000
mm
Width (S)
8.000
mm
Gap Width (S1)
3.700
Gap Height (h2)
0.700
mm
Rack Gears - Module 0.8 - 2000x8 mm Imperial
Height (H): 3.30 mm    Width of tooth base (S3): 3.80 mm    Width of tooth top (S2): 3.00 mm    Pitch Height (P): 2.500    Min. Internal Bend Radius: 75 mm    Min. External Bend Radius: 75 mmm
Part Number: GR-M08F-2000-A (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Module Length (L) Width (S) Gap Width (S1) Indicative
Rack Gears - Module 0.8 - 2000x8 mm Imperial
Module
0.8
Length (L)
2000
mm
Width (S)
8.000
mm
Gap Width (S1)
3.700
Rack Gears - Module 0.8 - 2000x8 mm Imperial
Gap Height (h2): 0.700 mm    Height (H): 3.30 mm    Width of tooth base (S3): 3.80 mm    Width of tooth top (S2): 3.00 mm    Pitch Height (P): 2.500    Min. Internal Bend Radius: 75 mm    Min. External Bend Radius: 75 mmm
Part Number: GR-M08F-2000-A (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Dec 17, 2028
Rack Gears - Module 1 - 2000x10 mm Imperial
Module
1
Length (L)
2000
mm
Width (S)
10.000
mm
Gap Width (S1)
4.900
Gap Height (h2)
0.900
mm
Rack Gears - Module 1 - 2000x10 mm Imperial
Height (H): 4.30 mm    Width of tooth base (S3): 5.00 mm    Width of tooth top (S2): 4.00 mm    Pitch Height (P): 3.300    Min. Internal Bend Radius: 85 mm    Min. External Bend Radius: 125 mmm
Part Number: GR-M1F-2000-A (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Rack Gears - Module 1 - 2000x10 mm Imperial
Module
1
Length (L)
2000
mm
Width (S)
10.000
mm
Gap Width (S1)
4.900
Rack Gears - Module 1 - 2000x10 mm Imperial
Gap Height (h2): 0.900 mm    Height (H): 4.30 mm    Width of tooth base (S3): 5.00 mm    Width of tooth top (S2): 4.00 mm    Pitch Height (P): 3.300    Min. Internal Bend Radius: 85 mm    Min. External Bend Radius: 125 mmm
Part Number: GR-M1F-2000-A (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Dec 17, 2028
Rack Gears - Module 1.5 - 2000x12 mm Imperial
Module
1.5
Length (L)
2000
mm
Width (S)
12.000
mm
Gap Width (S1)
8.000
Gap Height (h2)
1.000
mm
Rack Gears - Module 1.5 - 2000x12 mm Imperial
Height (H): 5.70 mm    Width of tooth base (S3): 6.50 mm    Width of tooth top (S2): 5.00 mm    Pitch Height (P): 4.200    Min. Internal Bend Radius: 100 mm    Min. External Bend Radius: 150 mmm
Part Number: GR-M15F-2000-A (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Rack Gears - Module 1.5 - 2000x12 mm Imperial
Module
1.5
Length (L)
2000
mm
Width (S)
12.000
mm
Gap Width (S1)
8.000
Rack Gears - Module 1.5 - 2000x12 mm Imperial
Gap Height (h2): 1.000 mm    Height (H): 5.70 mm    Width of tooth base (S3): 6.50 mm    Width of tooth top (S2): 5.00 mm    Pitch Height (P): 4.200    Min. Internal Bend Radius: 100 mm    Min. External Bend Radius: 150 mmm
Part Number: GR-M15F-2000-A (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Dec 17, 2028
Rack Gears - Module 2 - 2000x15 mm Imperial
Module
2
Length (L)
2000
mm
Width (S)
15.000
mm
Gap Width (S1)
10.100
Gap Height (h2)
1.100
mm
Rack Gears - Module 2 - 2000x15 mm Imperial
Height (H): 7.00 mm    Width of tooth base (S3): 8.00 mm    Width of tooth top (S2): 6.00 mm    Pitch Height (P): 5.000    Min. Internal Bend Radius: 125 mm    Min. External Bend Radius: 175 mmm
Part Number: GR-M2F-2000-A (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Rack Gears - Module 2 - 2000x15 mm Imperial
Module
2
Length (L)
2000
mm
Width (S)
15.000
mm
Gap Width (S1)
10.100
Rack Gears - Module 2 - 2000x15 mm Imperial
Gap Height (h2): 1.100 mm    Height (H): 7.00 mm    Width of tooth base (S3): 8.00 mm    Width of tooth top (S2): 6.00 mm    Pitch Height (P): 5.000    Min. Internal Bend Radius: 125 mm    Min. External Bend Radius: 175 mmm
Part Number: GR-M2F-2000-A (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Dec 17, 2028
