Gears - Rack - Imperial - 16DP - Plastic

Gears -> Rack -> Imperial -> 16DP -> Plastic

There is only 1 product in the sub-categories of Gears - Rack - Imperial - 16DP - Plastic. Browse the Gears - Rack - Imperial - 16DP - Plastic products table.

Category Details

A selection of Plastic 16DP Imperial Rack Gears. 14.5 Degree Pressure Angle. Nylon. DP stands for Diametrical Pitch imperial sizes.

  • Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
  • An expanded range may be available on special order. Please enquire.
  • 16 DP. Approx 4.99mm between teeth.
  • Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Gears - Rack - Imperial - 16DP - Plastic category on the Small Parts & Bearings online store.
Length (L) Face Width (fw) Height (h) Pitch Type Pitch Height (ph) Pressure Angle Indicative

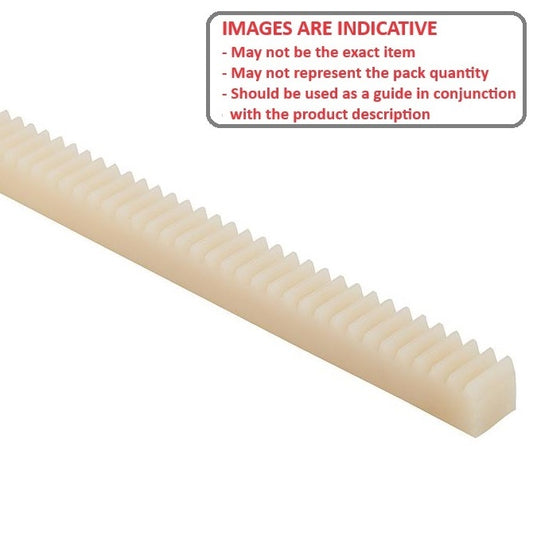

Rack Gears - 304.8x7.938x7.938 mm Imperial - Nylon 101
Length (L)
304.80
mm

(Equiv. 12 in.)
Face Width (fw)
7.938
mm

(Equiv. 0.313 in.)
Height (h)
7.938
mm

(Equiv. 0.313 in.)
Pitch Type
16DP - 14.5 PA
Pitch Height (ph)
6.350
mm
Pressure Angle
14.5 °

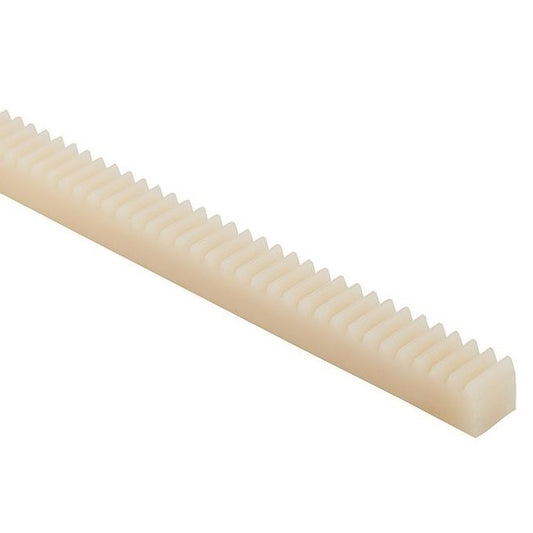

Rack Gears - 304.8x7.938x7.938 mm - Nylon 101
Material: Nylon 101    Precision: Commercial    Mounting Holes: None    Shape: Square
Part Number: GR-V16-08-0305-08-N (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 15, 2026
$10.59 AUD
$10.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Length (L) Face Width (fw) Height (h) Pitch Type Indicative
Rack Gears - 304.8x7.938x7.938 mm Imperial - Nylon 101
Length (L)
304.80
mm

(Equiv. 12 in.)
Face Width (fw)
7.938
mm

(Equiv. 0.313 in.)
Height (h)
7.938
mm

(Equiv. 0.313 in.)
Pitch Type
16DP - 14.5 PA
Rack Gears - 304.8x7.938x7.938 mm - Nylon 101
Material: Nylon 101    Pitch Height (ph): 6.350 mm    Pressure Angle: 14.5 °    Precision: Commercial    Mounting Holes: None    Shape: Square
Part Number: GR-V16-08-0305-08-N (Each)
Out of Stock | Backorder Now | Orders can be expected around Sun, Feb 15, 2026
$10.59 AUD
$10.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
