Collection: Gears - Mitre - Module 1 - Plastic
Gears - Mitre
Gears - Mitre - Module 1
Gears - Mitre - Module 1 - Plastic
1 Item Available
1:1 Ratio. 20o Pressure Angle - Acetal.
Mitre gears are used with a matching gear of the same pitch and number of teeth.
This provides a 1:1 ratio on a 90o angle.
See Gears - Bevel for other ratios.
Mitre gears are used with a matching gear of the same pitch and number of teeth.
This provides a 1:1 ratio on a 90o angle.
See Gears - Bevel for other ratios.
Teeth | Pitch Diameter (pd) | Bore (d) | Overall Length (D) | Sold Per | Hub Diameter (E) |

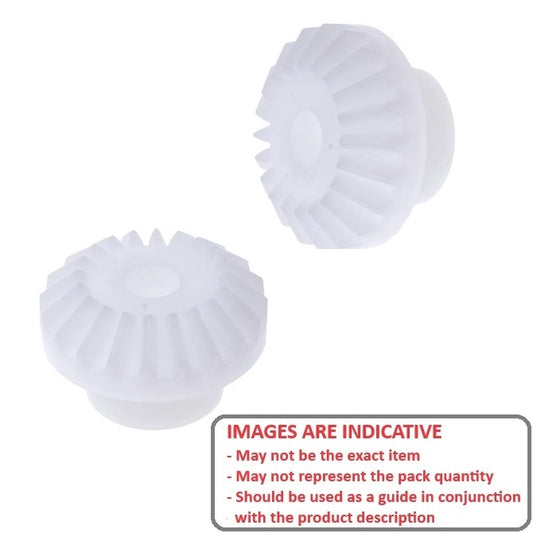

Indicative Image |
---|---|---|---|---|---|---|
30 |
30.000 mm |
6.000 mm |
15.300 mm |
Each |
12.000 / No Set Screw mm |
|
Material: Commercial / Acetal Hub Projection (F): 7.50 mm Mounting Distance (C): 24.800 mm Face Width (B): 7.200 mm | ||||||
Part Number: GM-030-M1-060-A (5 Pcs) --- Gears - 30 x 30 mm x 6 mm
1 (5 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$30.00 AUD
Regular price
Unit price
/
per
Per 5
|
||||||
Teeth | Pitch Diameter (pd) | Bore (d) | Overall Length (D) |
Indicative Image |
||
30 |
30.000 mm |
6.000 mm |
15.300 mm |
|||
Material: Commercial / Acetal Sold Per: Each Hub Diameter (E): 12.000 / No Set Screw mm Hub Projection (F): 7.50 mm Mounting Distance (C): 24.800 mm Face Width (B): 7.200 mm | ||||||
Part Number: GM-030-M1-060-A (5 Pcs) --- Gears - 30 x 30 mm x 6 mm
1 (5 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity | Regular price
$30.00 AUD
Regular price
Unit price
/
per
Per 5
|
||||||
|
