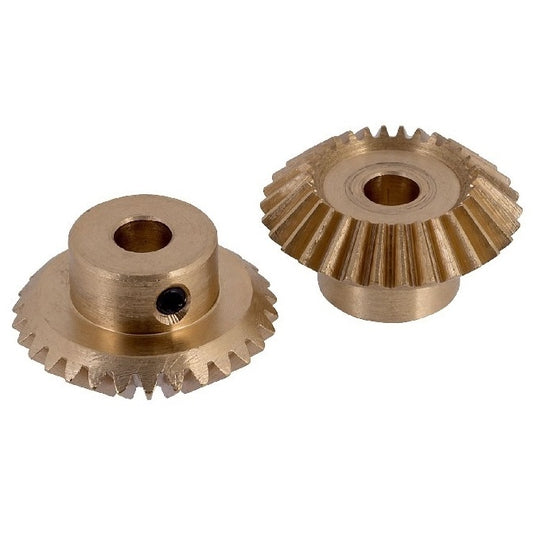

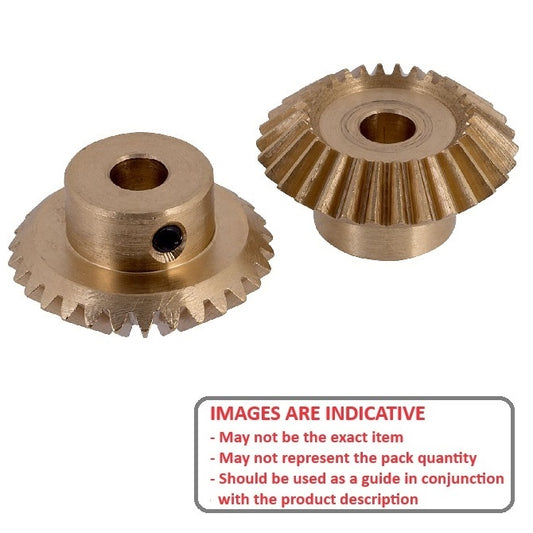

Gears - Mitre - Module 1 - Brass

1 Item Available
  • 1:1 Ratio. 20o Pressure Angle
  • Mitre gears are used with a matching gear of the same pitch and number of teeth.
  • This provides a 1:1 ratio on a 90o angle.
  • See Gears - Bevel for other ratios.
Additional resources:
Bevel Gears
Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Sold Per Hub Diameter (hd) Indicative
20
20.000
mm 		6.000
mm 		14.000
mm 		16.000 / No Set Screw
mm 		1124058 | GM-020-M1-060-B --- Mitre Gears - 20 x 20 mm x 6 mm
Material: ISO 8 / Brass    Hub Projection (F): 8.50 mm    Mounting Distance (C): 20.500 mm    Face Width (B): 4.300 mm
Part Number: GM-020-M1-060-B Mitre Gears - 20 x 20 mm x 6 mm
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$15.00 AUD
$28.50 AUD $15.00 AUD
Each
Teeth Pitch Diameter (pd) Bore (d) Overall Length (L) Indicative
20
20.000
mm 		6.000
mm 		14.000
mm 		1124058 | GM-020-M1-060-B --- Mitre Gears - 20 x 20 mm x 6 mm
Material: ISO 8 / Brass    Hub Diameter (hd): 16.000 / No Set Screw mm    Hub Projection (F): 8.50 mm    Mounting Distance (C): 20.500 mm    Face Width (B): 4.300 mm
Part Number: GM-020-M1-060-B Mitre Gears - 20 x 20 mm x 6 mm
1 Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$15.00 AUD
$28.50 AUD $15.00 AUD
Each
