Couplings - Crowned Tooth Gear - Sleeves

Couplings -> Crowned Tooth Gear -> Sleeves

There is only 1 product in the sub-categories of Couplings - Crowned Tooth Gear - Sleeves. Browse the Couplings - Crowned Tooth Gear - Sleeves products table.

Category Details

A selection of Sleeves Crowned Tooth Gear Couplings. Match with hubs from the hubs category

  • An expanded range may be available on special order. Please enquire.
  • +/- 1.02 mm Axial Displacement.
  • 0.41mm Parallel offset per hub.
  • 1o Angular Displacement.
  • Free axial movement. 19.55 to 88 Nm. 8500 to 14000 rpm.
  • High torque / low inertia.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Couplings - Crowned Tooth Gear - Sleeves category on the Small Parts & Bearings online store.
Bore Bore Sleeve OD Sleeve Length (G) Description Indicative
Crowned Tooth Gear Couplings - N Match OD with Hub 82.6 mm Sleeves - Nylon Polyamide 6/6 Coupling
Bore
N
mm
Bore
Match OD with Hub
mm
Sleeve OD
82.6
mm
Sleeve Length (G)
48.26
mm
Description
Sleeve Only

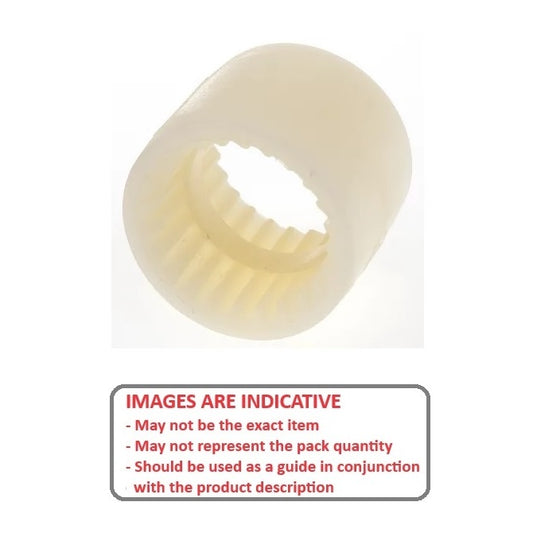

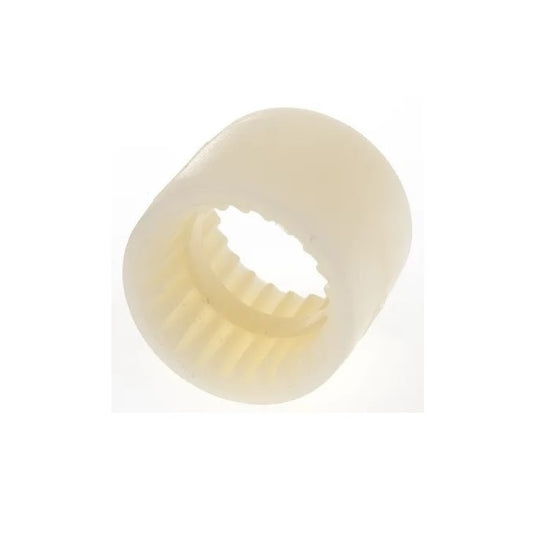

Crowned Tooth Gear Couplings - N A 82.6 mm - Nylon Polyamide 6/6
Material: Nylon (Polyamide 6/6)    Max Speed: 6700 RPM    Max Torque: 1388 n.m    Hub Length (E): 82.550 mm
Part Number: CP-SLV-G-CT-83 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Aug 14, 2026
$124.05 AUD
$124.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Bore Bore Sleeve OD Sleeve Length (G) Indicative
Crowned Tooth Gear Couplings - N Match OD with Hub 82.6 mm Sleeves - Nylon Polyamide 6/6 Coupling
Bore
N
mm
Bore
Match OD with Hub
mm
Sleeve OD
82.6
mm
Sleeve Length (G)
48.26
mm
Crowned Tooth Gear Couplings - N A 82.6 mm - Nylon Polyamide 6/6
Material: Nylon (Polyamide 6/6)    Description: Sleeve Only    Max Speed: 6700 RPM    Max Torque: 1388 n.m    Hub Length (E): 82.550 mm
Part Number: CP-SLV-G-CT-83 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Aug 14, 2026
$124.05 AUD
$124.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
