Bushings - Tension

Bushings -> Tension

There are 10 products in the sub-categories of Bushings - Tension. Browse the Bushings - Tension products table.

Category Details

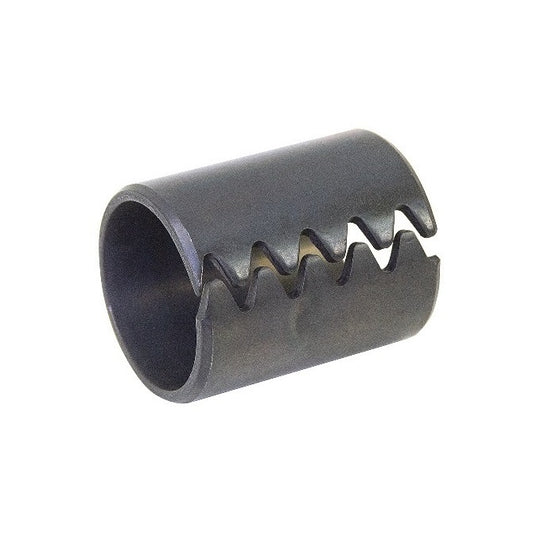

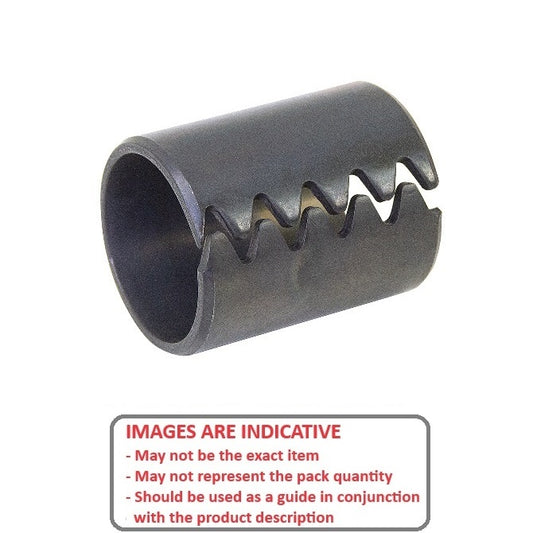

A selection of Tension Bushings. Like a heavy duty roll pin.

  • A hollow cylinder made from spring steel with a longitudinal slot that allows it to compress or expand upon installation into a bore.
  • Acts as a heavy-duty, wear-resistant bearing in pivot points for high-load, low-speed applications, absorbing shock and extending the life of machinery and components by protecting the bore and shaft from damage.
  • Also known as a split bushing or spring bushing.
  • Made of a high carbon spring steel with high elasticity, resilience and wear characteristics.
  • Designed to replace solid steel tubular and case hardened bushings because they are close tolerance, self-retaining and through hard.
  • Insertion can be easily accomplished with a hammer and drift.
  • Ideal for high load/low-speed operation in articulating or continuous applications.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bushings - Tension category on the Small Parts & Bearings online store.
Inside Diameter (ID) Outside Diameter (OD) Length (L) ID after insertion OD before insertion Slot Style Indicative
Tension Bushings - 12.7x19.05x19.05 mm - Steel Bushing
Inside Diameter (ID)
12.700
mm

(Equiv. 0.5 in.)
Outside Diameter (OD)
19.050
mm

(Equiv. 0.75 in.)
Length (L)
19.050
mm

(Equiv. 0.75 in.)
ID after insertion
12.78 - 12.88
mm
OD before insertion
19.56 - 20.07
mm
Slot Style
Straight
Tension Bushings - 12.7x19.05x19.05 mm - Steel
Material: Steel
Part Number: VT100RS (Each)
9 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$44.59 AUD
$53.51 AUD $44.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 9 available can be backordered.
Inside Diameter (ID) Outside Diameter (OD) Length (L) ID after insertion Indicative
Tension Bushings - 12.7x19.05x19.05 mm - Steel Bushing
Inside Diameter (ID)
12.700
mm

(Equiv. 0.5 in.)
Outside Diameter (OD)
19.050
mm

(Equiv. 0.75 in.)
Length (L)
19.050
mm

(Equiv. 0.75 in.)
ID after insertion
12.78 - 12.88
mm
Tension Bushings - 12.7x19.05x19.05 mm - Steel
Material: Steel    OD before insertion: 19.56 - 20.07 mm    Slot Style: Straight
Part Number: VT100RS (Each)
9 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$44.59 AUD
$53.51 AUD $44.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

9 Available Now. Backorder if more than 9.
Tension Bushings - 12.7x19.05x25.4 mm - Carbon Steel Bushing
Inside Diameter (ID)
12.700
mm

(Equiv. 0.5 in.)
Outside Diameter (OD)
19.050
mm

(Equiv. 0.75 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
ID after insertion
12.78 - 12.88
mm
OD before insertion
19.56 - 20.07
mm
Tension Bushings - 12.7x19.05x25.4 mm
Material: Carbon Steel
Part Number: VT102RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$54.68 AUD
$65.62 AUD $54.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 12.7x19.05x25.4 mm - Carbon Steel Bushing
Inside Diameter (ID)
12.700
mm

(Equiv. 0.5 in.)
Outside Diameter (OD)
19.050
mm

(Equiv. 0.75 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
ID after insertion
12.78 - 12.88
mm
Tension Bushings - 12.7x19.05x25.4 mm
Material: Carbon Steel    OD before insertion: 19.56 - 20.07 mm
Part Number: VT102RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$54.68 AUD
$65.62 AUD $54.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 19.05x25.4x19.05 mm - Steel Bushing
Inside Diameter (ID)
19.050
mm

(Equiv. 0.75 in.)
Outside Diameter (OD)
25.400
mm

(Equiv. 1 in.)
Length (L)
19.050
mm

(Equiv. 0.75 in.)
ID after insertion
19.13 - 19.23
mm
OD before insertion
25.91 - 26.42
mm
Slot Style
Wavy
Tension Bushings - 19.05x25.4x19.05 mm - Steel
Material: Steel
Part Number: VT104RS (Each)
10 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$22.95 AUD
$27.55 AUD $22.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Tension Bushings - 19.05x25.4x19.05 mm - Steel Bushing
Inside Diameter (ID)
19.050
mm

(Equiv. 0.75 in.)
Outside Diameter (OD)
25.400
mm

(Equiv. 1 in.)
Length (L)
19.050
mm

(Equiv. 0.75 in.)
ID after insertion
19.13 - 19.23
mm
Tension Bushings - 19.05x25.4x19.05 mm - Steel
Material: Steel    OD before insertion: 25.91 - 26.42 mm    Slot Style: Wavy
Part Number: VT104RS (Each)
10 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$22.95 AUD
$27.55 AUD $22.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

10 Available Now. Backorder if more than 10.
Tension Bushings - 19.05x25.4x25.4 mm - Carbon Steel Bushing
Inside Diameter (ID)
19.050
mm

(Equiv. 0.75 in.)
Outside Diameter (OD)
25.400
mm

(Equiv. 1 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
ID after insertion
19.13 - 19.23
mm
OD before insertion
25.91 - 26.42
mm
Tension Bushings - 19.05x25.4x25.4 mm
Material: Carbon Steel
Part Number: VT106RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$30.23 AUD
$36.27 AUD $30.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 19.05x25.4x25.4 mm - Carbon Steel Bushing
Inside Diameter (ID)
19.050
mm

(Equiv. 0.75 in.)
Outside Diameter (OD)
25.400
mm

(Equiv. 1 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
ID after insertion
19.13 - 19.23
mm
Tension Bushings - 19.05x25.4x25.4 mm
Material: Carbon Steel    OD before insertion: 25.91 - 26.42 mm
Part Number: VT106RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$30.23 AUD
$36.27 AUD $30.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 25.4x31.75x12.7 mm - Steel Bushing
Inside Diameter (ID)
25.400
mm

(Equiv. 1 in.)
Outside Diameter (OD)
31.750
mm

(Equiv. 1.25 in.)
Length (L)
12.700
mm

(Equiv. 0.5 in.)
ID after insertion
25.48 - 25.58
mm
OD before insertion
32.26 - 32.77
mm
Tension Bushings - 25.4x31.75x12.7 mm - Steel
Material: Steel
Part Number: VT108RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$22.77 AUD
$22.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 25.4x31.75x12.7 mm - Steel Bushing
Inside Diameter (ID)
25.400
mm

(Equiv. 1 in.)
Outside Diameter (OD)
31.750
mm

(Equiv. 1.25 in.)
Length (L)
12.700
mm

(Equiv. 0.5 in.)
ID after insertion
25.48 - 25.58
mm
Tension Bushings - 25.4x31.75x12.7 mm - Steel
Material: Steel    OD before insertion: 32.26 - 32.77 mm
Part Number: VT108RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$22.77 AUD
$22.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 25.4x31.75x25.4 mm - Steel Bushing
Inside Diameter (ID)
25.400
mm

(Equiv. 1 in.)
Outside Diameter (OD)
31.750
mm

(Equiv. 1.25 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
ID after insertion
25.48 - 25.58
mm
OD before insertion
32.26 - 32.77
mm
Tension Bushings - 25.4x31.75x25.4 mm - Steel
Material: Steel
Part Number: VT110RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$36.05 AUD
$36.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 25.4x31.75x25.4 mm - Steel Bushing
Inside Diameter (ID)
25.400
mm

(Equiv. 1 in.)
Outside Diameter (OD)
31.750
mm

(Equiv. 1.25 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
ID after insertion
25.48 - 25.58
mm
Tension Bushings - 25.4x31.75x25.4 mm - Steel
Material: Steel    OD before insertion: 32.26 - 32.77 mm
Part Number: VT110RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$36.05 AUD
$36.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 31.75x38.1x25.4 mm - Carbon Steel Bushing
Inside Diameter (ID)
31.750
mm

(Equiv. 1.25 in.)
Outside Diameter (OD)
38.100
mm

(Equiv. 1.5 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
ID after insertion
31.83 - 31.93
mm
OD before insertion
38.61 - 39.12
mm
Slot Style
Wavy
Tension Bushings - 31.75x38.1x25.4 mm
Material: Carbon Steel
Part Number: VT112RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$39.95 AUD
$47.95 AUD $39.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 31.75x38.1x25.4 mm - Carbon Steel Bushing
Inside Diameter (ID)
31.750
mm

(Equiv. 1.25 in.)
Outside Diameter (OD)
38.100
mm

(Equiv. 1.5 in.)
Length (L)
25.400
mm

(Equiv. 1 in.)
ID after insertion
31.83 - 31.93
mm
Tension Bushings - 31.75x38.1x25.4 mm
Material: Carbon Steel    OD before insertion: 38.61 - 39.12 mm    Slot Style: Wavy
Part Number: VT112RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$39.95 AUD
$47.95 AUD $39.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 31.75x38.1x38.1 mm - Steel Bushing
Inside Diameter (ID)
31.750
mm

(Equiv. 1.25 in.)
Outside Diameter (OD)
38.100
mm

(Equiv. 1.5 in.)
Length (L)
38.100
mm

(Equiv. 1.5 in.)
ID after insertion
31.83 - 31.93
mm
OD before insertion
38.61 - 39.12
mm
Tension Bushings - 31.75x38.1x38.1 mm - Steel
Material: Steel
Part Number: VT114RS (Each)
10 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$48.68 AUD
$58.42 AUD $48.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 10 available can be backordered.
Tension Bushings - 31.75x38.1x38.1 mm - Steel Bushing
Inside Diameter (ID)
31.750
mm

(Equiv. 1.25 in.)
Outside Diameter (OD)
38.100
mm

(Equiv. 1.5 in.)
Length (L)
38.100
mm

(Equiv. 1.5 in.)
ID after insertion
31.83 - 31.93
mm
Tension Bushings - 31.75x38.1x38.1 mm - Steel
Material: Steel    OD before insertion: 38.61 - 39.12 mm
Part Number: VT114RS (Each)
10 Available Now | Further orders can be expected around Tue, Feb 03, 2026
$48.68 AUD
$58.42 AUD $48.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

10 Available Now. Backorder if more than 10.
Tension Bushings - 38.1x44.45x19.05 mm - Carbon Steel Bushing
Inside Diameter (ID)
38.100
mm

(Equiv. 1.5 in.)
Outside Diameter (OD)
44.450
mm

(Equiv. 1.75 in.)
Length (L)
19.050
mm

(Equiv. 0.75 in.)
ID after insertion
38.18 - 38.28
mm
OD before insertion
44.96 - 45.47
mm
Tension Bushings - 38.1x44.45x19.05 mm
Material: Carbon Steel
Part Number: VT116RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$28.68 AUD
$34.42 AUD $28.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 38.1x44.45x19.05 mm - Carbon Steel Bushing
Inside Diameter (ID)
38.100
mm

(Equiv. 1.5 in.)
Outside Diameter (OD)
44.450
mm

(Equiv. 1.75 in.)
Length (L)
19.050
mm

(Equiv. 0.75 in.)
ID after insertion
38.18 - 38.28
mm
Tension Bushings - 38.1x44.45x19.05 mm
Material: Carbon Steel    OD before insertion: 44.96 - 45.47 mm
Part Number: VT116RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$28.68 AUD
$34.42 AUD $28.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 38.1x50.8x50.8 mm - Carbon Steel Bushing
Inside Diameter (ID)
38.100
mm

(Equiv. 1.5 in.)
Outside Diameter (OD)
50.800
mm

(Equiv. 2 in.)
Length (L)
50.800
mm

(Equiv. 2 in.)
ID after insertion
38.20 - 38.40
mm
OD before insertion
51.31 - 51.82
mm
Tension Bushings - 38.1x50.8x50.8 mm
Material: Carbon Steel
Part Number: VT120RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$134.05 AUD
$160.85 AUD $134.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tension Bushings - 38.1x50.8x50.8 mm - Carbon Steel Bushing
Inside Diameter (ID)
38.100
mm

(Equiv. 1.5 in.)
Outside Diameter (OD)
50.800
mm

(Equiv. 2 in.)
Length (L)
50.800
mm

(Equiv. 2 in.)
ID after insertion
38.20 - 38.40
mm
Tension Bushings - 38.1x50.8x50.8 mm
Material: Carbon Steel    OD before insertion: 51.31 - 51.82 mm
Part Number: VT120RS (Each)
Out of Stock | Backorder Now | Orders can be expected around Tue, Feb 03, 2026
$134.05 AUD
$160.85 AUD $134.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
