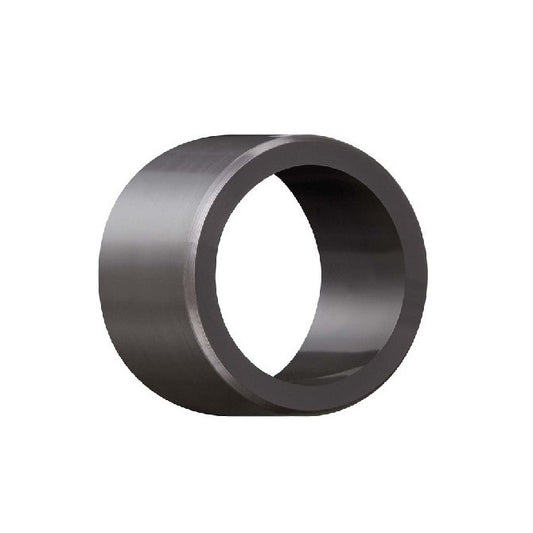

Collection: Bushes - Unflanged - Plastic - Iglidur H370

1 Item Available
  • Underwater. High Temp. Chemical Resistant. High mechanical loading and wear resistance.
  • Specific Gravity 1.60 g/cm3.
  • Operating Temp 240 C short term / 200 C long term.
  • Tensile Strength at 20 oC = 135 Mpa.
  • Hardness 82 Shore D (DIN53505).
  • Bushing bore tolerance is F10 after a H7 press fit. Tolerances listed in the tables are after assembly using H7 recommended fit.
Additional resources:
Bushes PDF Catalogue
Bronze Unflanged Bushes
Plastic Flanged Bushes
Nom. ID (d) Nom. OD (D) Length (s) Indicative
25.000
mm
+ 0.020 / + 0.104
28.000
mm
20.000
mm
+ 0.000 / - 0.330

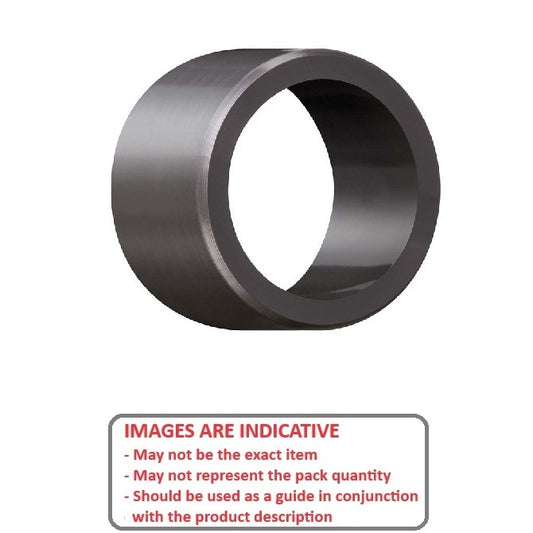

1133197 | BP0250-0280-0200-PH3 (3 Pcs) --- Unflanged Bushes - 25 mm x 28 mm x 20 mm
Material: Iglidur H370
Part Number: BP0250-0280-0200-PH3 (3 Pcs) Unflanged Bushes - 25 mm x 28 mm x 20 mm
1 pack (3 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
Regular price $8.00 AUD
Regular price $13.20 AUD Sale price $8.00 AUD
Per 3
Nom. ID (d) Nom. OD (D) Length (s) Indicative
25.000
mm
+ 0.020 / + 0.104
28.000
mm
20.000
mm
+ 0.000 / - 0.330
1133197 | BP0250-0280-0200-PH3 (3 Pcs) --- Unflanged Bushes - 25 mm x 28 mm x 20 mm
Material: Iglidur H370
Part Number: BP0250-0280-0200-PH3 (3 Pcs) Unflanged Bushes - 25 mm x 28 mm x 20 mm
1 pack (3 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
Regular price $8.00 AUD
Regular price $13.20 AUD Sale price $8.00 AUD
Per 3
