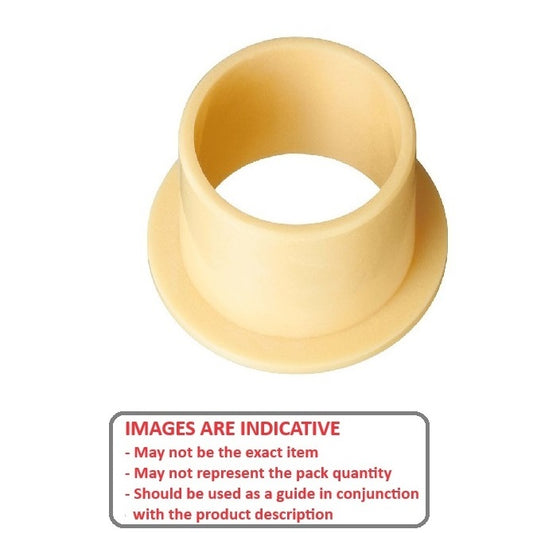

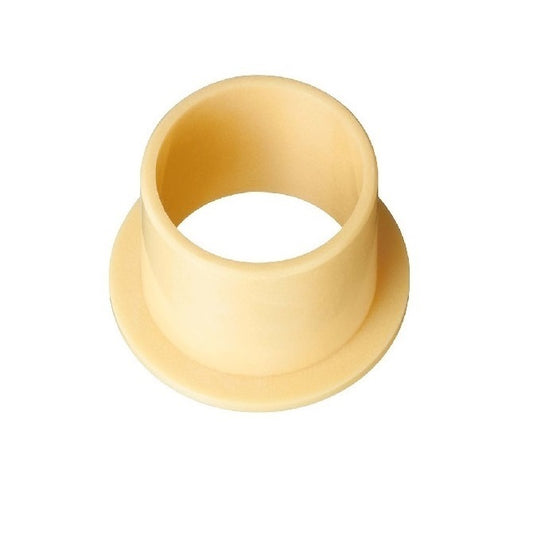

Bushes - Flanged - Plastic - Iglidur W300

2 Products in this selection
  • Low co-efficient of friction. High wear resistance. Chemical resistant.
  • Specific Gravity 1.24 g/cm3.
  • Operating Temp 180 C short term / 90 C long term.
  • Tensile Strength at 20 oC = 125 Mpa.
  • Hardness 77 Shore D (DIN53505).
  • Bushing bore tolerance is E10 after a H7 press fit. Tolerances listed in the tables are after assembly using H7 recommended fit.
Additional resources:
Bushes PDF Catalogue
Bronze Flanged Bushes
Plastic Unflanged Bushes
Nom. ID (d) Nom. OD (D) Length (s) Flange OD (D1) Flange Thickness (s1) Indicative
7.938
mm
+ 0.025 / + 0.083 		9.525
mm 		6.350
mm
+ 0.000 / - 0.220 		14.28
mm 		0.81
mm 		1078064 | BF0079-0095-0064-PW (7 Pcs) --- Flanged Bushes - 7.938 mm x 9.525 mm x 6.35 mm
Material: Iglidur W300
Part Number: BF0079-0095-0064-PW (7 Pcs) Flanged Bushes - 7.938 mm x 9.525 mm x 6.35 mm
1 pack (7 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$10.50 AUD
$17.32 AUD $10.50 AUD
Per 7
Nom. ID (d) Nom. OD (D) Length (s) Flange OD (D1) Indicative
7.938
mm
+ 0.025 / + 0.083 		9.525
mm 		6.350
mm
+ 0.000 / - 0.220 		14.28
mm 		1078064 | BF0079-0095-0064-PW (7 Pcs) --- Flanged Bushes - 7.938 mm x 9.525 mm x 6.35 mm
Material: Iglidur W300    Flange Thickness (s1): 0.81 mm
Part Number: BF0079-0095-0064-PW (7 Pcs) Flanged Bushes - 7.938 mm x 9.525 mm x 6.35 mm
1 pack (7 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$10.50 AUD
$17.32 AUD $10.50 AUD
Per 7
15.875
mm
+ 0.032 / + 0.102 		18.256
mm 		7.144
mm
+ 0.000 / - 0.220 		23.80
mm 		1.17
mm 		1111483 | BF0159-0183-0071-PW --- Flanged Bushes - 15.875 mm x 18.256 mm x 7.144 mm
Material: Iglidur W300
Part Number: BF0159-0183-0071-PW Flanged Bushes - 15.875 mm x 18.256 mm x 7.144 mm
1 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$1.50 AUD
$2.48 AUD $1.50 AUD
Each
15.875
mm
+ 0.032 / + 0.102 		18.256
mm 		7.144
mm
+ 0.000 / - 0.220 		23.80
mm 		1111483 | BF0159-0183-0071-PW --- Flanged Bushes - 15.875 mm x 18.256 mm x 7.144 mm
Material: Iglidur W300    Flange Thickness (s1): 1.17 mm
Part Number: BF0159-0183-0071-PW Flanged Bushes - 15.875 mm x 18.256 mm x 7.144 mm
1 Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$1.50 AUD
$2.48 AUD $1.50 AUD
Each
