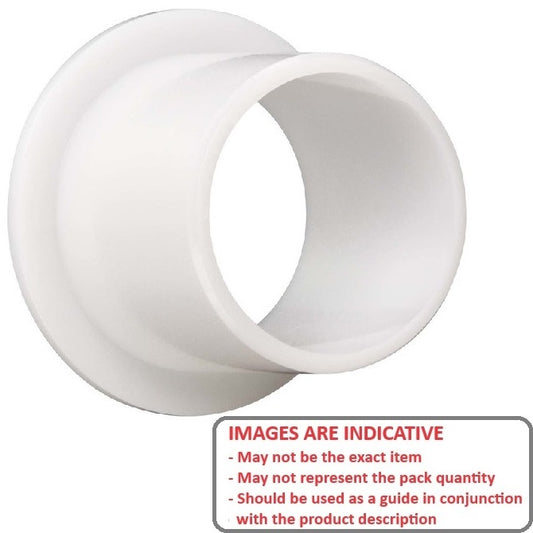

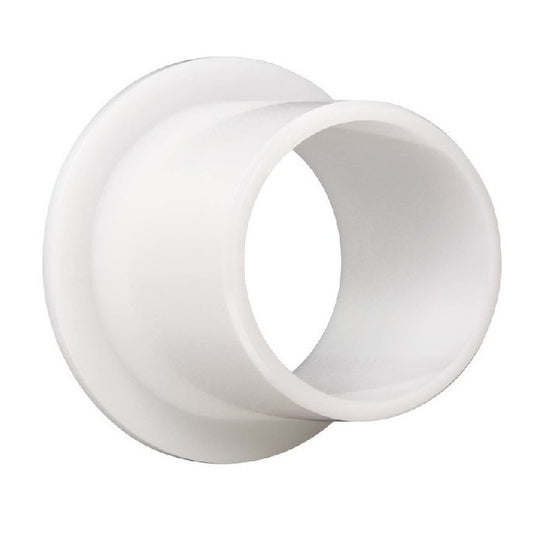

Bushes - Flanged - Plastic - Iglidur A200

1 Item Available
  • Food grade for low speeds and direct contact with food and pharmaceuticals.
  • Specific Gravity 1.14 g/cm3.
  • Operating Temp 170 C short term / 80 C long term.
  • Tensile Strength at 20 oC = 116 Mpa.
  • Hardness 81 Shore D (DIN53505).
  • Bushing bore tolerance is D11 after a H7 press fit. Tolerances listed in the tables are after assembly using H7 recommended fit.
Additional resources:
Bushes PDF Catalogue
Bronze Flanged Bushes
Plastic Unflanged Bushes
Nom. ID (d) Nom. OD (D) Length (s) Flange OD (D1) Flange Thickness (s1) Indicative
22.000
mm
+ 0.065 / + 0.195 		28.000
mm 		20.000
mm
+ 0.000 / - 0.330 		34.00
mm 		3.00
mm 		1128215 | BF0220-0280-0200-PA20 (5 Pcs) --- Flanged Bushes - 22 mm x 28 mm x 20 mm
Material: Iglidur A200
Part Number: BF0220-0280-0200-PA20 (5 Pcs) Flanged Bushes - 22 mm x 28 mm x 20 mm
6 units (30 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 5
Nom. ID (d) Nom. OD (D) Length (s) Flange OD (D1) Indicative
22.000
mm
+ 0.065 / + 0.195 		28.000
mm 		20.000
mm
+ 0.000 / - 0.330 		34.00
mm 		1128215 | BF0220-0280-0200-PA20 (5 Pcs) --- Flanged Bushes - 22 mm x 28 mm x 20 mm
Material: Iglidur A200    Flange Thickness (s1): 3.00 mm
Part Number: BF0220-0280-0200-PA20 (5 Pcs) Flanged Bushes - 22 mm x 28 mm x 20 mm
6 units (30 pcs) Available | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$13.20 AUD $8.00 AUD
Per 5
