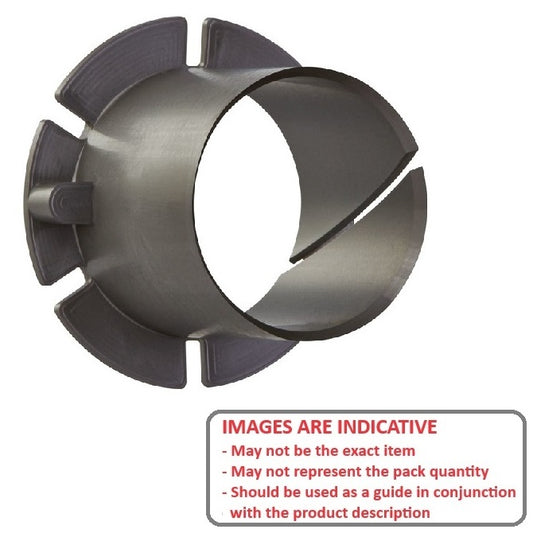

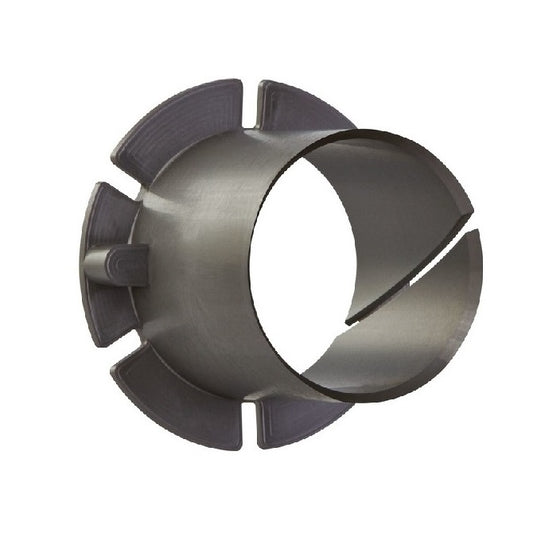

Bushes - Clip - Bevelled Edge

1 Item Available
  • M250 Polymer minus 40 Deg C to 80 Deg C (minus 40 Deg F to 176 Deg F). Used as a light duty split bearing.
  • Low clearance. Maintenance free. Economical. High Precision. High wear resistance.
  • Light weight
Additional resources:
Bushes PDF Catalogue
A more concise listing may be found on the Smallparts store at Bushes - Clip - Bevelled Edge. Smallparts promote the most popular MBA products.
Nom. ID (d) Nom. OD (D) Overall Length Flange Dia (D1) Flange Width (S1) Indicative
9.525
mm 		11.100
mm 		9.525
mm 		15.081
mm 		0.76
mm 		1086982 | BF0095-0111-0095-PCB (10 Pcs) --- Clip Bushes - 9.525x11.1x9.525 mm - Plastic
Material: Plastic    Min Housing Bore: 10.831 mm    Max Housing Bore: 11.100 mm    Min Shaft Size: 9.500 mm    Max Shaft Size: 9.525 mm    Sheet Metal Thickness: 1.00
Part Number: BF0095-0111-0095-PCB (10 Pcs) Clip Bushes - 9.525x11.1x9.525 mm - Plastic
11 units (110 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Nom. ID (d) Nom. OD (D) Overall Length Flange Dia (D1) Indicative
9.525
mm 		11.100
mm 		9.525
mm 		15.081
mm 		1086982 | BF0095-0111-0095-PCB (10 Pcs) --- Clip Bushes - 9.525x11.1x9.525 mm - Plastic
Material: Plastic    Flange Width (S1): 0.76 mm    Min Housing Bore: 10.831 mm    Max Housing Bore: 11.100 mm    Min Shaft Size: 9.500 mm    Max Shaft Size: 9.525 mm    Sheet Metal Thickness: 1.00
Part Number: BF0095-0111-0095-PCB (10 Pcs) Clip Bushes - 9.525x11.1x9.525 mm - Plastic
11 units (110 pcs) Available Immediately | Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
