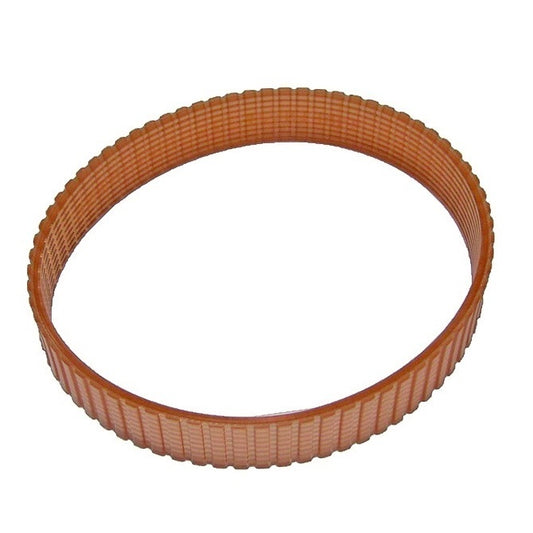

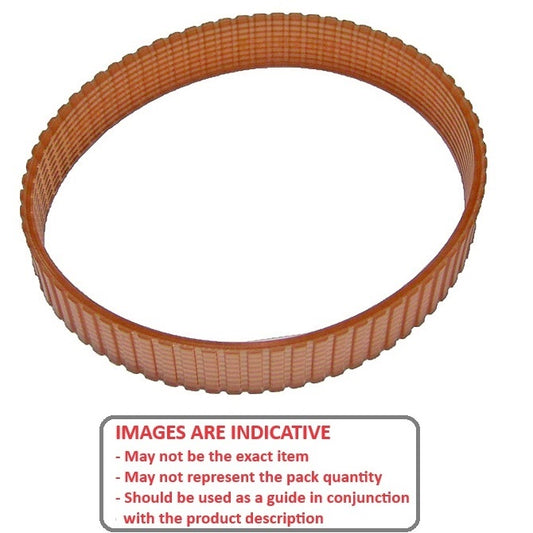

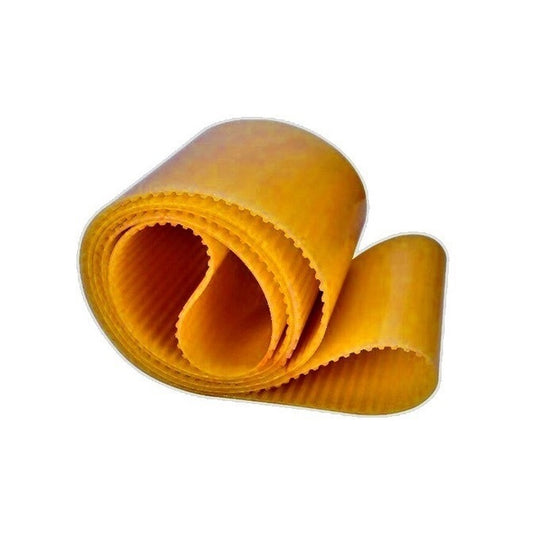

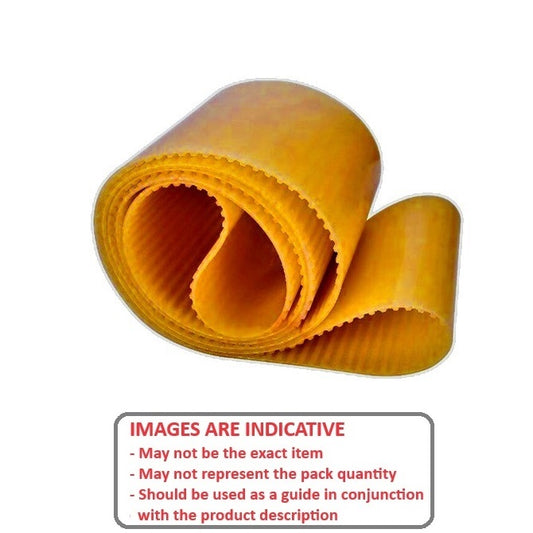

Collection: Belts - Timing 5.000mm Pitch - AT5 - 20mm Wide

A selection of 20mm Wide AT5 Timing 5.000mm Pitch Belts. AT Synchroflex Generation III Series Metric Timing Belts.

• Timing belts combined with timing pulleys, provide power transmission without slippage.
• Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
• Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
• Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
• Tooth Length (T) - 2.5mm
• Tooth Height (H) - 1.2mm
• Belt Height (W) - 2.7mm - Corner Radii ( r )- 0.6mm
• Pitch (P) - 5mm
