Collection: Belts - Inch Timing - 5.080mm Pitch XL - 9.5mm Wide - Single Sided

Belts (With Images)

Inch Timing

5.080mm Pitch XL

9.5mm Wide

Double Sided
Single Sided

218 Products in this selection

Standard Series Timing Belts 5.080mm or 0.200 inch pitch.
Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
Tooth Length (T) - 1.40mm.
Tooth Height (H) - 1.30mm.
Belt Height (W) - 2.30mm - Corner Radii ( r ) - 0.40mm.
Pitch (P) - 5.080mm (0.200 inch)

Additional resources:
Timing Belts Catalogue PDF
Timing Pulleys Catalogue

A more concise listing may be found on the Smallparts store at Belts - Inch Timing - 5.080mm Pitch XL - 9.5mm Wide - Single Sided. Smallparts promote the most popular MBA products.

Teeth	Length	Width	Reinforcement	Appearance
Teeth 21	Length 106.68 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0021-0095-NFB Inch Timing Belts - 21 tooth - 106.68x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 5 Available Immediately \| Further orders can be expected around Wed, Jun 25, 2025 Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per Each

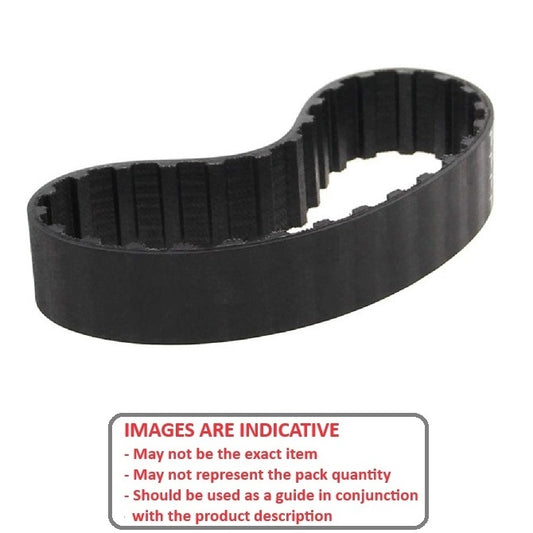

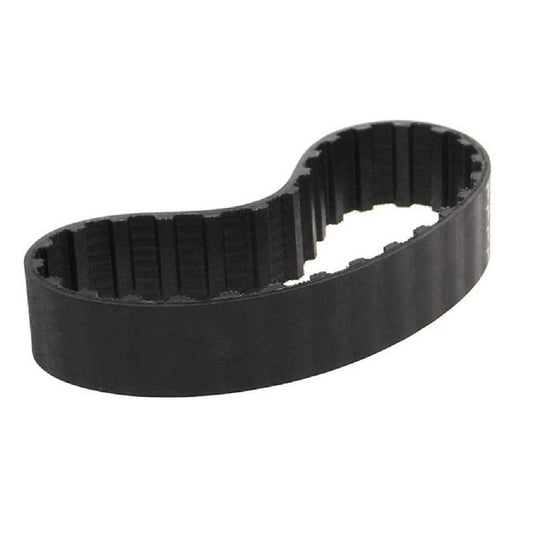

Teeth	Length	Width	Indicative Image
Teeth 21	Length 106.68 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0021-0095-NFB Inch Timing Belts - 21 tooth - 106.68x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 5 Available Immediately \| Further orders can be expected around Wed, Jun 25, 2025 Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0021-0095-NFB --- Inch Timing Belts - 21 tooth - 106.68x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Sale B-XL-0021-0095-NFB --- Inch Timing Belts - 21 tooth - 106.68x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $12.05 AUD Regular price ~~$14.45 AUD~~ Sale price $12.05 AUD Unit price per 5 Available Now Sale
Teeth 25	Length 127 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0025-0095-NFB Inch Timing Belts - 25 tooth - 127x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 2 Available Immediately \| Further orders can be expected around Wed, Jun 25, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each
Teeth 25	Length 127 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0025-0095-NFB Inch Timing Belts - 25 tooth - 127x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 2 Available Immediately \| Further orders can be expected around Wed, Jun 25, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0025-0095-NFB --- Inch Timing Belts - 25 tooth - 127x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0025-0095-NFB --- Inch Timing Belts - 25 tooth - 127x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per 2 Available Now
Teeth 28	Length 142.24 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0028-0095-NFB Inch Timing Belts - 28 tooth - 142.24x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each
Teeth 28	Length 142.24 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0028-0095-NFB Inch Timing Belts - 28 tooth - 142.24x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0028-0095-NFB --- Inch Timing Belts - 28 tooth - 142.24x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0028-0095-NFB --- Inch Timing Belts - 28 tooth - 142.24x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Out of stock! Backorder Now
Teeth 27	Length 137.16 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0027-0095-NFB Inch Timing Belts - 27 tooth - 137.16x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 1 Available Immediately \| Further orders can be expected around Wed, Jun 25, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each
Teeth 27	Length 137.16 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0027-0095-NFB Inch Timing Belts - 27 tooth - 137.16x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 1 Available Immediately \| Further orders can be expected around Wed, Jun 25, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0027-0095-NFB --- Inch Timing Belts - 27 tooth - 137.16x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0027-0095-NFB --- Inch Timing Belts - 27 tooth - 137.16x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per 1 Available Now
Teeth 29	Length 147.32 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0029-0095-NFB Inch Timing Belts - 29 tooth - 147.32x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each
Teeth 29	Length 147.32 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0029-0095-NFB Inch Timing Belts - 29 tooth - 147.32x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 25, 2025 Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0029-0095-NFB --- Inch Timing Belts - 29 tooth - 147.32x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0029-0095-NFB --- Inch Timing Belts - 29 tooth - 147.32x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $13.59 AUD Regular price Sale price $13.59 AUD Unit price per Out of stock! Backorder Now
Teeth 30	Length 152.4 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0030-0095-NFB Inch Timing Belts - 30 tooth - 152.4x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 30	Length 152.4 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0030-0095-NFB Inch Timing Belts - 30 tooth - 152.4x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0030-0095-NFB --- Inch Timing Belts - 30 tooth - 152.4x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0030-0095-NFB --- Inch Timing Belts - 30 tooth - 152.4x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 31	Length 157.48 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0031-0095-NFB Inch Timing Belts - 31 tooth - 157.48x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 31	Length 157.48 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0031-0095-NFB Inch Timing Belts - 31 tooth - 157.48x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0031-0095-NFB --- Inch Timing Belts - 31 tooth - 157.48x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0031-0095-NFB --- Inch Timing Belts - 31 tooth - 157.48x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 32	Length 162.56 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0032-0095-NFB Inch Timing Belts - 32 tooth - 162.56x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 32	Length 162.56 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0032-0095-NFB Inch Timing Belts - 32 tooth - 162.56x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0032-0095-NFB --- Inch Timing Belts - 32 tooth - 162.56x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0032-0095-NFB --- Inch Timing Belts - 32 tooth - 162.56x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 34	Length 172.72 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0034-0095-NFB Inch Timing Belts - 34 tooth - 172.72x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 34	Length 172.72 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0034-0095-NFB Inch Timing Belts - 34 tooth - 172.72x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0034-0095-NFB --- Inch Timing Belts - 34 tooth - 172.72x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0034-0095-NFB --- Inch Timing Belts - 34 tooth - 172.72x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 33	Length 167.64 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0033-0095-NFB Inch Timing Belts - 33 tooth - 167.64x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 1 Available Immediately \| Further orders can be expected around Wed, Jun 25, 2025 Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Each
Teeth 33	Length 167.64 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0033-0095-NFB Inch Timing Belts - 33 tooth - 167.64x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 1 Available Immediately \| Further orders can be expected around Wed, Jun 25, 2025 Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0033-0095-NFB --- Inch Timing Belts - 33 tooth - 167.64x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0033-0095-NFB --- Inch Timing Belts - 33 tooth - 167.64x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $13.86 AUD Regular price Sale price $13.86 AUD Unit price per 1 Available Now
Teeth 35	Length 177.8 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0035-0095-NFB Inch Timing Belts - 35 tooth - 177.8x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 35	Length 177.8 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0035-0095-NFB Inch Timing Belts - 35 tooth - 177.8x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0035-0095-NFB --- Inch Timing Belts - 35 tooth - 177.8x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0035-0095-NFB --- Inch Timing Belts - 35 tooth - 177.8x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 34	Length 172.72 mm	Width 9.5 mm	Reinforcement Kevlar	Appearance Black
Material: Polyurethane with Kevlar Cords Breaking Strength: 1734 N Min Temperature (C): -18 Deg C Max Temperature (C): 82 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0034-0095-PKB Inch Timing Belts - 34 tooth - 172.72x9.5 mm - Polyurethane with Kevlar Cords 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $15.23 AUD Regular price ~~$18.27 AUD~~ Sale price $15.23 AUD Unit price per Each
Teeth 34	Length 172.72 mm	Width 9.5 mm
Material: Polyurethane with Kevlar Cords Reinforcement: Kevlar Appearance: Black Breaking Strength: 1734 N Min Temperature (C): -18 Deg C Max Temperature (C): 82 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0034-0095-PKB Inch Timing Belts - 34 tooth - 172.72x9.5 mm - Polyurethane with Kevlar Cords 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $15.23 AUD Regular price ~~$18.27 AUD~~ Sale price $15.23 AUD Unit price per Each
B-XL-0034-0095-PKB --- Inch Timing Belts - 34 tooth - 172.72x9.5 mm - Polyurethane with Kevlar Cords Sale B-XL-0034-0095-PKB --- Inch Timing Belts - 34 tooth - 172.72x9.5 mm - Polyurethane with Kevlar Cords Regular price $15.23 AUD Regular price ~~$18.27 AUD~~ Sale price $15.23 AUD Unit price per 1 Available Now Sale
Teeth 36	Length 182.88 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0036-0095-NFB Inch Timing Belts - 36 tooth - 182.88x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 36	Length 182.88 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0036-0095-NFB Inch Timing Belts - 36 tooth - 182.88x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0036-0095-NFB --- Inch Timing Belts - 36 tooth - 182.88x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0036-0095-NFB --- Inch Timing Belts - 36 tooth - 182.88x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 35	Length 177.8 mm	Width 9.5 mm	Reinforcement Polyester	Appearance Black
Material: Polyurethane with Polyester Cords Breaking Strength: 1067 N Min Temperature (C): -18 Deg C Max Temperature (C): 82 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0035-0095-PPB Inch Timing Belts - 35 tooth - 177.8x9.5 mm - Polyurethane with Polyester Cords 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Each
Teeth 35	Length 177.8 mm	Width 9.5 mm
Material: Polyurethane with Polyester Cords Reinforcement: Polyester Appearance: Black Breaking Strength: 1067 N Min Temperature (C): -18 Deg C Max Temperature (C): 82 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0035-0095-PPB Inch Timing Belts - 35 tooth - 177.8x9.5 mm - Polyurethane with Polyester Cords 1 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Each
B-XL-0035-0095-PPB --- Inch Timing Belts - 35 tooth - 177.8x9.5 mm - Polyurethane with Polyester Cords Sale B-XL-0035-0095-PPB --- Inch Timing Belts - 35 tooth - 177.8x9.5 mm - Polyurethane with Polyester Cords Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per 1 Available Now Sale
Teeth 37	Length 187.96 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0037-0095-NFB Inch Timing Belts - 37 tooth - 187.96x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 37	Length 187.96 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0037-0095-NFB Inch Timing Belts - 37 tooth - 187.96x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0037-0095-NFB --- Inch Timing Belts - 37 tooth - 187.96x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0037-0095-NFB --- Inch Timing Belts - 37 tooth - 187.96x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 38	Length 193.04 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0038-0095-NFB Inch Timing Belts - 38 tooth - 193.04x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 2 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 38	Length 193.04 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0038-0095-NFB Inch Timing Belts - 38 tooth - 193.04x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 2 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0038-0095-NFB --- Inch Timing Belts - 38 tooth - 193.04x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0038-0095-NFB --- Inch Timing Belts - 38 tooth - 193.04x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 2 Available Now
Teeth 39	Length 198.12 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0039-0095-NFB Inch Timing Belts - 39 tooth - 198.12x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 4 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 39	Length 198.12 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0039-0095-NFB Inch Timing Belts - 39 tooth - 198.12x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 4 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0039-0095-NFB --- Inch Timing Belts - 39 tooth - 198.12x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0039-0095-NFB --- Inch Timing Belts - 39 tooth - 198.12x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 4 Available Now
Teeth 40	Length 203.2 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0040-0095-NFB Inch Timing Belts - 40 tooth - 203.2x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 1 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 40	Length 203.2 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0040-0095-NFB Inch Timing Belts - 40 tooth - 203.2x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 1 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0040-0095-NFB --- Inch Timing Belts - 40 tooth - 203.2x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0040-0095-NFB --- Inch Timing Belts - 40 tooth - 203.2x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 1 Available Now
Teeth 41	Length 208.28 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0041-0095-NFB Inch Timing Belts - 41 tooth - 208.28x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 4 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 41	Length 208.28 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0041-0095-NFB Inch Timing Belts - 41 tooth - 208.28x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords 4 Available Immediately \| Further orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0041-0095-NFB --- Inch Timing Belts - 41 tooth - 208.28x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0041-0095-NFB --- Inch Timing Belts - 41 tooth - 208.28x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per 4 Available Now
Teeth 42	Length 213.36 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0042-0095-NFB Inch Timing Belts - 42 tooth - 213.36x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 42	Length 213.36 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0042-0095-NFB Inch Timing Belts - 42 tooth - 213.36x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0042-0095-NFB --- Inch Timing Belts - 42 tooth - 213.36x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0042-0095-NFB --- Inch Timing Belts - 42 tooth - 213.36x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 43	Length 218.44 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0043-0095-NFB Inch Timing Belts - 43 tooth - 218.44x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 43	Length 218.44 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0043-0095-NFB Inch Timing Belts - 43 tooth - 218.44x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0043-0095-NFB --- Inch Timing Belts - 43 tooth - 218.44x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0043-0095-NFB --- Inch Timing Belts - 43 tooth - 218.44x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 44	Length 223.52 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0044-0095-NFB Inch Timing Belts - 44 tooth - 223.52x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 44	Length 223.52 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0044-0095-NFB Inch Timing Belts - 44 tooth - 223.52x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0044-0095-NFB --- Inch Timing Belts - 44 tooth - 223.52x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0044-0095-NFB --- Inch Timing Belts - 44 tooth - 223.52x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 45	Length 228.6 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0045-0095-NFB Inch Timing Belts - 45 tooth - 228.6x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 45	Length 228.6 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0045-0095-NFB Inch Timing Belts - 45 tooth - 228.6x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0045-0095-NFB --- Inch Timing Belts - 45 tooth - 228.6x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0045-0095-NFB --- Inch Timing Belts - 45 tooth - 228.6x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
Teeth 46	Length 233.68 mm	Width 9.5 mm	Reinforcement Fibreglass	Appearance Black
Material: Nylon Covered Neoprene with Fibreglass Cords Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0046-0095-NFB Inch Timing Belts - 46 tooth - 233.68x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each
Teeth 46	Length 233.68 mm	Width 9.5 mm
Material: Nylon Covered Neoprene with Fibreglass Cords Reinforcement: Fibreglass Appearance: Black Breaking Strength: 1505 N Min Temperature (C): -34 Deg C Max Temperature (C): 85 Deg C Tooth Angle (A): 50 °
Part Number: B-XL-0046-0095-NFB Inch Timing Belts - 46 tooth - 233.68x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jun 11, 2025 Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Each View the product page first if you are unsure.
B-XL-0046-0095-NFB --- Inch Timing Belts - 46 tooth - 233.68x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords B-XL-0046-0095-NFB --- Inch Timing Belts - 46 tooth - 233.68x9.5 mm - Nylon Covered Neoprene with Fibreglass Cords Regular price $6.14 AUD Regular price Sale price $6.14 AUD Unit price per Out of stock! Backorder Now
