Bearings - Thrust Ball - Grooved - ZRO2 Ceramic

6 Products in this selection

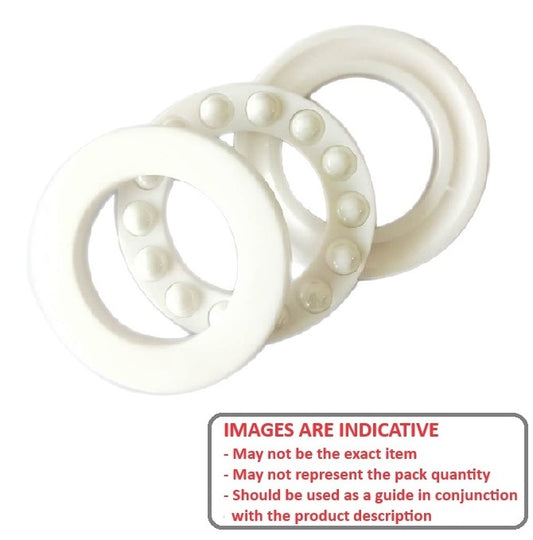

  • 3 Piece Thrust Bearings Open Type. Excellent performance in electrical and magnetism sensitive applications. Full ceramic silicon nitride.
  • These bearings are designed so that when one ring turns, the other remains stationary.
  • Some have a larger bore on one side allowing a shaft with no steps to pass through. Others have identical bores on each race, requiring a stepped shaft.
  • Some have a reduced OD on one race allowing seating into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
  • Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.
Additional resources:
Thrust Bearings PDF Catalogue
Shafting
A more concise listing may be found on the Smallparts store at Bearings - Thrust Ball - Grooved - ZRO2 Ceramic. Smallparts promote the most popular MBA products.
Shaft Diameter (A) OD (D1) Thickness (T) Bore (d2) OD (D2) Dynamic Load Capacity Indicative
4.000
mm 		9.000
mm 		4.000
mm 		4.200
mm 		8.800
mm 		1054213 | CZR-T-0040-0090-G-ZR (4 Pcs) --- Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0090-G-ZR (4 Pcs) Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$150.68 AUD
$150.68 AUD
Per 4
Shaft Diameter (A) OD (D1) Thickness (T) Bore (d2) Indicative
4.000
mm 		9.000
mm 		4.000
mm 		4.200
mm 		1054213 | CZR-T-0040-0090-G-ZR (4 Pcs) --- Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 8.800 mm    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0090-G-ZR (4 Pcs) Thrust Ball Bearings - 4x9x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$150.68 AUD
$150.68 AUD
Per 4
View the product page first if you are unsure.
4.000
mm 		10.000
mm 		4.000
mm 		4.200
mm 		9.800
mm 		1054354 | CZR-T-0040-0100-G-ZR (4 Pcs) --- Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0100-G-ZR (4 Pcs) Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$150.68 AUD
$150.68 AUD
Per 4
4.000
mm 		10.000
mm 		4.000
mm 		4.200
mm 		1054354 | CZR-T-0040-0100-G-ZR (4 Pcs) --- Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 9.800 mm    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0040-0100-G-ZR (4 Pcs) Thrust Ball Bearings - 4x10x4 mm / 4.2 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$150.68 AUD
$150.68 AUD
Per 4
View the product page first if you are unsure.
20.000
mm 		35.000
mm 		10.000
mm 		21.000
mm 		35.000
mm 		1125041 | CZR-T-0200-0350-G-TF-51104 --- Thrust Ball Bearings - 20x35x10 mm / 21 mm - Ceramic Zirconia ZrO2
Material: Ceramic Zirconia ZrO2    Cage Type: PTFE
Part Number: CZR-T-0200-0350-G-TF-51104 Thrust Ball Bearings - 20x35x10 mm / 21 mm - Ceramic Zirconia ZrO2
1 Available Immediately | Further orders can be expected around Tue, May 20, 2025
$58.41 AUD
$58.41 AUD
Each
20.000
mm 		35.000
mm 		10.000
mm 		21.000
mm 		1125041 | CZR-T-0200-0350-G-TF-51104 --- Thrust Ball Bearings - 20x35x10 mm / 21 mm - Ceramic Zirconia ZrO2
Material: Ceramic Zirconia ZrO2    OD (D2): 35.000 mm    Cage Type: PTFE
Part Number: CZR-T-0200-0350-G-TF-51104 Thrust Ball Bearings - 20x35x10 mm / 21 mm - Ceramic Zirconia ZrO2
1 Available Immediately | Further orders can be expected around Tue, May 20, 2025
$58.41 AUD
$58.41 AUD
Each
View the product page first if you are unsure.
30.000
mm 		47.000
mm 		11.000
mm 		32.000
mm 		47.000
mm 		1142074 | CZR-T-0300-0470-G-ZR-51106 --- Thrust Ball Bearings - 30x47x11 mm / 32 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0300-0470-G-ZR-51106 Thrust Ball Bearings - 30x47x11 mm / 32 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$116.95 AUD
$116.95 AUD
Each
30.000
mm 		47.000
mm 		11.000
mm 		32.000
mm 		1142074 | CZR-T-0300-0470-G-ZR-51106 --- Thrust Ball Bearings - 30x47x11 mm / 32 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 47.000 mm    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0300-0470-G-ZR-51106 Thrust Ball Bearings - 30x47x11 mm / 32 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$116.95 AUD
$116.95 AUD
Each
View the product page first if you are unsure.
40.000
mm 		60.000
mm 		13.000
mm 		42.000
mm 		60.000
mm 		Thrust Ball Bearings - 40 mm x 60 mm x 13 mm / 42 mm
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: PTFE
Part Number: CZR-T-0400-060-G-ZR-51108 Thrust Ball Bearings - 40x60x13 mm / 42 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$174.32 AUD
$174.32 AUD
Each
40.000
mm 		60.000
mm 		13.000
mm 		42.000
mm 		Thrust Ball Bearings - 40 mm x 60 mm x 13 mm / 42 mm
Material: Ceramic Zirconia ZrO2 Balls and Races    OD (D2): 60.000 mm    Cage Type: PTFE
Part Number: CZR-T-0400-060-G-ZR-51108 Thrust Ball Bearings - 40x60x13 mm / 42 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$174.32 AUD
$174.32 AUD
Each
View the product page first if you are unsure.
60.000
mm 		85.000
mm 		17.000
mm 		1169157 | CZR-T-0600-0850-G-ZR-51112 (4 Pcs) --- Thrust Ball Bearings - 60x85x17 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0600-0850-G-ZR-51112 (4 Pcs) Thrust Ball Bearings - 60x85x17 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$1,695.23 AUD
$1,695.23 AUD
Per 4
60.000
mm 		85.000
mm 		17.000
mm 		1169157 | CZR-T-0600-0850-G-ZR-51112 (4 Pcs) --- Thrust Ball Bearings - 60x85x17 mm - Ceramic Zirconia ZrO2 Balls and Races
Material: Ceramic Zirconia ZrO2 Balls and Races    Cage Type: Ceramic ZRO2
Part Number: CZR-T-0600-0850-G-ZR-51112 (4 Pcs) Thrust Ball Bearings - 60x85x17 mm - Ceramic Zirconia ZrO2 Balls and Races
Out of Stock | Backorder Now | Orders can be expected around Tue, May 20, 2025
$1,695.23 AUD
$1,695.23 AUD
Per 4
View the product page first if you are unsure.
