Collection: Bearings - Thrust Ball - Grooved - Stainless Steel

Bearings (With Images)

Thrust Ball

Grooved

Chrome Steel
Stainless Steel
ZRO2 Ceramic

8 Products in this selection

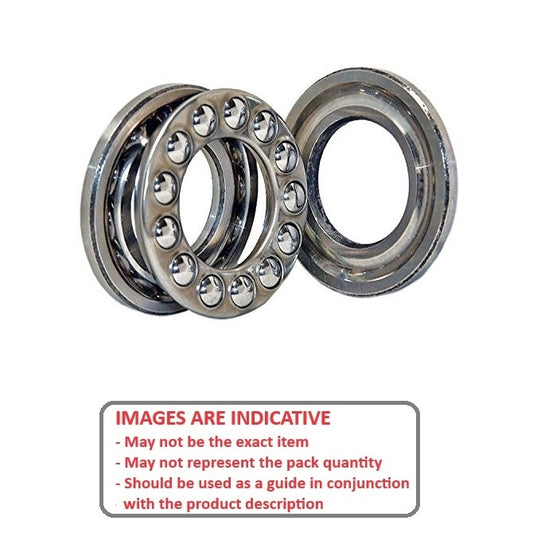

3 Piece Thrust Bearings Open Type
These bearings are designed so that when one ring turns, the other remains stationary.
Some have a larger bore on one side allowing a shaft with no steps to pass through. Others have identical bores on each race, requiring a stepped shaft.
Some have a reduced OD on one race allowing seating into an unstepped housing bore, whilst others will require a stepped housing to allow one ring to rotate.
Please be sure to take note of the figures shown for ID and OD of both races to ensure you select the correct bearing.

Additional resources:
Thrust Bearings PDF Catalogue
Shafting

Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	OD (D2)	Dynamic Load Capacity
4.000 mm	9.000 mm	4.000 mm	4.200 mm	8.800 mm	77 kgf
Material: Stainless Steel AISI 440C Material (Races and Balls): AIS I 440C Stainless Steel Cage Type: AIS I 440C Stainless Steel
Part Number: T-0040-0090-G-S440 Thrust Ball Bearings - 4 mm x 9 mm x 4 mm / 4 mm 32 Available \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each View the product page first if you are unsure ->
Shaft Diameter (A)	OD (D1)	Thickness (T)	Bore (d2)	Indicative Image
4.000 mm	9.000 mm	4.000 mm	4.200 mm
Material: Stainless Steel AISI 440C OD (D2): 8.800 mm Dynamic Load Capacity: 77 kgf Material (Races and Balls): AIS I 440C Stainless Steel Cage Type: AIS I 440C Stainless Steel
Part Number: T-0040-0090-G-S440 Thrust Ball Bearings - 4 mm x 9 mm x 4 mm / 4 mm 32 Available \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each View the product page first if you are unsure.
T-0040-0090-G-S440 --- Thrust Ball Bearings - 4 mm x 9 mm x 4 mm / 4 mm Stainless Steel AISI 440C T-0040-0090-G-S440 --- Thrust Ball Bearings - 4 mm x 9 mm x 4 mm / 4 mm Stainless Steel AISI 440C Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 32 Available Now
8.000 mm	16.000 mm	5.000 mm	8.200 mm	15.800 mm	391 kgf
Material: Stainless Steel AISI 440C Material (Races and Balls): AIS I 440C Stainless Steel Info: Chinese Cage Type: AIS I 440C Stainless Steel
Part Number: T-0080-0160-G-S440-ECO Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm 5 Available \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure ->
8.000 mm	16.000 mm	5.000 mm	8.200 mm
Material: Stainless Steel AISI 440C OD (D2): 15.800 mm Dynamic Load Capacity: 391 kgf Material (Races and Balls): AIS I 440C Stainless Steel Info: Chinese Cage Type: AIS I 440C Stainless Steel
Part Number: T-0080-0160-G-S440-ECO Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm 5 Available \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
T-0080-0160-G-S440-ECO --- Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm Stainless Steel AISI 440C T-0080-0160-G-S440-ECO --- Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm Stainless Steel AISI 440C Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 5 Available Now
8.000 mm	16.000 mm	5.000 mm	8.200 mm	15.800 mm	391 kgf
Material: Stainless Steel AISI 440C Material (Races and Balls): AIS I 440C Stainless Steel Cage Type: AIS I 440C Stainless Steel
Part Number: T-0080-0160-G-S440 Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm 113 Available \| Backorders for more can be expected around Thu, Feb 13, 2025 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Each View the product page first if you are unsure ->
8.000 mm	16.000 mm	5.000 mm	8.200 mm
Material: Stainless Steel AISI 440C OD (D2): 15.800 mm Dynamic Load Capacity: 391 kgf Material (Races and Balls): AIS I 440C Stainless Steel Cage Type: AIS I 440C Stainless Steel
Part Number: T-0080-0160-G-S440 Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm 113 Available \| Backorders for more can be expected around Thu, Feb 13, 2025 Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per Each View the product page first if you are unsure.
T-0080-0160-G-S440 --- Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm Stainless Steel AISI 440C T-0080-0160-G-S440 --- Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm Stainless Steel AISI 440C Regular price $27.50 AUD Regular price Sale price $27.50 AUD Unit price per 113 Available Now
10.000 mm	18.000 mm	5.500 mm	10.200 mm	17.800 mm	193 kgf
Material: Stainless Steel AISI 440C Material (Races and Balls): AIS I 440C Stainless Steel Cage Type: AIS I 440C Stainless Steel
Part Number: T-0100-0180-G-S440 Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm 112 Available \| Backorders for more can be expected around Thu, Feb 13, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Each View the product page first if you are unsure ->
10.000 mm	18.000 mm	5.500 mm	10.200 mm
Material: Stainless Steel AISI 440C OD (D2): 17.800 mm Dynamic Load Capacity: 193 kgf Material (Races and Balls): AIS I 440C Stainless Steel Cage Type: AIS I 440C Stainless Steel
Part Number: T-0100-0180-G-S440 Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm 112 Available \| Backorders for more can be expected around Thu, Feb 13, 2025 Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per Each View the product page first if you are unsure.
T-0100-0180-G-S440 --- Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm Stainless Steel AISI 440C T-0100-0180-G-S440 --- Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm Stainless Steel AISI 440C Regular price $25.05 AUD Regular price Sale price $25.05 AUD Unit price per 112 Available Now
10.000 mm	18.000 mm	5.500 mm	10.200 mm	17.800 mm	193 kgf
Material (Races and Balls): AIS I 440C Stainless Steel Cage Type: AIS I 440C Stainless Steel
Part Number: T-0100-0180-G-S440-ECO (50 Pcs) Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $227.68 AUD Regular price Sale price $227.68 AUD Unit price per Per 50 View the product page first if you are unsure ->
10.000 mm	18.000 mm	5.500 mm	10.200 mm
OD (D2): 17.800 mm Dynamic Load Capacity: 193 kgf Material (Races and Balls): AIS I 440C Stainless Steel Cage Type: AIS I 440C Stainless Steel
Part Number: T-0100-0180-G-S440-ECO (50 Pcs) Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $227.68 AUD Regular price Sale price $227.68 AUD Unit price per Per 50 View the product page first if you are unsure.
T-0100-0180-G-S440-ECO (50 Pcs) --- Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm T-0100-0180-G-S440-ECO (50 Pcs) --- Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm Regular price $227.68 AUD Regular price Sale price $227.68 AUD Unit price per Out of stock! Backorder Now
10.000 mm	26.000 mm	11.000 mm	12.000 mm	26.000 mm	1134 kgf
Material: Stainless Steel AISI 420C Material (Races and Balls): AIS I 420 Stainless Steel Info: Chinese Cage Type: AIS I 420 Stainless Steel
Part Number: T-0100-0260-G-51200-S420-ECO (400 Pcs) Thrust Ball Bearings - 10 mm x 26 mm x 11 mm / 12 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $3,046.86 AUD Regular price Sale price $3,046.86 AUD Unit price per Per 400 View the product page first if you are unsure ->
10.000 mm	26.000 mm	11.000 mm	12.000 mm
Material: Stainless Steel AISI 420C OD (D2): 26.000 mm Dynamic Load Capacity: 1134 kgf Material (Races and Balls): AIS I 420 Stainless Steel Info: Chinese Cage Type: AIS I 420 Stainless Steel
Part Number: T-0100-0260-G-51200-S420-ECO (400 Pcs) Thrust Ball Bearings - 10 mm x 26 mm x 11 mm / 12 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $3,046.86 AUD Regular price Sale price $3,046.86 AUD Unit price per Per 400 View the product page first if you are unsure.
T-0100-0260-G-51200-S420-ECO (400 Pcs) --- Thrust Ball Bearings - 10 mm x 26 mm x 11 mm / 12 mm Stainless Steel AISI 420C T-0100-0260-G-51200-S420-ECO (400 Pcs) --- Thrust Ball Bearings - 10 mm x 26 mm x 11 mm / 12 mm Stainless Steel AISI 420C Regular price $3,046.86 AUD Regular price Sale price $3,046.86 AUD Unit price per Out of stock! Backorder Now
12.000 mm	26.000 mm	9.000 mm	13.000 mm	26.000 mm	1570 kgf
Material: Stainless Steel AISI 420C Material (Races and Balls): AIS I 420 Stainless Steel Info: Chinese Cage Type: AIS I 420 Stainless Steel
Part Number: T-0120-0260-G-51101-S420-ECO (50 Pcs) Thrust Ball Bearings - 12 mm x 26 mm x 9 mm / 13 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $383.59 AUD Regular price Sale price $383.59 AUD Unit price per Per 50 View the product page first if you are unsure ->
12.000 mm	26.000 mm	9.000 mm	13.000 mm
Material: Stainless Steel AISI 420C OD (D2): 26.000 mm Dynamic Load Capacity: 1570 kgf Material (Races and Balls): AIS I 420 Stainless Steel Info: Chinese Cage Type: AIS I 420 Stainless Steel
Part Number: T-0120-0260-G-51101-S420-ECO (50 Pcs) Thrust Ball Bearings - 12 mm x 26 mm x 9 mm / 13 mm Out of Stock \| Backorder Now \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $383.59 AUD Regular price Sale price $383.59 AUD Unit price per Per 50 View the product page first if you are unsure.
T-0120-0260-G-51101-S420-ECO (50 Pcs) --- Thrust Ball Bearings - 12 mm x 26 mm x 9 mm / 13 mm Stainless Steel AISI 420C T-0120-0260-G-51101-S420-ECO (50 Pcs) --- Thrust Ball Bearings - 12 mm x 26 mm x 9 mm / 13 mm Stainless Steel AISI 420C Regular price $383.59 AUD Regular price Sale price $383.59 AUD Unit price per Out of stock! Backorder Now
15.000 mm	32.000 mm	12.000 mm	17.000 mm	32.000 mm	1494 kgf
Material: Stainless Steel AISI 440C Material (Races and Balls): AIS I 440C Stainless Steel Info: Chinese Cage Type: AIS I 440C Stainless Steel
Part Number: T-0150-0320-G-51202-440C-ECO Thrust Ball Bearings - 15 mm x 32 mm x 12 mm / 17 mm 87 Available \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each View the product page first if you are unsure ->
15.000 mm	32.000 mm	12.000 mm	17.000 mm
Material: Stainless Steel AISI 440C OD (D2): 32.000 mm Dynamic Load Capacity: 1494 kgf Material (Races and Balls): AIS I 440C Stainless Steel Info: Chinese Cage Type: AIS I 440C Stainless Steel
Part Number: T-0150-0320-G-51202-440C-ECO Thrust Ball Bearings - 15 mm x 32 mm x 12 mm / 17 mm 87 Available \| Backorders for more can be expected around Fri, Feb 07, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Each View the product page first if you are unsure.
T-0150-0320-G-51202-440C-ECO --- Thrust Ball Bearings - 15 mm x 32 mm x 12 mm / 17 mm Stainless Steel AISI 440C T-0150-0320-G-51202-440C-ECO --- Thrust Ball Bearings - 15 mm x 32 mm x 12 mm / 17 mm Stainless Steel AISI 440C Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per 87 Available Now

No orders will ship during the Christmas break 19th December to 9th January. Shipping will recommence on 10th January 2025. Please continue placing orders during the break for priority service when we return. We hope you have a wonderful Christmas.

Collection: Bearings - Thrust Ball - Grooved - Stainless Steel

Filter:

T-0040-0090-G-S440 --- Thrust Ball Bearings - 4 mm x 9 mm x 4 mm / 4 mm
Stainless Steel AISI 440C

T-0040-0090-G-S440 --- Thrust Ball Bearings - 4 mm x 9 mm x 4 mm / 4 mm
Stainless Steel AISI 440C

T-0080-0160-G-S440-ECO --- Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm
Stainless Steel AISI 440C

T-0080-0160-G-S440-ECO --- Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm
Stainless Steel AISI 440C

T-0080-0160-G-S440 --- Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm
Stainless Steel AISI 440C

T-0080-0160-G-S440 --- Thrust Ball Bearings - 8 mm x 16 mm x 5 mm / 8 mm
Stainless Steel AISI 440C

T-0100-0180-G-S440 --- Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm
Stainless Steel AISI 440C

T-0100-0180-G-S440 --- Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm
Stainless Steel AISI 440C

T-0100-0180-G-S440-ECO (50 Pcs) --- Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm

T-0100-0180-G-S440-ECO (50 Pcs) --- Thrust Ball Bearings - 10 mm x 18 mm x 5.5 mm / 10 mm

T-0100-0260-G-51200-S420-ECO (400 Pcs) --- Thrust Ball Bearings - 10 mm x 26 mm x 11 mm / 12 mm
Stainless Steel AISI 420C

T-0100-0260-G-51200-S420-ECO (400 Pcs) --- Thrust Ball Bearings - 10 mm x 26 mm x 11 mm / 12 mm
Stainless Steel AISI 420C

T-0120-0260-G-51101-S420-ECO (50 Pcs) --- Thrust Ball Bearings - 12 mm x 26 mm x 9 mm / 13 mm
Stainless Steel AISI 420C

T-0120-0260-G-51101-S420-ECO (50 Pcs) --- Thrust Ball Bearings - 12 mm x 26 mm x 9 mm / 13 mm
Stainless Steel AISI 420C

T-0150-0320-G-51202-440C-ECO --- Thrust Ball Bearings - 15 mm x 32 mm x 12 mm / 17 mm
Stainless Steel AISI 440C

T-0150-0320-G-51202-440C-ECO --- Thrust Ball Bearings - 15 mm x 32 mm x 12 mm / 17 mm
Stainless Steel AISI 440C
