Balls - Tooling - One Piece - Shoulder - Slip Fit - Steel

Balls -> Tooling -> One Piece -> Shoulder -> Slip Fit -> Steel

There are 6 products in the sub-categories of Balls - Tooling - One Piece - Shoulder - Slip Fit - Steel. Browse the Balls - Tooling - One Piece - Shoulder - Slip Fit - Steel products table.

Category Details

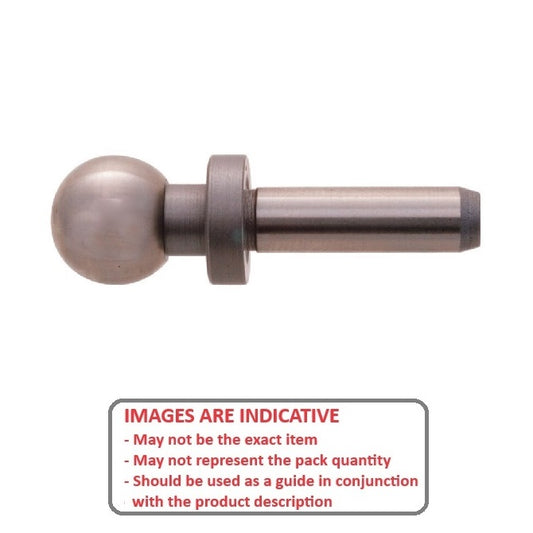

A selection of Steel Slip Fit Shoulder One Piece Tooling Balls. 1144 steel heat treated to 53-57 RC

  • High quality tooling balls provide a precise reference point for critical machining operations.
  • Tooling balls, also known as tooling spheres or precision spheres, are precision components used in fixture design, tooling setup, and alignment applications.
  • Tooling balls are made of hardened steel or other materials with high wear resistance and precision-ground surfaces.
  • Available with slip fit or light press fit shank diameters.
  • Precision ground shoulder provides precise C dimension to facilitate locating ball centre line.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Balls - Tooling - One Piece - Shoulder - Slip Fit - Steel category on the Small Parts & Bearings online store.
Diameter (A) Shank Diameter (B) Base to Centre (C) Shoulder to Centre (D) Shoulder Diameter (E) Base Type Indicative
Tooling Balls - 6x3x10 mm One Piece - Carbon Steel Ball
Diameter (A)
6.000
mm
+/- 0.0051
(Equiv. 0.236 in.)
Shank Diameter (B)
3.000
mm
+ 0.0000 / - 0.0102
(Equiv. 0.118 in.)
Base to Centre (C)
10.000
mm
+/- 0.0051
(Equiv. 0.394 in.)
Shoulder to Centre (D)
6.000
mm
Tooling Balls - 6x3x10 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-00600-CS-1S (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$77.50 AUD
$93.00 AUD $77.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Diameter (A) Shank Diameter (B) Base to Centre (C) Shoulder to Centre (D) Indicative
Tooling Balls - 6x3x10 mm One Piece - Carbon Steel Ball
Diameter (A)
6.000
mm
+/- 0.0051
(Equiv. 0.236 in.)
Shank Diameter (B)
3.000
mm
+ 0.0000 / - 0.0102
(Equiv. 0.118 in.)
Base to Centre (C)
10.000
mm
+/- 0.0051
(Equiv. 0.394 in.)
Shoulder to Centre (D)
6.000
mm
Tooling Balls - 6x3x10 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-00600-CS-1S (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$77.50 AUD
$93.00 AUD $77.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tooling Balls - 6.35x3.175x14.3 mm One Piece - Carbon Steel Ball
Diameter (A)
6.350
mm
+/- 0.0051
(Equiv. 0.25 in.)
Shank Diameter (B)
3.175
mm
+ 0.0000 / - 0.0102
(Equiv. 0.125 in.)
Base to Centre (C)
14.300
mm
+/- 0.0051
(Equiv. 0.563 in.)
Shoulder to Centre (D)
5.080
mm
Tooling Balls - 6.35x3.175x14.3 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-00635-CS-1S (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$60.68 AUD
$72.82 AUD $60.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tooling Balls - 6.35x3.175x14.3 mm One Piece - Carbon Steel Ball
Diameter (A)
6.350
mm
+/- 0.0051
(Equiv. 0.25 in.)
Shank Diameter (B)
3.175
mm
+ 0.0000 / - 0.0102
(Equiv. 0.125 in.)
Base to Centre (C)
14.300
mm
+/- 0.0051
(Equiv. 0.563 in.)
Shoulder to Centre (D)
5.080
mm
Tooling Balls - 6.35x3.175x14.3 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-00635-CS-1S (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$60.68 AUD
$72.82 AUD $60.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.

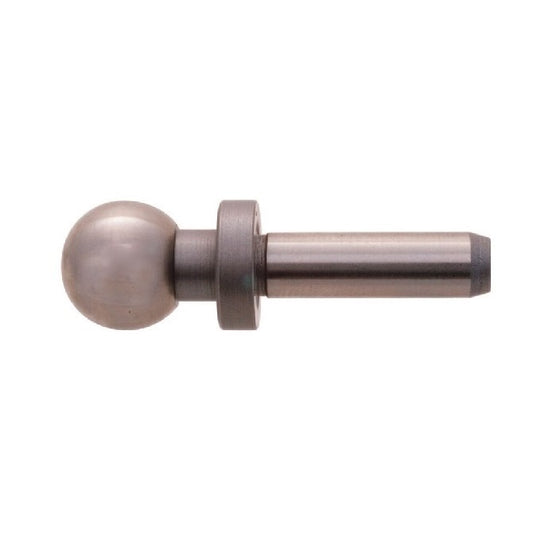

Tooling Balls - 9.525x4.763x19.05 mm One Piece - Carbon Steel Ball
Diameter (A)
9.525
mm
+/- 0.0051
(Equiv. 0.375 in.)
Shank Diameter (B)
4.763
mm
+ 0.0000 / - 0.0102
(Equiv. 0.188 in.)
Base to Centre (C)
19.050
mm
+/- 0.0051
(Equiv. 0.75 in.)
Shoulder to Centre (D)
7.620
mm
Tooling Balls - 9.525x4.763x19.05 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-00953-CS-1S (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$63.77 AUD
$76.53 AUD $63.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tooling Balls - 9.525x4.763x19.05 mm One Piece - Carbon Steel Ball
Diameter (A)
9.525
mm
+/- 0.0051
(Equiv. 0.375 in.)
Shank Diameter (B)
4.763
mm
+ 0.0000 / - 0.0102
(Equiv. 0.188 in.)
Base to Centre (C)
19.050
mm
+/- 0.0051
(Equiv. 0.75 in.)
Shoulder to Centre (D)
7.620
mm
Tooling Balls - 9.525x4.763x19.05 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-00953-CS-1S (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$63.77 AUD
$76.53 AUD $63.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tooling Balls - 12.7x6.35x23.876 mm One Piece - Carbon Steel Ball
Diameter (A)
12.700
mm
+/- 0.0051
(Equiv. 0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(Equiv. 0.25 in.)
Base to Centre (C)
23.876
mm
+/- 0.0051
(Equiv. 0.94 in.)
Shoulder to Centre (D)
10.160
mm
Tooling Balls - 12.7x6.35x23.876 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-01270-CS-1S-A (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$69.95 AUD
$83.95 AUD $69.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tooling Balls - 12.7x6.35x23.876 mm One Piece - Carbon Steel Ball
Diameter (A)
12.700
mm
+/- 0.0051
(Equiv. 0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(Equiv. 0.25 in.)
Base to Centre (C)
23.876
mm
+/- 0.0051
(Equiv. 0.94 in.)
Shoulder to Centre (D)
10.160
mm
Tooling Balls - 12.7x6.35x23.876 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-01270-CS-1S-A (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$69.95 AUD
$83.95 AUD $69.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tooling Balls - 12.7x6.35x34.925 mm One Piece - Carbon Steel Ball
Diameter (A)
12.700
mm
+/- 0.0051
(Equiv. 0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(Equiv. 0.25 in.)
Base to Centre (C)
34.925
mm
+/- 0.0051
(Equiv. 1.375 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 12.7x6.35x34.925 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-01270-CS-1S-B (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$66.86 AUD
$80.24 AUD $66.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tooling Balls - 12.7x6.35x34.925 mm One Piece - Carbon Steel Ball
Diameter (A)
12.700
mm
+/- 0.0051
(Equiv. 0.5 in.)
Shank Diameter (B)
6.350
mm
+ 0.0000 / - 0.0102
(Equiv. 0.25 in.)
Base to Centre (C)
34.925
mm
+/- 0.0051
(Equiv. 1.375 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 12.7x6.35x34.925 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-01270-CS-1S-B (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$66.86 AUD
$80.24 AUD $66.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tooling Balls - 19.05x9.525x31.75 mm One Piece - Carbon Steel Ball
Diameter (A)
19.050
mm
+/- 0.0051
(Equiv. 0.75 in.)
Shank Diameter (B)
9.525
mm
+ 0.0000 / - 0.0102
(Equiv. 0.375 in.)
Base to Centre (C)
31.750
mm
+/- 0.0051
(Equiv. 1.25 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 19.05x9.525x31.75 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-01905-CS-1S (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$6,411.59 AUD
$7,693.91 AUD $6,411.59 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Tooling Balls - 19.05x9.525x31.75 mm One Piece - Carbon Steel Ball
Diameter (A)
19.050
mm
+/- 0.0051
(Equiv. 0.75 in.)
Shank Diameter (B)
9.525
mm
+ 0.0000 / - 0.0102
(Equiv. 0.375 in.)
Base to Centre (C)
31.750
mm
+/- 0.0051
(Equiv. 1.25 in.)
Shoulder to Centre (D)
12.700
mm
Tooling Balls - 19.05x9.525x31.75 mm One Piece - Carbon Steel Ball
Material: Carbon Steel
Part Number: BLTO-01905-CS-1S (PK-100)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 06, 2026
$6,411.59 AUD
$7,693.91 AUD $6,411.59 AUD
Priced, Stocked and Sold Per 100 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
