Ball Transfer Units - Screw Stem - Steel - Precision

Ball Transfer Units -> Screw Stem -> Steel -> Precision

There are 4 products in the sub-categories of Ball Transfer Units - Screw Stem - Steel - Precision. Browse the Ball Transfer Units - Screw Stem - Steel - Precision products table.

Category Details

A selection of Precision Steel Screw Stem Ball Transfer Units. This is the main category in this series

  • Single ball bearing units for conveyor systems
  • Applications include measuring equipment and light weight coil handlers. Guides for small linear motion (eg. photocopier slides). Transfer of material in clean rooms.
  • Max Load is applicable when used as a transfer, not as a castor

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Ball Transfer Units - Screw Stem - Steel - Precision category on the Small Parts & Bearings online store.
Max Load Height from Base (B) Body Diameter (D) Overall Height (L) Ball Diameter Indicative

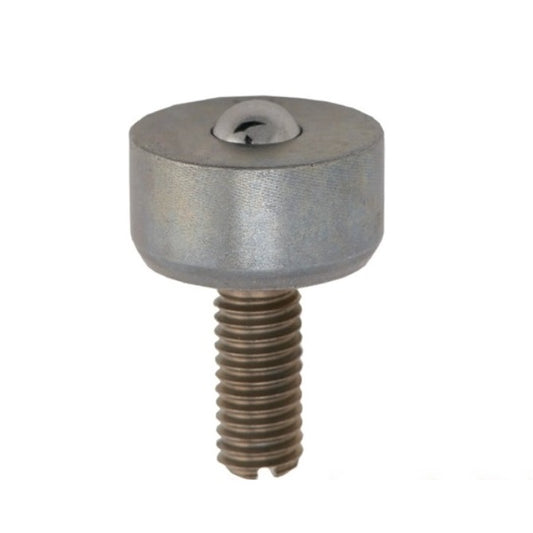

Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Steel
Max Load
20
kg
Height from Base (B)
9
mm
Body Diameter (D)
13
mm
Overall Height (L)
24.0
mm
Ball Diameter
4.8
mm
Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Steel
Material: Steel    Body Height (H): 9.0 mm    Thread: M6    Stud Length (Sl): 15.0 mm
Deleted Item. Available while stocks last.
Part Number: BTU0020-009-TS-C (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$60.00 AUD
$114.00 AUD $60.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Max Load Height from Base (B) Body Diameter (D) Overall Height (L) Indicative
Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Steel
Max Load
20
kg
Height from Base (B)
9
mm
Body Diameter (D)
13
mm
Overall Height (L)
24.0
mm
Screw Stem Ball Transfer Units - 20 kg - 9x13 mm - Steel
Material: Steel    Ball Diameter: 4.8 mm    Body Height (H): 9.0 mm    Thread: M6    Stud Length (Sl): 15.0 mm
Deleted Item. Available while stocks last.
Part Number: BTU0020-009-TS-C (Each)
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$60.00 AUD
$114.00 AUD $60.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Screw Stem Ball Transfer Units - 34 kg - 16x20.6 mm - Steel
Max Load
34
kg
Height from Base (B)
16
mm
Body Diameter (D)
20.6
mm
Overall Height (L)
35.8
mm
Ball Diameter
12.7
mm
Screw Stem Ball Transfer Units - 34 kg - 16x20.6 mm - Steel
Material: Steel    Body Height (H): 16.0 mm    Thread: 5/16-24 UNF    Stud Length (Sl): 16.3 mm
Part Number: BTU0034-016-TS-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$234.59 AUD
$281.51 AUD $234.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Screw Stem Ball Transfer Units - 34 kg - 16x20.6 mm - Steel
Max Load
34
kg
Height from Base (B)
16
mm
Body Diameter (D)
20.6
mm
Overall Height (L)
35.8
mm
Screw Stem Ball Transfer Units - 34 kg - 16x20.6 mm - Steel
Material: Steel    Ball Diameter: 12.7 mm    Body Height (H): 16.0 mm    Thread: 5/16-24 UNF    Stud Length (Sl): 16.3 mm
Part Number: BTU0034-016-TS-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$234.59 AUD
$281.51 AUD $234.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Screw Stem Ball Transfer Units - 136 kg - 42.7x44.45 mm - Steel
Max Load
136
kg
Height from Base (B)
42.7
mm
Body Diameter (D)
44.45
mm
Overall Height (L)
72.4
mm
Ball Diameter
25.4
mm
Screw Stem Ball Transfer Units - 136 kg - 42.7x44.45 mm - Steel
Material: Steel    Body Height (H): 42.7 mm    Thread: 1/2-20 UNF    Stud Length (Sl): 24.1 mm
Part Number: BTU0136-043-TS-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$452.14 AUD
$542.56 AUD $452.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Screw Stem Ball Transfer Units - 136 kg - 42.7x44.45 mm - Steel
Max Load
136
kg
Height from Base (B)
42.7
mm
Body Diameter (D)
44.45
mm
Overall Height (L)
72.4
mm
Screw Stem Ball Transfer Units - 136 kg - 42.7x44.45 mm - Steel
Material: Steel    Ball Diameter: 25.4 mm    Body Height (H): 42.7 mm    Thread: 1/2-20 UNF    Stud Length (Sl): 24.1 mm
Part Number: BTU0136-043-TS-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$452.14 AUD
$542.56 AUD $452.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Screw Stem Ball Transfer Units - 318 kg - 45.2x50.8 mm - Steel
Max Load
318
kg
Height from Base (B)
45.2
mm
Body Diameter (D)
50.80
mm
Overall Height (L)
77.0
mm
Ball Diameter
25.4
mm
Screw Stem Ball Transfer Units - 318 kg - 45.2x50.8 mm - Steel
Material: Steel    Body Height (H): 45.2 mm    Thread: 1/2-20 UNF    Stud Length (Sl): 25.4 mm
Part Number: BTU0318-045-TS-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$524.59 AUD
$629.51 AUD $524.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Screw Stem Ball Transfer Units - 318 kg - 45.2x50.8 mm - Steel
Max Load
318
kg
Height from Base (B)
45.2
mm
Body Diameter (D)
50.80
mm
Overall Height (L)
77.0
mm
Screw Stem Ball Transfer Units - 318 kg - 45.2x50.8 mm - Steel
Material: Steel    Ball Diameter: 25.4 mm    Body Height (H): 45.2 mm    Thread: 1/2-20 UNF    Stud Length (Sl): 25.4 mm
Part Number: BTU0318-045-TS-C (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$524.59 AUD
$629.51 AUD $524.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
