Ball Transfer Units - Flange Mount - Standard - Stainless

5 Products in this selection

This is a combined category of products from Stainless Standard Flange Mount Ball Transfer Units. Use the filters in the table below, or the category tree to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Ball Diameter Indicative
54
kg 		12.0
mm
+/-0.2 		46.5
mm
+/-0.065 		36.1
mm 		31.7
mm 		1164878 | BTU0060-010-F-SS-SL --- Ball - 54 kg x 12 mm x 46.5 mm
Material: 420 Stainless    Body Height: 19.9 mm    Flange Diameter: 73.7 mm    Flange Thickness: 4.2 mm    Fixing Hole Size: M5 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Slim
Part Number: BTU0060-010-F-SS-SL Ball - 54 kg x 12 mm x 46.5 mm / Ball Transfer Units
2 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity
$28.00 AUD
$46.20 AUD $28.00 AUD
Each
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Indicative
54
kg 		12.0
mm
+/-0.2 		46.5
mm
+/-0.065 		36.1
mm 		1164878 | BTU0060-010-F-SS-SL --- Ball - 54 kg x 12 mm x 46.5 mm
Material: 420 Stainless    Ball Diameter: 31.7 mm    Body Height: 19.9 mm    Flange Diameter: 73.7 mm    Flange Thickness: 4.2 mm    Fixing Hole Size: M5 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Slim
Part Number: BTU0060-010-F-SS-SL Ball - 54 kg x 12 mm x 46.5 mm / Ball Transfer Units
2 Available
Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity |
$28.00 AUD
$46.20 AUD $28.00 AUD
Each
55
kg 		6.7
mm
+/-0.2 		24
mm
+/-0.065 		21.0
mm 		15.0

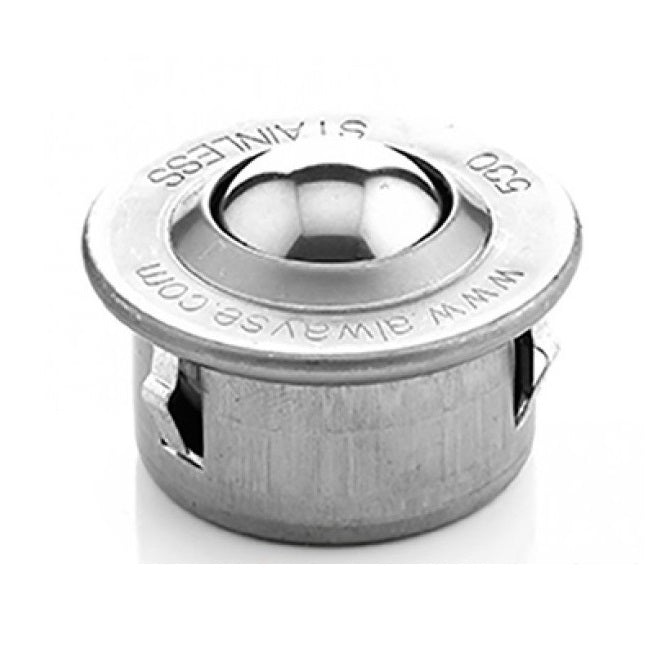

mm 		1165332 | BTU0060-010-F-SS --- Ball - 55 kg x 6.7 mm x 24 mm
Material: 420 Stainless and Zinc Plated Mild Steel    Body Height: 11.5 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0060-010-F-SS Ball - 55 kg x 6.7 mm x 24 mm / Ball Transfer Units
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$47.32 AUD
$47.32 AUD
Each
55
kg 		6.7
mm
+/-0.2 		24
mm
+/-0.065 		21.0
mm 		1165332 | BTU0060-010-F-SS --- Ball - 55 kg x 6.7 mm x 24 mm
Material: 420 Stainless and Zinc Plated Mild Steel    Ball Diameter: 15.0 mm    Body Height: 11.5 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0060-010-F-SS Ball - 55 kg x 6.7 mm x 24 mm / Ball Transfer Units
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$47.32 AUD
$47.32 AUD
Each
160
kg 		9.8
mm
+/-0.2 		36
mm
+/-0.080 		30.0
mm 		15.0
mm 		1202259 | BTU0160-010-F-SS --- Ball - 160 kg x 9.8 mm x 36 mm
Material: 420 Stainless and Zinc Plated Mild Steel    Body Height: 20.2 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0160-010-F-SS Ball - 160 kg x 9.8 mm x 36 mm / Ball Transfer Units
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$65.05 AUD
$65.05 AUD
Each
160
kg 		9.8
mm
+/-0.2 		36
mm
+/-0.080 		30.0
mm 		1202259 | BTU0160-010-F-SS --- Ball - 160 kg x 9.8 mm x 36 mm
Material: 420 Stainless and Zinc Plated Mild Steel    Ball Diameter: 15.0 mm    Body Height: 20.2 mm    Flange Diameter: 31.0 mm    Flange Thickness: 2.8 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0160-010-F-SS Ball - 160 kg x 9.8 mm x 36 mm / Ball Transfer Units
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$65.05 AUD
$65.05 AUD
Each
295
kg 		13.8
mm
+/-0.3 		45
mm
+/-0.080 		37.0
mm 		22.0
mm 		1214717 | BTU0295-014-F-SS --- Ball - 295 kg x 13.8 mm x 45 mm
Material: 420 Stainless and Zinc Plated Mild Steel    Body Height: 23.2 mm    Flange Diameter: 45.0 mm    Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0295-014-F-SS Ball - 295 kg x 13.8 mm x 45 mm / Ball Transfer Units
Out of Stock
Backorder Now | Backorders for more can be expected around Sat, Jan 18, 2025
$123.05 AUD
$123.05 AUD
Each
295
kg 		13.8
mm
+/-0.3 		45
mm
+/-0.080 		37.0
mm 		1214717 | BTU0295-014-F-SS --- Ball - 295 kg x 13.8 mm x 45 mm
Material: 420 Stainless and Zinc Plated Mild Steel    Ball Diameter: 22.0 mm    Body Height: 23.2 mm    Flange Diameter: 45.0 mm    Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0295-014-F-SS Ball - 295 kg x 13.8 mm x 45 mm / Ball Transfer Units
Out of Stock
Backorder Now | | Backorders for more can be expected around Sat, Jan 18, 2025
$123.05 AUD
$123.05 AUD
Each
610
kg 		19
mm
+/-0.4 		62
mm
+/-0.095 		53.5
mm 		30.0
mm 		1220729 | BTU0610-019-F-SS --- Ball - 610 kg x 19 mm x 62 mm
Material: 420 Stainless and Zinc Plated Mild Steel    Body Height: 34.5 mm    Flange Diameter: 55.0 mm    Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0610-019-F-SS Ball - 610 kg x 19 mm x 62 mm / Ball Transfer Units
4 Available
| Backorders for more can be expected around Sat, Jan 18, 2025
$216.77 AUD
$216.77 AUD
Each
610
kg 		19
mm
+/-0.4 		62
mm
+/-0.095 		53.5
mm 		1220729 | BTU0610-019-F-SS --- Ball - 610 kg x 19 mm x 62 mm
Material: 420 Stainless and Zinc Plated Mild Steel    Ball Diameter: 30.0 mm    Body Height: 34.5 mm    Flange Diameter: 55.0 mm    Flange Thickness: 4.0 mm
Category: Ball Transfer Units - Flange Mount - Standard - Stainless - Deep
Part Number: BTU0610-019-F-SS Ball - 610 kg x 19 mm x 62 mm / Ball Transfer Units
4 Available
| | Backorders for more can be expected around Sat, Jan 18, 2025
$216.77 AUD
$216.77 AUD
Each
