Ball Transfer Units - Flange Mount - Heavy Duty

Ball Transfer Units -> Flange Mount -> Heavy Duty

There are 4 products in the sub-categories of Ball Transfer Units - Flange Mount - Heavy Duty. Browse the Ball Transfer Units - Flange Mount - Heavy Duty products table. To narrow down the selection, please choose a sub-category from the links below.

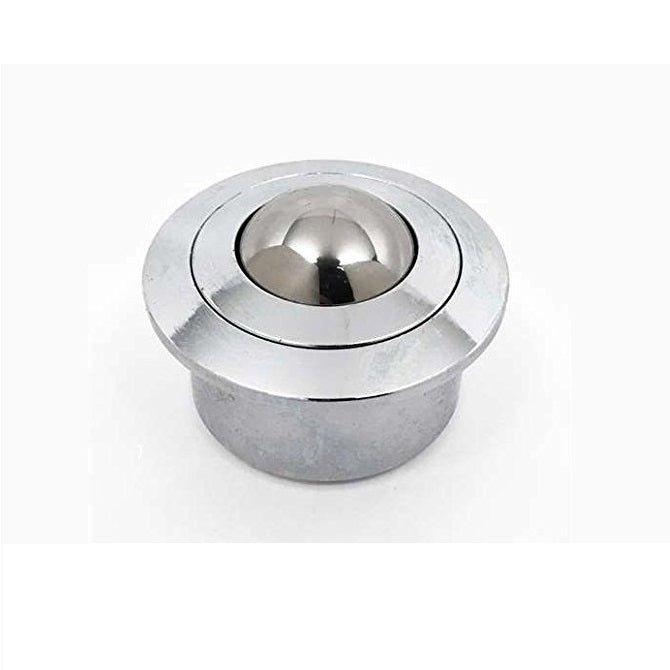

Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm - Carbon Steel

Ball Transfer Units - Flange Mount - Heavy Duty - Pressed Steel

A selection of Pressed Steel Heavy Duty Flange Mount Ball Transfer Units....

Ball Transfer Units - Flange Mount - Heavy Duty - Pressed Steel

Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm - Stainless Steel AISI 420C and 303 Grades

Ball Transfer Units - Flange Mount - Heavy Duty - Stainless Steel

A selection of Stainless Steel Heavy Duty Flange Mount Ball Transfer Units....

Ball Transfer Units - Flange Mount - Heavy Duty - Stainless Steel

Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm - Chrome hardened and Zinc Plated Mild Steel

Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated

A selection of Zinc Plated Heavy Duty Flange Mount Ball Transfer Units....

Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated

Category Details

This category includes various types of flange mount ball transfer units.
  • Single ball bearing units for conveyor systems
  • Max Load is applicable when used as a transfer, not as a castor

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Ball Transfer Units - Flange Mount - Heavy Duty category on the Small Parts & Bearings online store.
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Ball Diameter Indicative
Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm Heavy Duty - Stainless Steel AISI 420C and 303 Grades
Max Load
120
kg
Ball Height from Flange (B)
9.8
mm
Body Diameter (D)
36
mm
+/- 0.08
(Equiv. 1.417 in.)
Overall Height (L)
30.5
mm
Ball Diameter
22.0
mm
Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm - Stainless Steel AISI 420C and 303 Grades
Material: Stainless Steel AISI 420C and 303 Grades    Body Height: 20.7 mm    Flange Diameter: 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Stainless Steel
Part Number: BTU0120-010-F-SS-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 02, 2026
$294.32 AUD
$294.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Max Load Ball Height from Flange (B) Body Diameter (D) Overall Height (L) Indicative
Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm Heavy Duty - Stainless Steel AISI 420C and 303 Grades
Max Load
120
kg
Ball Height from Flange (B)
9.8
mm
Body Diameter (D)
36
mm
+/- 0.08
(Equiv. 1.417 in.)
Overall Height (L)
30.5
mm
Flange Mount Ball Transfer Units - 120 kg - 9.8x36 mm - Stainless Steel AISI 420C and 303 Grades
Material: Stainless Steel AISI 420C and 303 Grades    Ball Diameter: 22.0 mm    Body Height: 20.7 mm    Flange Diameter: 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Stainless Steel
Part Number: BTU0120-010-F-SS-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 02, 2026
$294.32 AUD
$294.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm Heavy Duty - Chrome hardened and Zinc Plated Mild Steel
Max Load
180
kg
Ball Height from Flange (B)
9.8
mm
Body Diameter (D)
36
mm
+/- 0.08
(Equiv. 1.417 in.)
Overall Height (L)
30.5
mm
Ball Diameter
22.0
mm
Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm - Chrome hardened and Zinc Plated Mild Steel
Material: Chrome hardened and Zinc Plated Mild Steel    Body Height: 20.7 mm    Flange Diameter: 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated
Part Number: BTU0180-010-F-Z-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 02, 2026
$168.32 AUD
$168.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm Heavy Duty - Chrome hardened and Zinc Plated Mild Steel
Max Load
180
kg
Ball Height from Flange (B)
9.8
mm
Body Diameter (D)
36
mm
+/- 0.08
(Equiv. 1.417 in.)
Overall Height (L)
30.5
mm
Flange Mount Ball Transfer Units - 180 kg - 9.8x36 mm - Chrome hardened and Zinc Plated Mild Steel
Material: Chrome hardened and Zinc Plated Mild Steel    Ball Diameter: 22.0 mm    Body Height: 20.7 mm    Flange Diameter: 45.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated
Part Number: BTU0180-010-F-Z-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 02, 2026
$168.32 AUD
$168.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm Heavy Duty - Chrome hardened and Zinc Plated Mild Steel
Max Load
350
kg
Ball Height from Flange (B)
13.8
mm
Body Diameter (D)
45
mm
+/- 0.08
(Equiv. 1.772 in.)
Overall Height (L)
30.5
mm
Ball Diameter
30.0
mm
Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm - Chrome hardened and Zinc Plated Mild Steel
Material: Chrome hardened and Zinc Plated Mild Steel    Body Height: 23.0 mm    Flange Diameter: 55.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated
Part Number: BTU0350-014-F-Z-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 02, 2026
$195.68 AUD
$234.82 AUD $195.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm Heavy Duty - Chrome hardened and Zinc Plated Mild Steel
Max Load
350
kg
Ball Height from Flange (B)
13.8
mm
Body Diameter (D)
45
mm
+/- 0.08
(Equiv. 1.772 in.)
Overall Height (L)
30.5
mm
Flange Mount Ball Transfer Units - 350 kg - 13.8x45 mm - Chrome hardened and Zinc Plated Mild Steel
Material: Chrome hardened and Zinc Plated Mild Steel    Ball Diameter: 30.0 mm    Body Height: 23.0 mm    Flange Diameter: 55.0 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Zinc Plated
Part Number: BTU0350-014-F-Z-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 02, 2026
$195.68 AUD
$234.82 AUD $195.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm Heavy Duty - Carbon Steel
Max Load
1000
kg
Ball Height from Flange (B)
25.4
mm
Body Diameter (D)
60.45
mm
Overall Height (L)
60.5
mm
Ball Diameter
38.1
mm
Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm - Carbon Steel
Material: Carbon Steel    Body Height: 35.8 mm    Flange Diameter: 76.2 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Pressed Steel
Part Number: BTU1000-025-F-PC-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 02, 2026
$1,356.41 AUD
$1,356.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm Heavy Duty - Carbon Steel
Max Load
1000
kg
Ball Height from Flange (B)
25.4
mm
Body Diameter (D)
60.45
mm
Overall Height (L)
60.5
mm
Flange Mount Ball Transfer Units - 1000 kg - 25.4x60.45 mm - Carbon Steel
Material: Carbon Steel    Ball Diameter: 38.1 mm    Body Height: 35.8 mm    Flange Diameter: 76.2 mm
Category: Ball Transfer Units - Flange Mount - Heavy Duty - Pressed Steel
Part Number: BTU1000-025-F-PC-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Aug 02, 2026
$1,356.41 AUD
$1,356.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
