WRE-0413-RD-O - Datasheet
ENQUIRE
Category Information

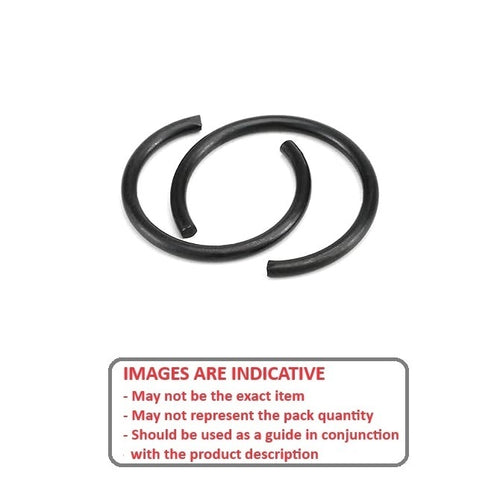

Retaining Rings - External - Round WireRound Wire External Retaining Rings. DIN7993A / RW / BN825. Retaining rings. Snap Rings (USA). Round section circlips.
- An expanded range may be available on special order. Please enquire.
- Round section wire rings are mostly used in semicircular grooves.
- Applications include gear systems, automotive engineering and open gudgeon pins.

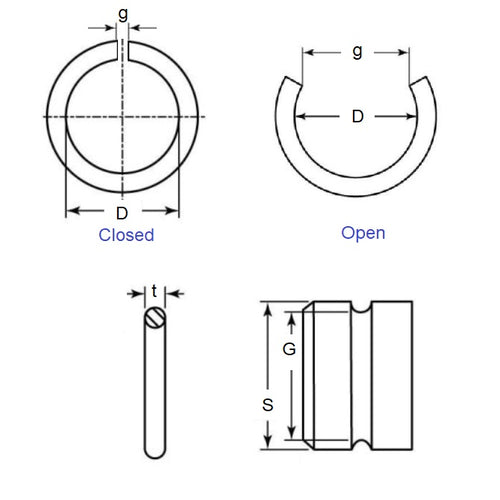

Product Data
- Shaft Diameter (Ds) : 41.28 mm
- Clip Thickness (T)
3.56
mm
+/- 0.06
(Equiv. 0.14 in.) - Groove Dia. (Dg)
39.04
mm
+ /- 0.08
(Equiv. 1.537 in.) - Approx. Loose Circlip ID (A) 38.66 mm
- Radial Wall (S) Approx. 39.04 mm
- Groove Width (W) 3.61 mm
- Free Outside Dia (Dr) 45.78
- Section Profile Round Section
- Info Radial Assembly - Open Gap
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 200-456
- Arcon® XRO-456
- NoCor® XRO-456
- WRE0413SRO
- XRO456
- 200456
