WRI-0080-LS - Datasheet
MBA
Category Information

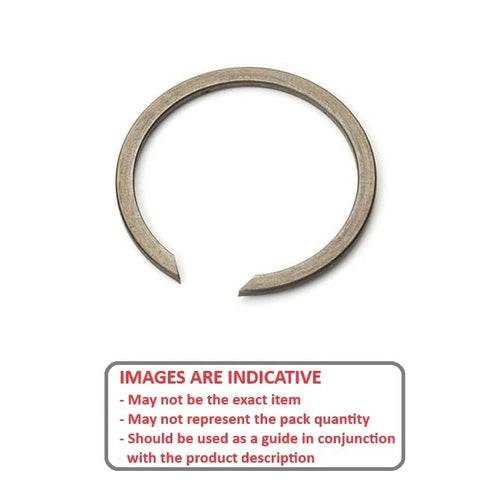

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar

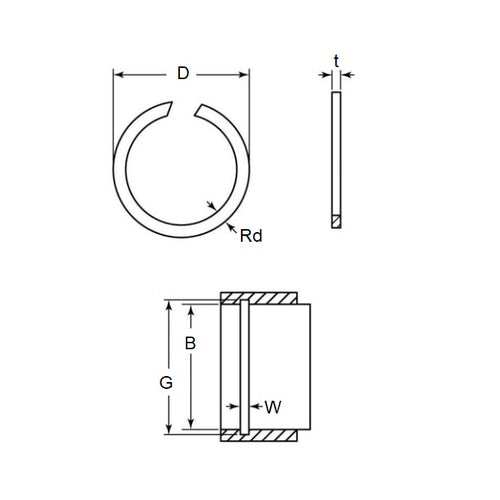

Product Data
- Housing Bore (B) : 8.00 mm
- Clip Thickness (T)
0.80
mm
+ 0 / - 0.10
(Equiv. 0.031 in.) - Groove Dia. (Dg)
8.30
mm
+ 0.09 / - 0.00
(Equiv. 0.327 in.) - Approx. Loose Circlip OD (Dr) 8.50 mm
- Section (Rd) 1.00 mm + 0 / - 0.10
- Groove Width (W) 0.90 mm
- Approx. Loose Clip ID 6.5
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor® DSB-008
- Seeger® SB8
- Seeger® SB8-BLS
- WRI0080SQ
- SB8BLS
- DSB008
