WGS1-100-040-080-R-ACS - Datasheet
MBA
Category Information

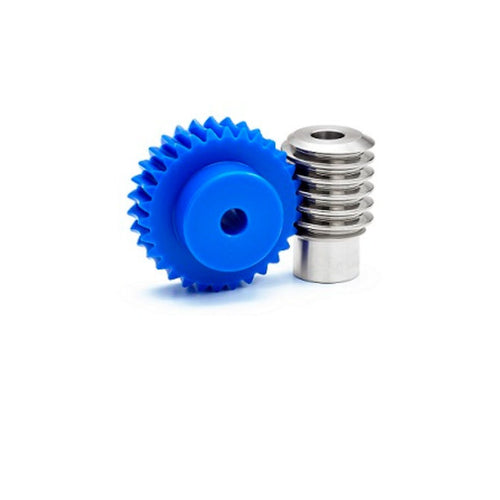

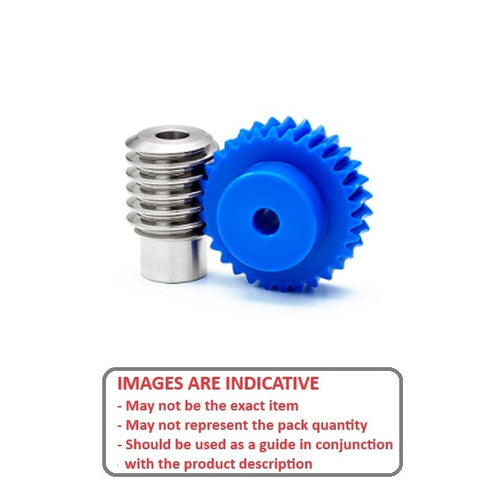

Gears - Worm Sets - Module 1Module 1 Worm Sets Gears. This is the main category in this series
- Acetal gear and steel worm sets.
- Metric sets only.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Pitch : Module 1.0
- Teeth 40
- Bores (Gear / Worm) 8.00 / 6.00 mm
- Direction Right Hand
- Ratio 40 to 1
- Lead Angle 1 Deg
- Face Width (b) 10.00 mm
- Hub Diameter 30.00 mm
- Centre Distance (A) 28.5 mm
- Gear Length (l) 18 mm
- Hub Projection (lh) 8 mm
- Gear Pitch Diameter (da) 40.00 mm
- Material Polyacetal Gear and Steel Worm
