CCE-00478-CZY - Datasheet
ENQUIRE
Category Information

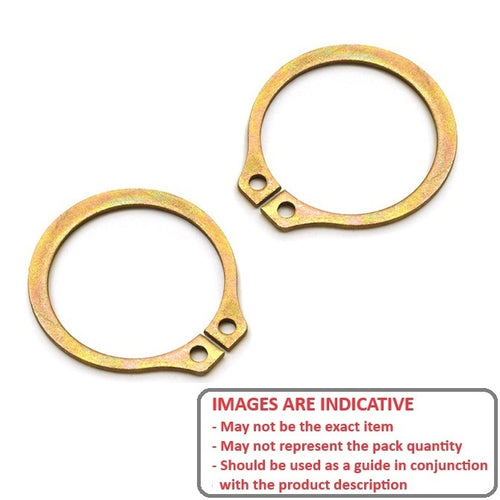

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel

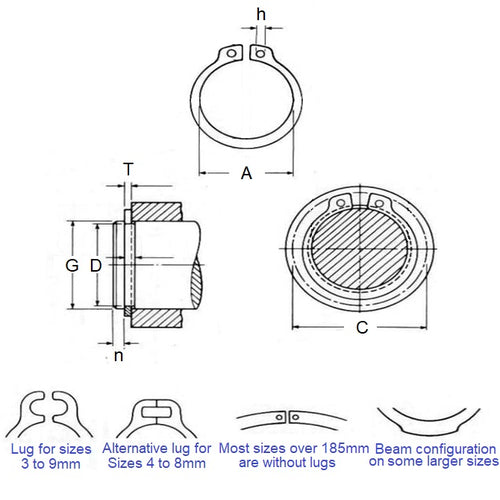

Product Data
- Shaft Diameter (Ds) : 4.78 mm
- Clip Thickness (T)
0.38
mm
+/- 0.051
(Equiv. 0.015 in.) - Groove Dia. (Dg)
4.45
mm
+/- 0.038
(Equiv. 0.175 in.) - Approx. Loose Circlip ID (A) 4.30 mm
- Groove Width (W) 0.50 mm
- Clearance in Groove (C1) 7.26 mm
- Min. Extension (n) 0.56
- Standard MIL-16624
- Material Steel Zinc Plated Yellow
Product Compliance and Data
Additional Resources
Cross References
- NoCor® SH-018-ZD
- SH018ZD
- N14000018AZD
- N1400-0018AZD
