WRE-0079-SQ-O - Datasheet
MBA
Category Information

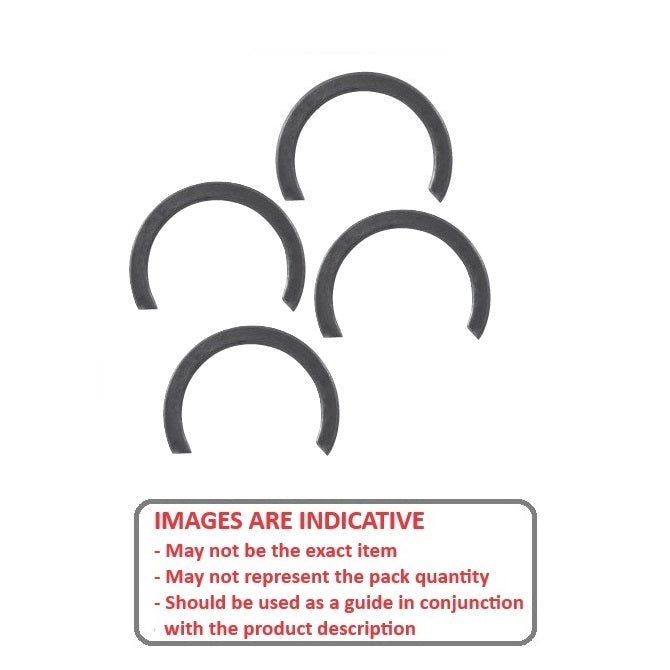

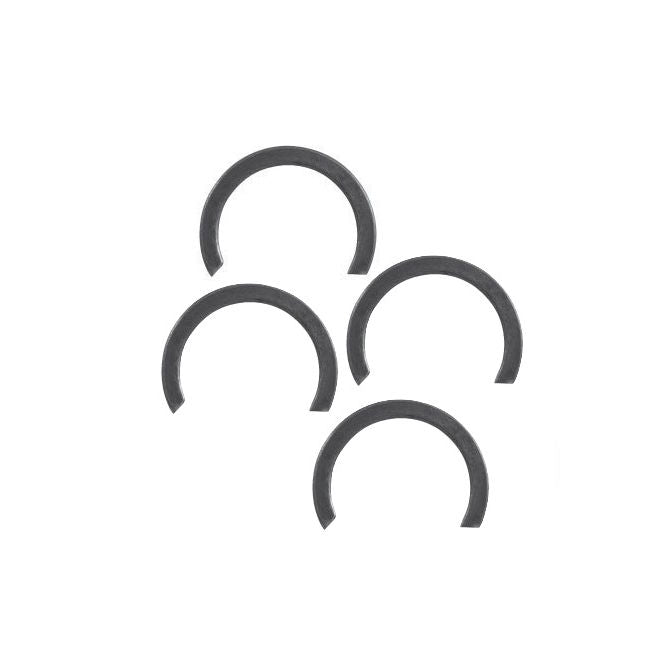

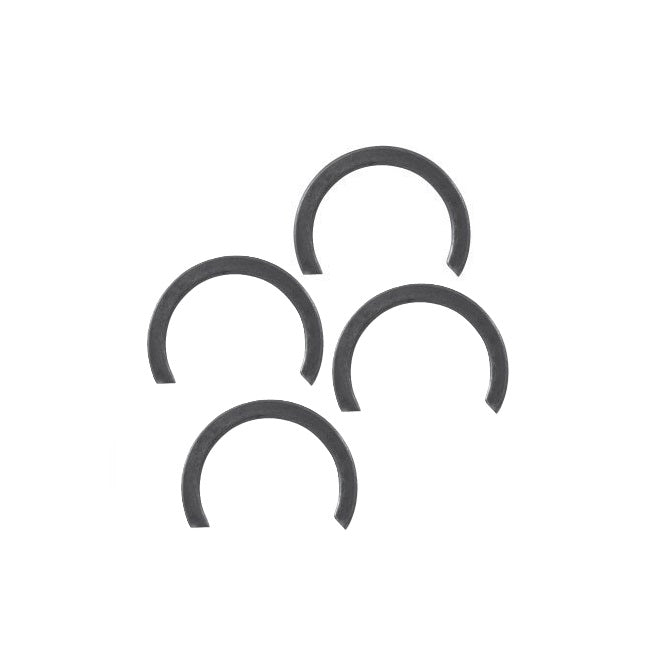

Retaining Rings - External - Snap Rings - Carbon SteelCarbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Carbon sping steel
- Used on the outside diameter of a bearing, shaft or similar equipment
Product Data

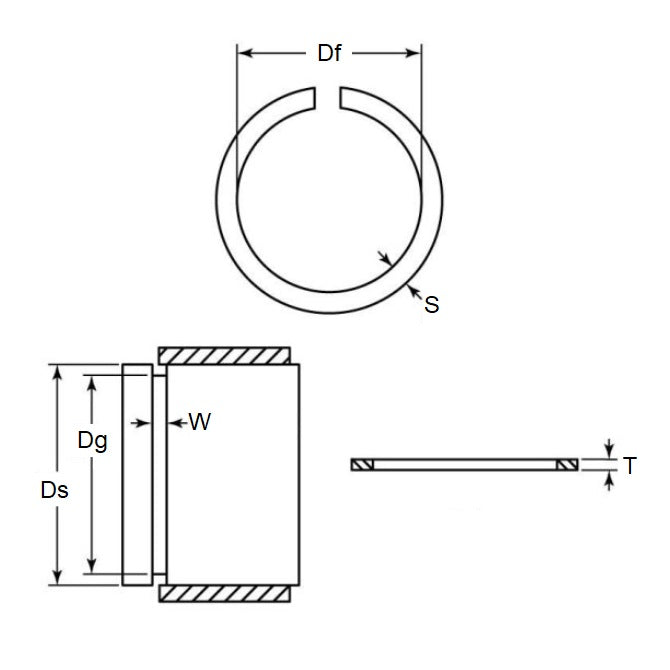

- Shaft or Bearing OD (d1)
:
7.93
mm
(Equiv. 0.312 in.) - Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.) - Groove Dia. (Dg)
7.52
mm
+ 0.08 / - 0.00
(Equiv. 0.296 in.) - Approx. Loose Circlip ID (A) 7.44 mm + 0.00 / - 0.50
- Radial Wall (S) min/max 0.79 mm +/- 0.05
- Groove Width (W) 0.91 mm
- Approx. Loose Clip OD 9.02
- Info Radial Assembly - Open Gap
- Section Profile Square Section
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton 400-216
- Arcon CSO-216
- NoCor XSO-216
- XSO216
- A0600216
- A0600-216
- CSO216
- 400216
