Retaining Rings - Internal - Spiral Rings - Medium-Heavy Duty - Carbon Steel

Carbon Steel Medium-Heavy Duty Spiral Rings Internal Retaining Rings. Includes Series AMI / WHT / Spirolox RRT - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Originally designed to fit NAS50-51 grooves, this series is a popular OEM specification.
  • This two/three turn design is easier to install than the heavy duty RRN option.
  • Equivalent to Associated Spring: AMI, Smalley: WHT, Spirolox and Ramsey: RRT

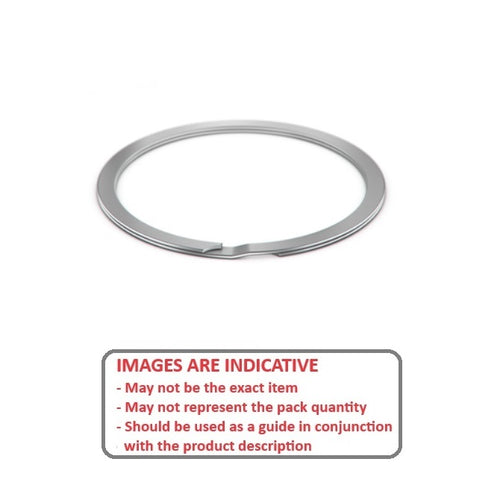

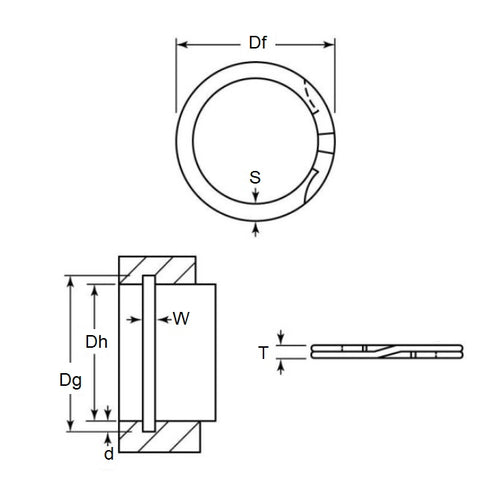

Product Data

  • Housing Bore (B) : 177.80 mm
  • Clip Thickness (T) 4.19 mm +/- 0.13
    (Equiv. 0.165 in.)
  • Groove Dia. (Dg) 185.80 mm
  • Approx. Loose Circlip OD (Dr) 188.82 mm + 1.40 / - 0.00
  • Radial Wall (S) Approx. 7.93 mm +/- 0.16
  • Groove Width (W) 4.52 mm +/- 0.20
  • Approx. Loose Clip ID 172.96 +/- 0.10
  • Groove Depth (d) 4.01
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Associated Spring® AMI-700
  • Huyett® RRT-700
  • Smalley® WHT-700
  • WHT700
  • AMI700
