TR-1500-1520-350-S3 - Datasheet
MBA
Category Information

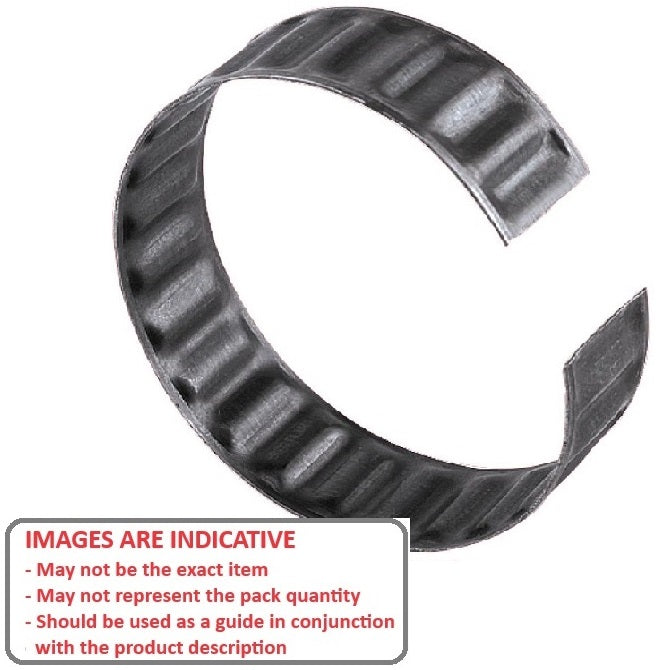

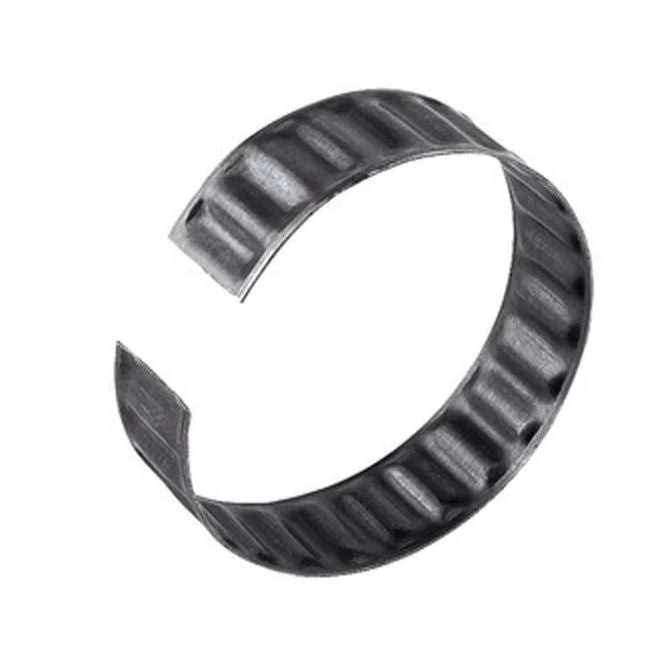

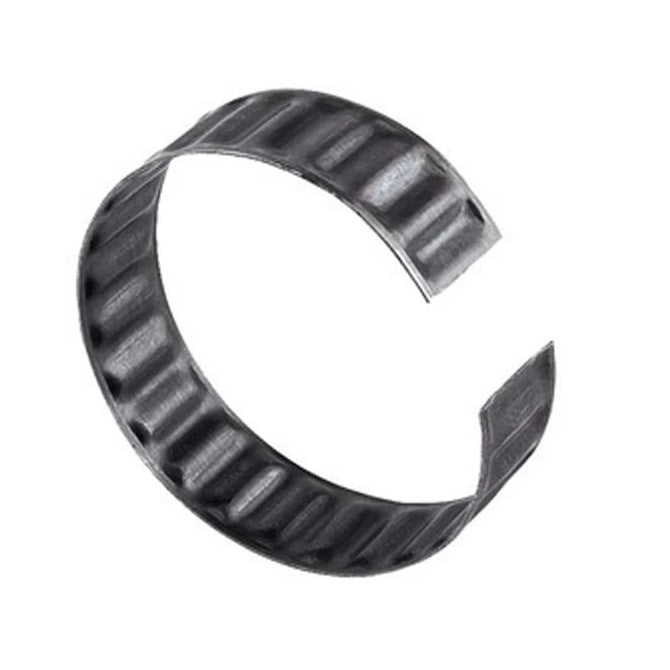

Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data
- Inner Part OD (d)
:
150.00
mm
(Equiv. 5.906 in.) - Housing ID (D)
151.89 to 151.96
mm
(Equiv. 5.98 in.) - Ring Width (B)
35.00
mm
(Equiv. 1.378 in.) - Style For bearing OD
- Max. Radial Load 1469 N
- To Suit OD of Bearing 6314
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- TR150015203503
