BTU0100-060-TS-C - Datasheet
MBA
Category Information

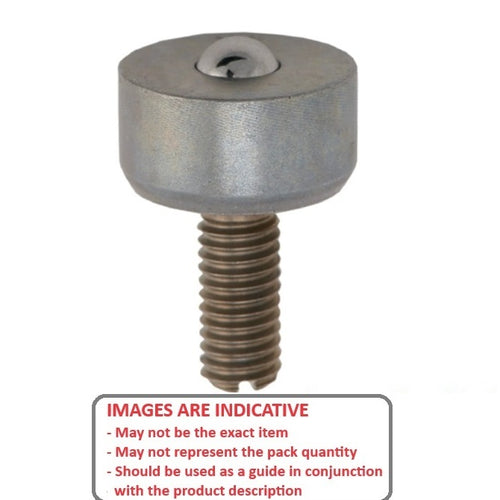

Ball Transfer Units - Screw Stem - Steel - PrecisionPrecision Steel Screw Stem Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Applications include measuring equipment and light weight coil handlers. Guides for small linear motion (eg. photocopier slides). Transfer of material in clean rooms.
- Max Load is applicable when used as a transfer, not as a castor
Product Data

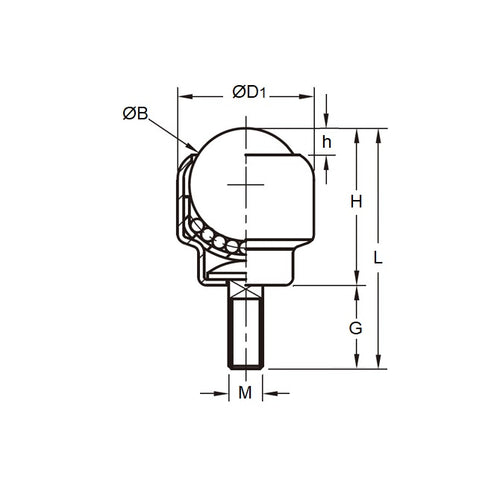

- Max Load : 100 kg
- Height from Base (B) 60.4 mm
- Body Diameter (D) 60.45 mm
- Overall Height (L) 114.3 mm
- Ball Diameter 38.1 mm
- Body Height (H) 60.5 mm
- Thread 3/4-18 UNF
- Stud Length (Sl) 40.6 mm
- 1 Type
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SKF-7154
- SKF7154
