GR-M15F-2000-A - Datasheet
ENQUIRE
Category Information

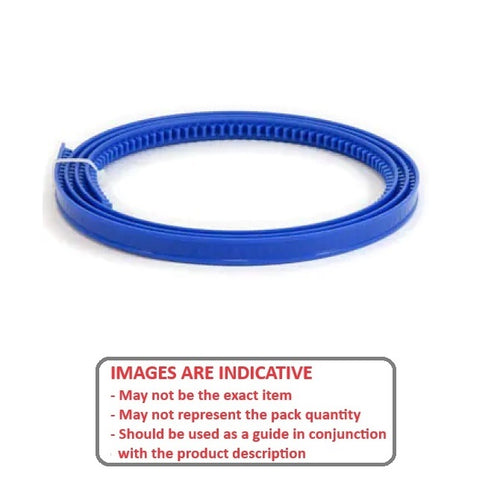

Gears - Rack - Imperial - Flexible - StandardStandard Flexible Imperial Rack Gears. Blue acetal. Ideal for curved or irregular surfaces. Can fit a bent radius as small as 75mm.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- 20 Degree Pressure Angle.
- Resistant to weak acids and alkalis, oil, grease, petrol, alcohol, ketones.
- Working temperature 100 Deg. C, Intermittent to 149 Deg. C.
- See optional rack clamps and guide rails.
- Longer lengths available on special order.
Product Data

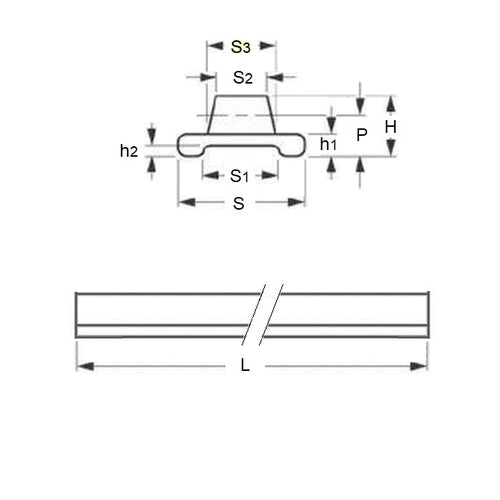

- Module : 1.5
- Length (L) 2000 mm
- Width (S) 12.000 mm
- Gap Width (S1) 8.000
- Gap Height (h2) 1.000 mm
- Height (H) 5.70 mm
- Width of tooth base (S3) 6.50 mm
- Width of tooth top (S2) 5.00 mm
- Pitch Height (P) 4.200
- Min. Internal Bend Radius 100 mm
- Min. External Bend Radius 150 mmm
