Collection: Springs - Constant Force
4 Products In this Selection
301 Stainless Steel
Mounting hole specifications will be supplied on request. These springs are usually mounted on a drum and the free end attached to a loading force like a counterbalance.
Free ID may vary to meet load specification.
Load capacity can be increased by using multiple strips in tandem, back to back or laminated.
Be sure to leave at least 40mm coiled on the drum at full extension. The spring ID will wrap tightly on the drum so that most applications require no fastening to the drum.
Mounting hole specifications will be supplied on request. These springs are usually mounted on a drum and the free end attached to a loading force like a counterbalance.
Free ID may vary to meet load specification.
Load capacity can be increased by using multiple strips in tandem, back to back or laminated.
Be sure to leave at least 40mm coiled on the drum at full extension. The spring ID will wrap tightly on the drum so that most applications require no fastening to the drum.
Load | Band Length | Thickness (t) | Band Width (W) | Free ID (Ref. Only) | Drum Diameter |

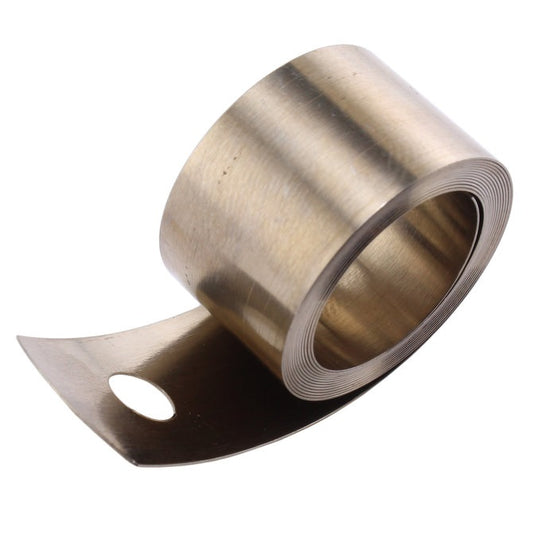

Indicative Image |
---|---|---|---|---|---|---|
1.0 Newtons +/- 10% |
406.4 mm |
0.102 mm |
6.35 mm |
13.10 mm |
16.0 |
|
Material: Spring Steel Music Wire Cycles Life: 20000 Mounting Holes: 1 mm Initial Extension (f1): 24130.0 mm Max. Working Deflection (f2): 304.8 | ||||||
Part Number: CFS-0010-0406-064-S1 (10 Pcs) Springs - 1 Newtons x 406.4 mm x 0.102 mm
56 (560 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
/
per
Per 10
|
||||||
Load | Band Length | Thickness (t) | Band Width (W) |

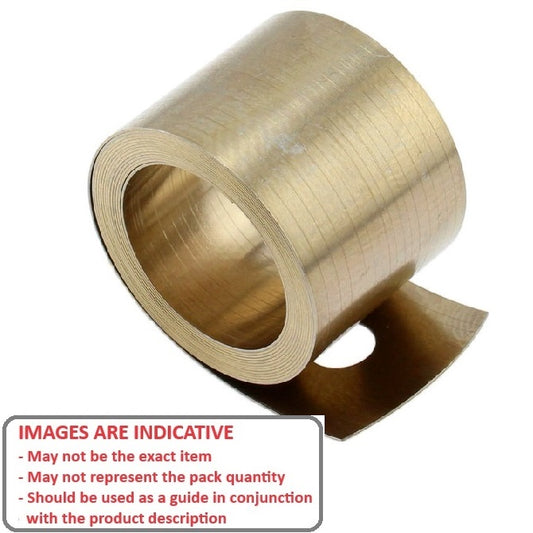

Indicative Image |
||
1.0 Newtons +/- 10% |
406.4 mm |
0.102 mm |
6.35 mm |
|||
Material: Spring Steel Music Wire Free ID (Ref. Only): 13.10 mm Drum Diameter: 16.0 Cycles Life: 20000 Mounting Holes: 1 mm Initial Extension (f1): 24130.0 mm Max. Working Deflection (f2): 304.8 | ||||||
Part Number: CFS-0010-0406-064-S1 (10 Pcs) Springs - 1 Newtons x 406.4 mm x 0.102 mm
56 (560 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity | Regular price
$20.00 AUD
Regular price
Unit price
/
per
Per 10
|
||||||
|
||||||
1.4 Newtons +/- 10% |
381.0 mm |
0.102 mm |
6.35 mm |
11.11 mm |
13.5 |
|
Material: Spring Steel Music Wire Cycles Life: 13000 Mounting Holes: 1 mm Initial Extension (f1): 20.3 mm Max. Working Deflection (f2): 304.8 | ||||||
Part Number: CFS-0014-0381-064-S1 (10 Pcs) Springs - 1.4 Newtons x 381 mm x 0.102 mm
267 (2670 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price
$20.00 AUD
Regular price
Unit price
/
per
Per 10
|
||||||
1.4 Newtons +/- 10% |
381.0 mm |
0.102 mm |
6.35 mm |
|||
Material: Spring Steel Music Wire Free ID (Ref. Only): 11.11 mm Drum Diameter: 13.5 Cycles Life: 13000 Mounting Holes: 1 mm Initial Extension (f1): 20.3 mm Max. Working Deflection (f2): 304.8 | ||||||
Part Number: CFS-0014-0381-064-S1 (10 Pcs) Springs - 1.4 Newtons x 381 mm x 0.102 mm
267 (2670 pcs) Available Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity | Regular price
$20.00 AUD
Regular price
Unit price
/
per
Per 10
|
||||||
|
||||||
8.8 Newtons +/- 10% |
812.8 mm |
0.254 mm |
15.88 mm |
28.18 mm |
33.8 |
|
Material: Spring Steel Music Wire Cycles Life: 13000 Mounting Holes: 1 mm Initial Extension (f1): 50.8 mm Max. Working Deflection (f2): 609.6 | ||||||
Part Number: CFS-0088-0813-159-S1-TW Springs - 8.8 Newtons x 812.8 mm x 0.254 mm
558 Available | Backorders for more can be expected around Tue, Dec 31, 2024 Regular price
$16.86 AUD
Regular price
Unit price
/
per
Per Each
|
||||||
8.8 Newtons +/- 10% |
812.8 mm |
0.254 mm |
15.88 mm |
|||
Material: Spring Steel Music Wire Free ID (Ref. Only): 28.18 mm Drum Diameter: 33.8 Cycles Life: 13000 Mounting Holes: 1 mm Initial Extension (f1): 50.8 mm Max. Working Deflection (f2): 609.6 | ||||||
Part Number: CFS-0088-0813-159-S1-TW Springs - 8.8 Newtons x 812.8 mm x 0.254 mm
558 Available | | Backorders for more can be expected around Tue, Dec 31, 2024 Regular price
$16.86 AUD
Regular price
Unit price
/
per
Per Each
|
||||||
|
||||||
25.9 Newtons +/- 10% |
1371.6 mm |
0.508 mm |
31.75 mm |
66.68 mm |
80.3 |
|
Material: Spring Steel Music Wire Cycles Life: 20000 Mounting Holes: 1 mm Initial Extension (f1): 120.7 mm Max. Working Deflection (f2): 914.4 | ||||||
Part Number: CFS-0259-1372-318-S1-TW Springs - 25.9 Newtons x 1371.6 mm x 0.508 mm
94 Available | Backorders for more can be expected around Tue, Dec 31, 2024 Regular price
$44.41 AUD
Regular price
Unit price
/
per
Per Each
|
||||||
25.9 Newtons +/- 10% |
1371.6 mm |
0.508 mm |
31.75 mm |
|||
Material: Spring Steel Music Wire Free ID (Ref. Only): 66.68 mm Drum Diameter: 80.3 Cycles Life: 20000 Mounting Holes: 1 mm Initial Extension (f1): 120.7 mm Max. Working Deflection (f2): 914.4 | ||||||
Part Number: CFS-0259-1372-318-S1-TW Springs - 25.9 Newtons x 1371.6 mm x 0.508 mm
94 Available | | Backorders for more can be expected around Tue, Dec 31, 2024 Regular price
$44.41 AUD
Regular price
Unit price
/
per
Per Each
|
||||||
|
