Y1588-159C-R-CZ - Datasheet

MBA

Category Information

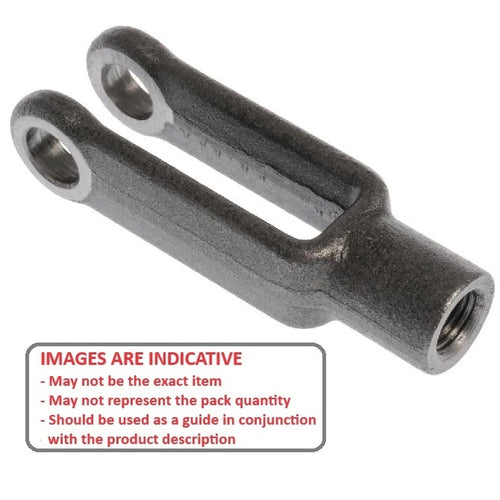

Yoke Ends - Threaded

Threaded Yoke Ends. Linkage connectors with threaded ends.

  • A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
  • It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
  • Yoke ends require a clevis pin and cotter pin for secure attachment.
  • Drop forged steel machined to SAE standards
  • Also see clevis joints

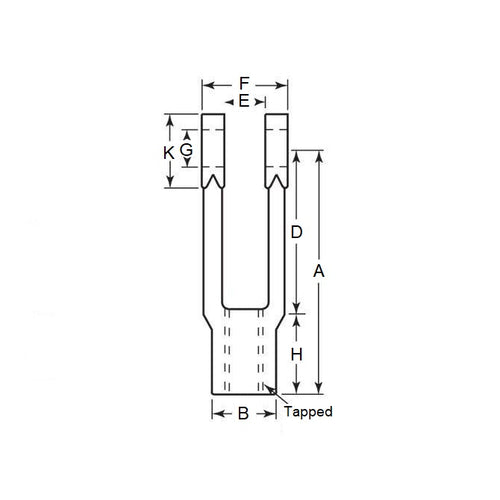

Product Data

  • Effective Length (A) : 125.43 mm
  • Body Diameter (B) 27.00 mm
  • Gap (E) +/- 0.38 17.48 mm
  • Width (F) +/- 0.38 34.93 mm
  • Hole Size (G) +0.25 15.875 mm
  • Thread Size 5/8-11 UNC
  • Thread Direction Right
Country of Origin: US
