KLI-000-254-22 - Datasheet

MBA

Category Information

Thread Repair - Inserts - Keylocking

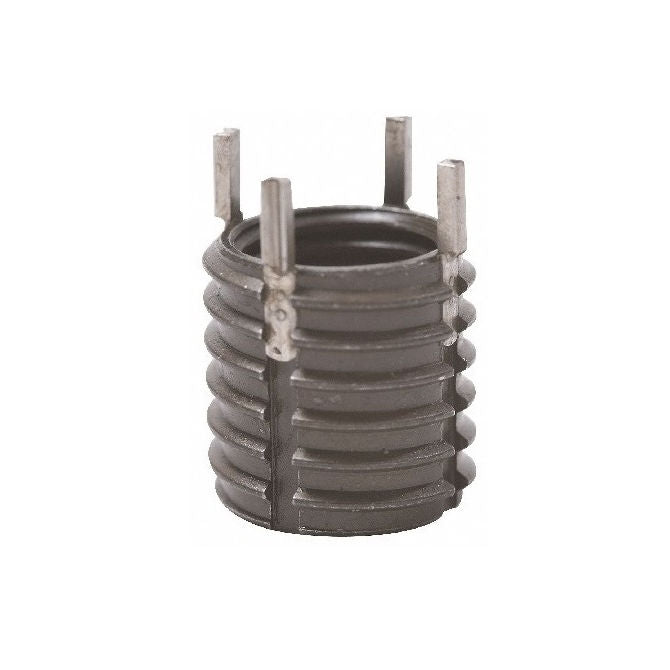

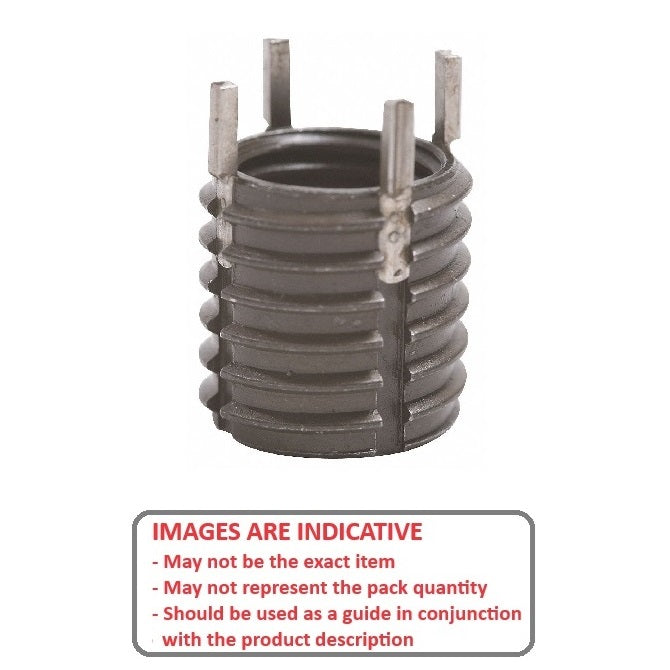

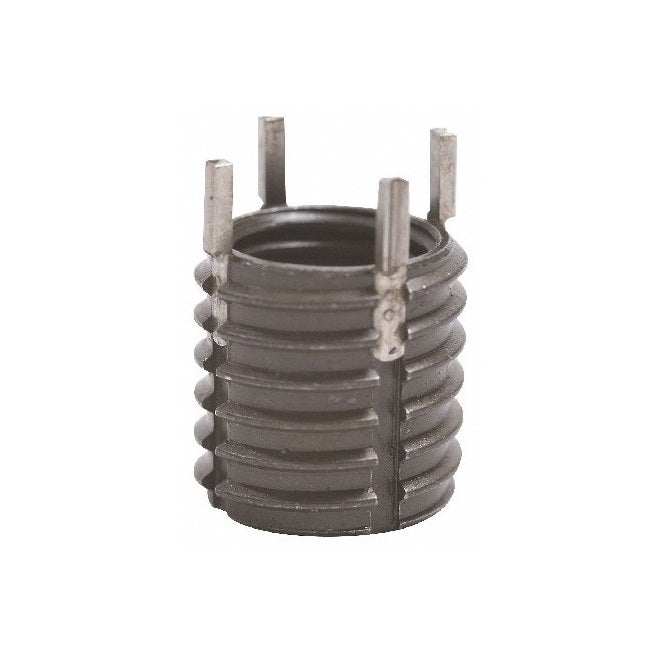

Keylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.

  • Steel or 303 Stainless Steel as indicated in the tables
  • Maximum strength and reliability.
  • Positive mechanical lock against rotation:.
  • The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
  • Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.

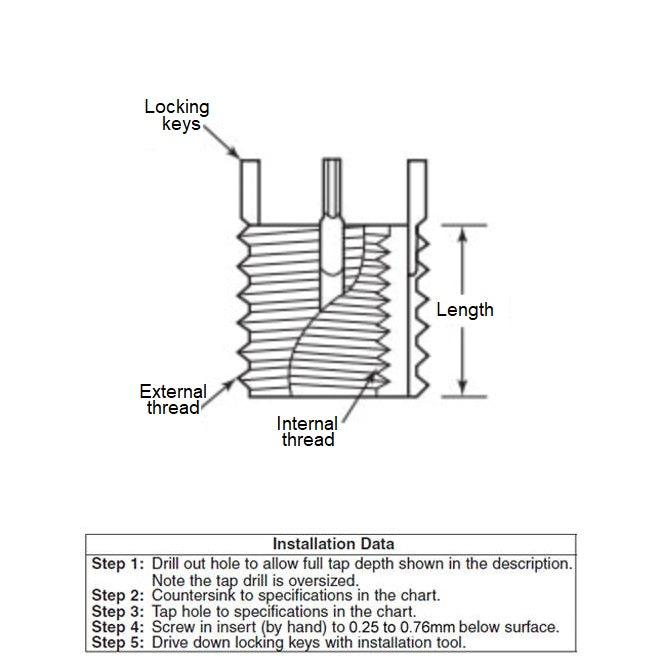

Product Data

  • Internal Thread : SOLID - Tap your own internal thread
  • External Thread 1-12 UNC
  • Length 22.098 mm
    (Equiv. 0.87 in.)
  • Tap Drill Diameter 21.00 mm
  • Countersink Diameter 22.352 mm
  • Locking Keys 4
  • Tapped Hole Depth 25.400 mm
  • Removal Drill Size 21.431 mm
  • Removal Drill Depth 4.763 mm
  • Installation Tool KLI-64809RS
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KLI66009
  • KLI-66009
