AC-2525-S - Datasheet

MBA

Category Information

Shock Absorbers - Hydraulic - Non-Adjustable - C-Jac

C-Jac Non-Adjustable Hydraulic Shock Absorbers. Self compensation

    Product Data

    Special Preset Fixed Damping Two Stage Absorption Type

    • Stroke : 25.0 mm
    • Thread (C) M25x1.5
    • Length (A) 141.5 mm
    • Shaft Size (D) 8.0 mm
    • Weight 330 g
    • Body Length (B) 90.0 mm
    • Tip Length x Diameter (CxE) 18.5 x 22 mm
    • Figure Special Preset Damping
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      View full details

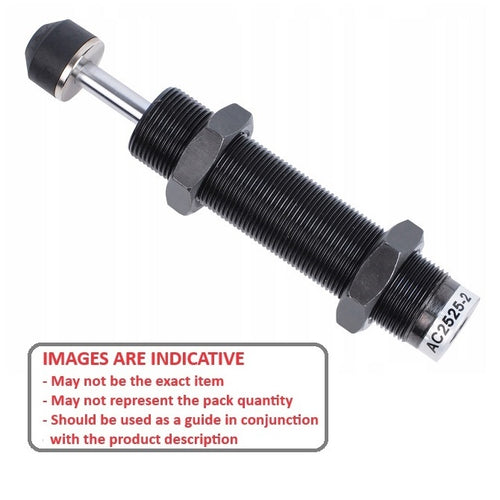

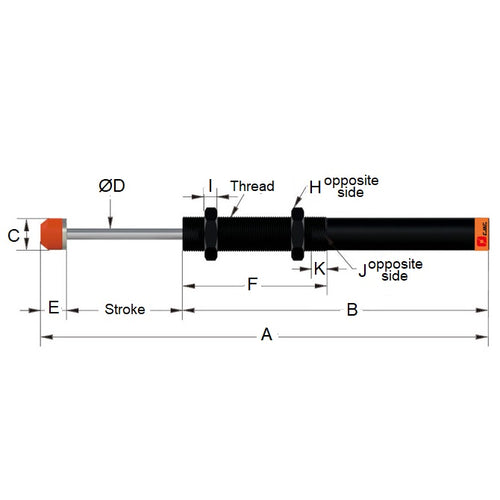

      AC-2525-SDiagramAC-2525-SImage
