Miniature Bearings Australia
0R-0050-0300-T2O - Datasheet
MBA
Category Information

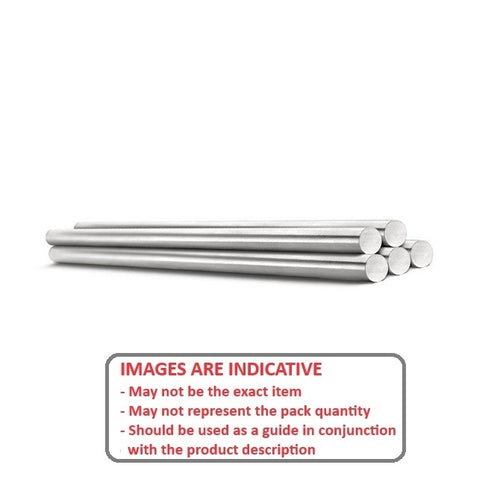

Rod - Round - Titanium - Ti-Gr2-TA1Ti-Gr2-TA1 Titanium Round Rod. CP2 Commercially Pure Titanium Grade 2. Tensile Strength 35.2 kgf/mm2. Yield Strength 28.2 kgf/mm2. Elongation 20 Percent.
- An expanded range may be available on special order. Please enquire.
- Commercially pure for general industrial corrosion applications. UNS R50400.
- Widely used in power generation, chemical processing, aerospace and medical applications.
- Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.3, O 0.25, Ti Balance.
- Rod with undersized tolerances is suitable for use with precision ground bearings with inner rings. HRB 74. Surface Finish Ra 0.8-1.6 um. Not suitable for running needle bearings directly.
- Rod with oversized tolerances is suitable for pulleys or gears requiring interference fits, or for machining to your required tolerances
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter (d)
:
5.000
mm
- 0.005 / - 0.030
(Equiv. 0.197 in.) - Length (L) 300 mm
- Material Ti-Gr2/TA1
- Chamfered
- End Colour Code Blue / White
- Material Titanium - Ti-Gr2 - TA1
