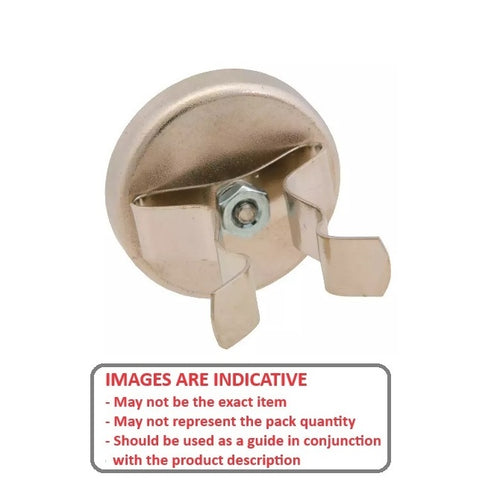

MAG-CP-052-59-17-CL-C - Datasheet

MBA

Category Information

Magnets - Cup Assemblies with Clips

Cup Assemblies with Clips Magnets. This is the main category in this series

  • Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
  • Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.

Product Data

  • Diameter (A) : 51.56 mm
    (Equiv. 2.03 in.)
  • Overall Height 58.67 mm
    (Equiv. 2.31 in.)

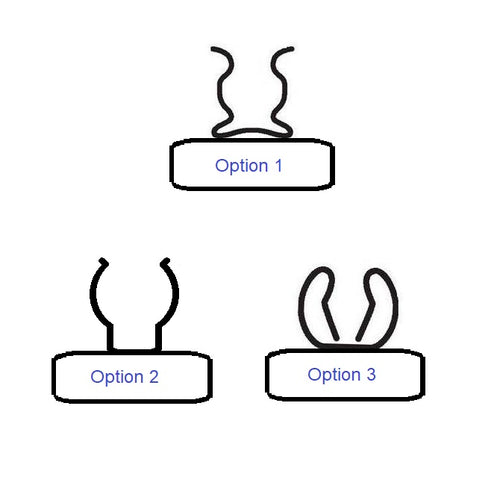

  • Clip Style Option 1
  • Clip Material Nickel Plated
  • Max Holding Value 17.24 kg
  • Opening Range 16.00 - 31.75 mm
  • Material Nickel Plated
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • IM-402
    • IM402
