Miniature Bearings Australia

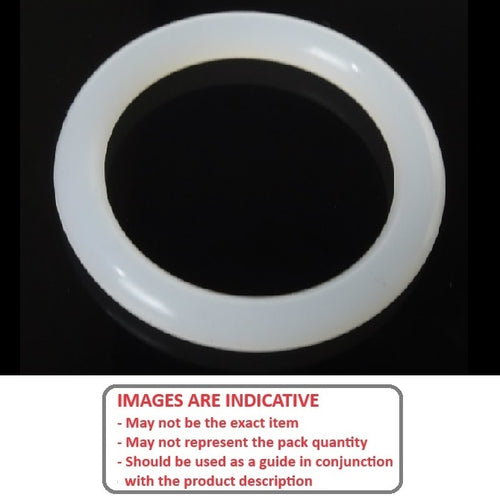

OR-03452-353-S70-220-C - Datasheet
MBA
Category Information
O-Rings - Silicone Rubber PacksSilicone Rubber Packs O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food applications.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance. Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data
- Inside Diameter (ID)
:
34.52
mm
(Equiv. 1.359 in.) - Section (t)
3.53
mm
(Equiv. 0.139 in.) - Colour Clear
- Hardness Duro 70
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- 1283N93
- ORB03452353S70220C
- ORB-03452-353-S70-220-C
- BS220-SIL70-CLEAR
- BS220SIL70CLEAR
