OR-30439-353-S70-278-R - Datasheet

MBA

Category Information

O-Rings - Silicone Rubber Packs

Silicone Rubber Packs O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food applications.

  • Mulitple packs may be supplied together in a singular package.
  • Temperature Range: -70 Deg C to +200 Deg C.
  • Good dialectric properties and resistance to ozone and oxygen attack.
  • Retains flexibility at high and low temperatures.
  • Poor strength and tear resistance. Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
  • If you need a larger quantity, please check the BULK category for these o-rings.

Product Data

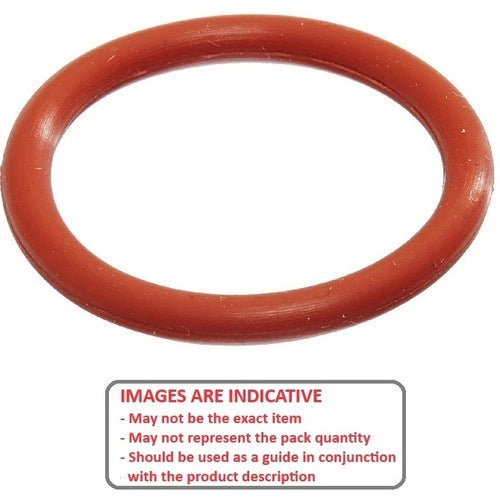

  • Inside Diameter (ID) : 304.39 mm
    (Equiv. 11.984 in.)
  • Section (t) 3.53 mm
    (Equiv. 0.139 in.)
  • Colour Red
  • Hardness Duro 70
  • Material Silicone Rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 1283N243
  • ORB30439353S70278R
  • ORB-30439-353-S70-278-R
  • BS278SIL70
  • BS278SIL70RED
  • BS278-SIL70-RED
