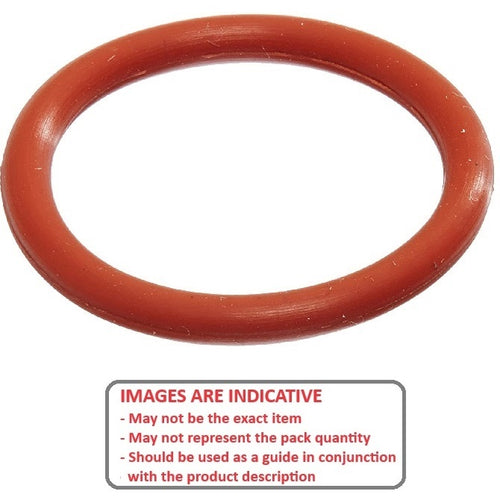

OR-02316-533-S70-317-R - Datasheet
MBA
Category Information
O-Rings - Silicone Rubber PacksSilicone Rubber Packs O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food applications.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance. Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data

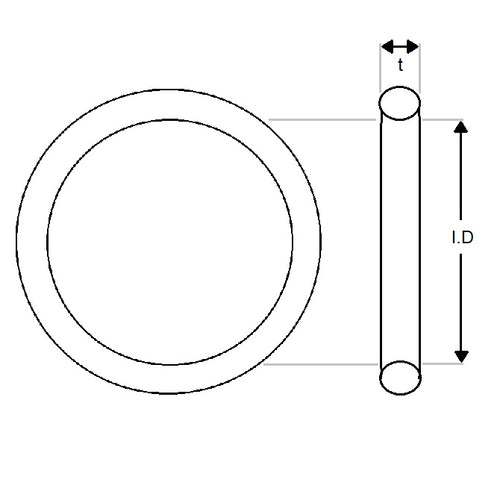

- Inside Diameter (ID)
:
23.16
mm
(Equiv. 0.912 in.) - Section (t)
5.33
mm
(Equiv. 0.21 in.) - Colour Red
- Hardness Duro 70
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- 1283N259
- ORB02316533S70317R
- ORB-02316-533-S70-317-R
- BS317-SIL70
- BS317SIL70
- BS317-SIL70-RED
- BS317SIL70RED
