ORB-43066-699-CR70-463 - Datasheet

MBA

Category Information

O-Rings - General Purpose - Neoprene Rubber Bulk

Neoprene Rubber Bulk General Purpose O-Rings. Excellent resistance to ageing and weathering effects.

  • Neoprene and Nitrile O-Rings with excellent resistance to ageing and weathering effects.
  • Mulitple packs may be supplied together in a singular package.
  • Temperature Range: -20 Deg C to +100 Deg C.
  • Resistant to ozone and refrigeration chemicals such as freon 12 and 22.
  • Moderate resistance to swelling in mineral oils, greases and water.
  • Not resistant to aromatic compounds such as benzene, toulene, chlorinated hydrocarbons, esters, ethers or ketones.
  • Bulk stock orders are the most economical way to purchase, but smaller packs are available for some sizes.

Product Data

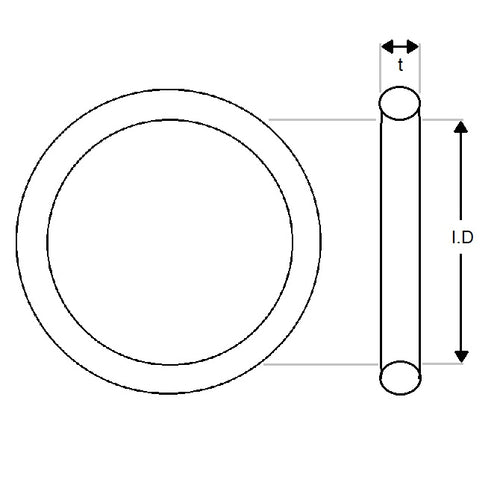

  • Inside Diameter (ID) : 430.66 mm
    (Equiv. 16.955 in.)
  • Section (t) 6.99 mm
    (Equiv. 0.275 in.)
  • Colour Black
  • Hardness Duro 70
  • Material Neoprene Rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • OR43066699CR70463
  • OR-43066-699-CR70-463
