OR-13589-699-N70-432 - Datasheet
MBA
Category Information

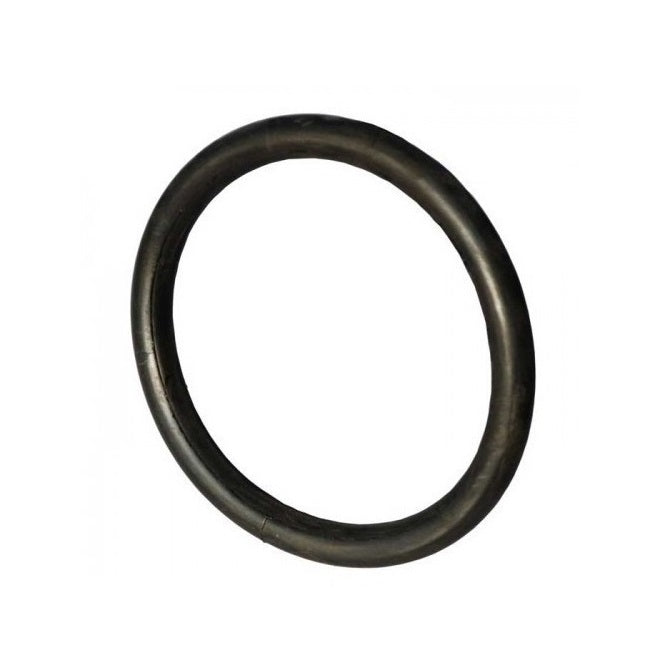

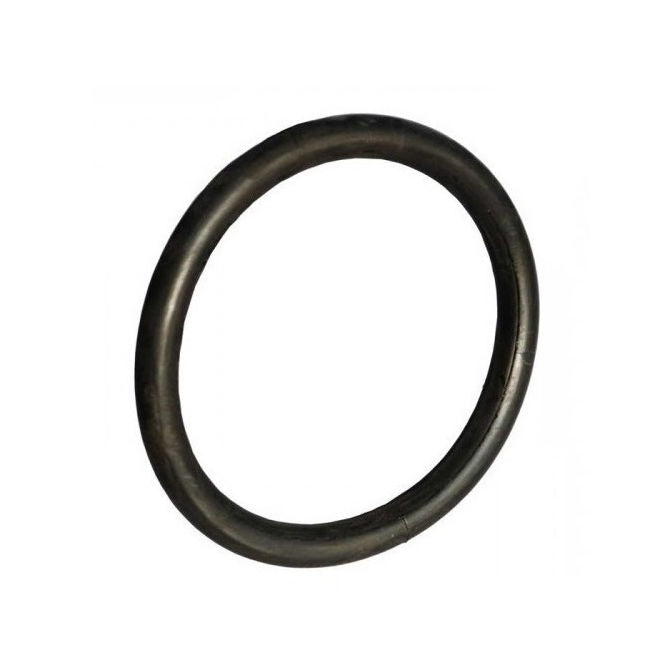

O-Rings - General Purpose - Nitrile Rubber PacksNitrile Rubber Packs General Purpose O-Rings. General purpose. Includes o-rings for dental handpiece applications.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -30 Deg C to +90 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data
- Inside Diameter (ID)
:
135.89
mm
(Equiv. 5.35 in.) - Section (t)
6.99
mm
(Equiv. 0.275 in.) - Colour Black
- Hardness Duro 70
- Material Nitrile (NBR, BUNA-N)
Product Compliance and Data
Additional Resources
Cross References
- 9452K419
- ORB-13589-699-N70-432
- ORB13589699N70432
- BS432
- BS432NBR70
- BS432-NBR70
