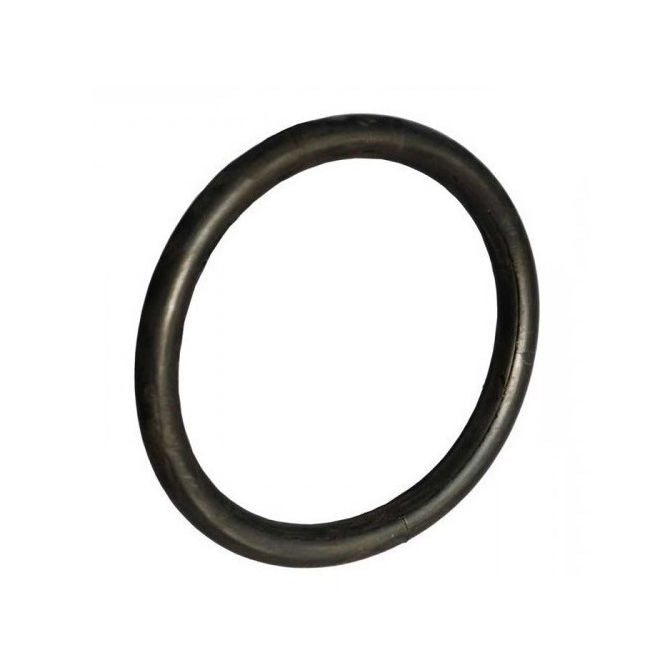

OR-01207-533-CR70-310 - Datasheet

MBA

Category Information

O-Rings - General Purpose - Neoprene Rubber Packs

Neoprene Rubber Packs General Purpose O-Rings. Excellent resistance to ageing and weathering effects.

  • Mulitple packs may be supplied together in a singular package.
  • Temperature Range: -20 Deg C to +100 Deg C.
  • Resistant to ozone and refrigeration chemicals such as freon 12 and 22.
  • Moderate resistance to swelling in mineral oils, greases and water.
  • Not resistant to aromatic compounds such as benzene, toulene, chlorinated hydrocarbons, esters, ethers or ketones.
  • If you need a larger quantity, please check the BULK category for these o-rings.

Product Data

  • Inside Diameter (ID) : 12.07 mm
    (Equiv. 0.475 in.)
  • Section (t) 5.33 mm
    (Equiv. 0.21 in.)
  • Colour Black
  • Hardness Duro 70
  • Material Neoprene Rubber
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • ORB-01207-533-CR70-310
  • ORB01207533CR70310
  • BS310CR70
  • BS310-CR70
