WEB-8RS - Datasheet
MBA
Category Information

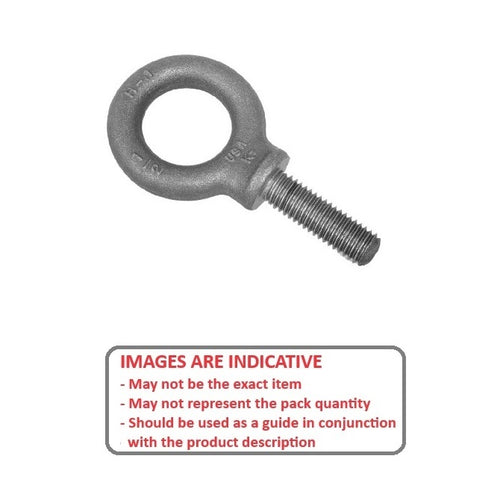

Eye Bolts - Threaded Shank - Shouldered - Carbon Steel - Zinc PlatedZinc Plated Carbon Steel Shouldered Threaded Shank Eye Bolts. Forged zinc plated carbon steel.
- Fastener with a loop or eye at one end, and a fully threaded shank on the other.
- Used to attach ropes or cables to secure or lift objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Regular eye bolts for vertical lifting and shoulder eye bolts that can handle angled loads.
- Zinc plated carbon steel.
- Should not be used for angular lifts greater than 45o. Safety swivel hoist rings are recommended for such applications.
Product Data

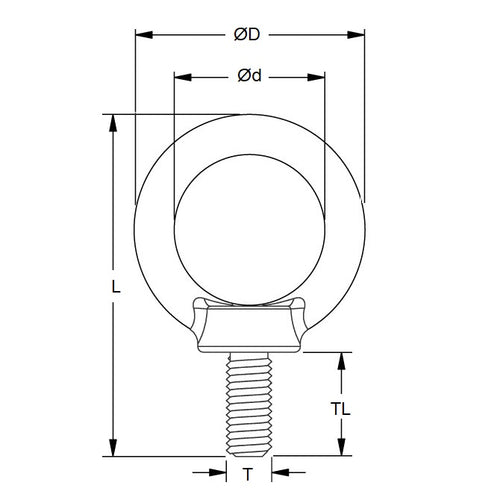

- Thread Size : M36 (36x4mm)
- Shank Length
54.000
mm
(Equiv. 2.126 in.) - Eye Inside Diameter
70.000
mm
(Equiv. 2.756 in.) - Rated Capacity 5200 Kg
Product Compliance and Data
Additional Resources
Cross References
- 3170T49
