Miniature Bearings Australia
MEB-105RS - Datasheet
MBA
Category Information

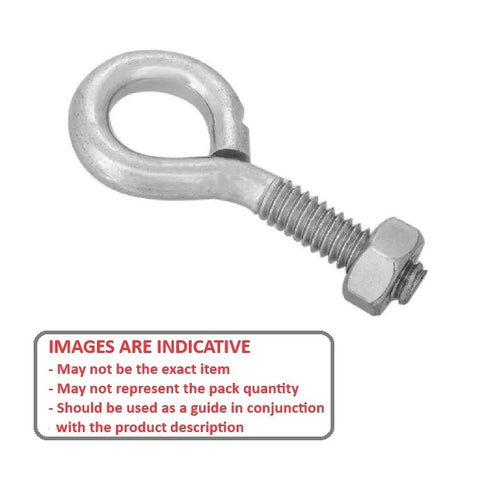

Eye Bolts - Bent - Stainless SteelStainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.
- Fastener with a loop or eye at one end, and a threaded shank on the other.
- Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Complete with nut.
- Rolled threads.

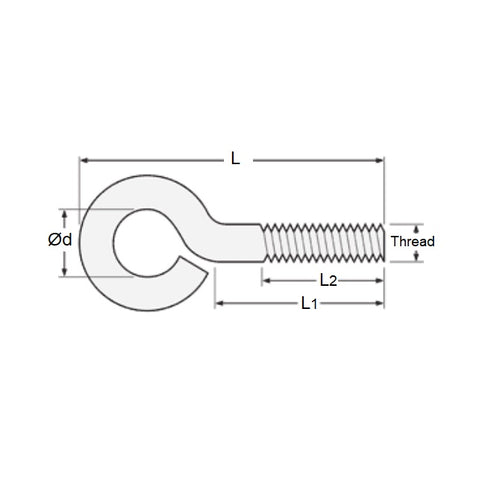

Product Data
- Thread : M20 (20x2.5mm)
- Overall Length
150.000
mm
(Equiv. 5.906 in.) - Shank Length
125.000
mm
(Equiv. 4.921 in.) - Thread Length 20.000 mm
- Eye Inside Diameter 20.000 mm
