NT025M-HX-CZ - Datasheet
MBA
Category Information

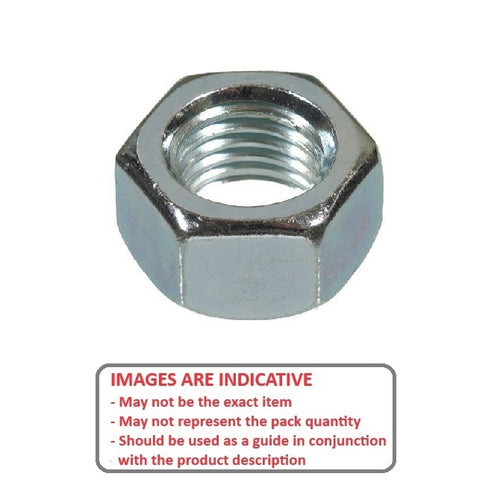

Nuts - Hexagonal - Full - SteelSteel Full Hexagonal Nuts. UNC - UNF - BA - METRIC. Plain and Zinc Plated.
- An expanded range may be available on special order. Please enquire.

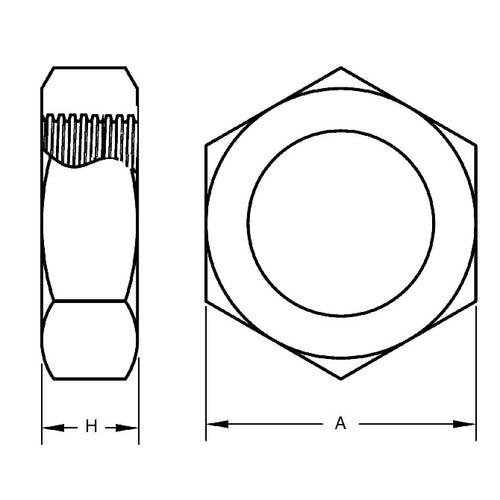

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : M2.5 (2.5x0.45mm)
- Thickness (H) 2 mm
- Across Flats (A/F) 5.00 mm
- Type Standard
- Pitch 0.450 mm
- Threads Per Inch 56.44 TPI
- Material Steel - Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 90591A113
- MicroFast® HNM025
- Hitech MSHNZP25
