MEB-95RS - Datasheet

MBA

Category Information

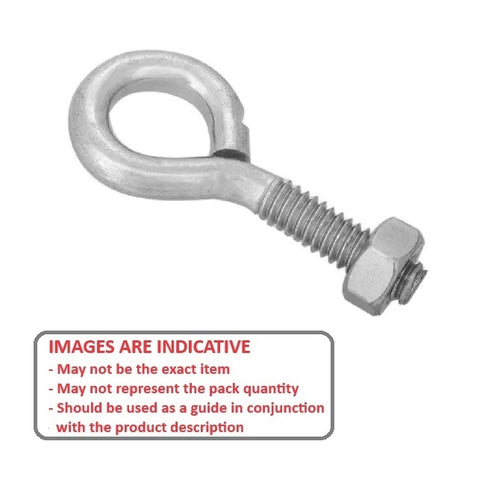

Eye Bolts - Bent - Stainless Steel

Stainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.

  • Fastener with a loop or eye at one end, and a threaded shank on the other.
  • Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
  • Complete with nut.
  • Rolled threads.

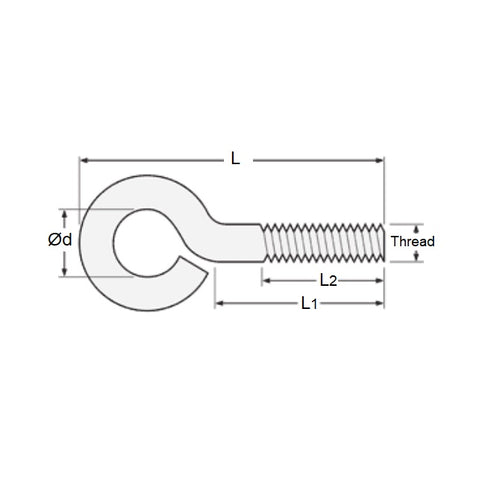

Product Data

  • Thread : M16 (16x2mm)
  • Overall Length 115.000 mm
    (Equiv. 4.528 in.)
  • Shank Length 95.000 mm
    (Equiv. 3.74 in.)
  • Thread Length 16.000 mm
  • Eye Inside Diameter 16.000 mm
Country of Origin: US
