MEB-10RS - Datasheet
MBA
Category Information

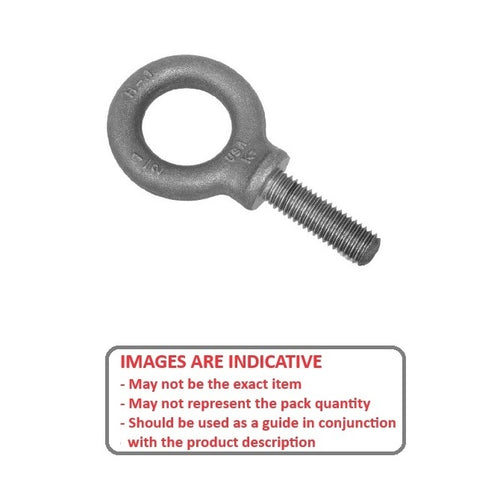

Eye Bolts - Threaded Shank - Shouldered - Carbon Steel - StandardStandard Carbon Steel Shouldered Threaded Shank Eye Bolts. Forged self coloured carbon steel.
- Fastener with a loop or eye at one end, and a fully threaded shank on the other.
- Used to attach ropes or cables to secure or lift objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Regular eye bolts for vertical lifting and shoulder eye bolts that can handle angled loads.
- Forged self coloured carbon steel.
- Should not be used for angular lifts greater than 45o. Safety swivel hoist rings are recommended for such applications.

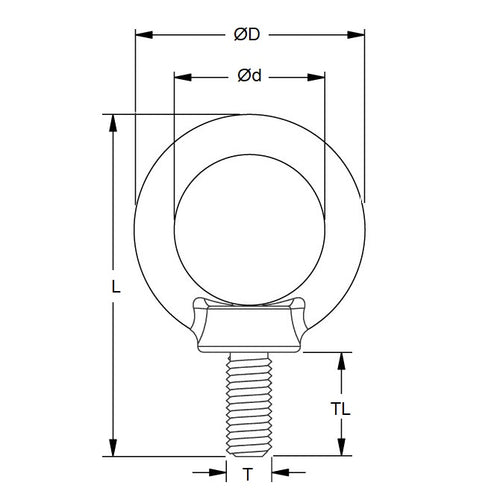

Product Data
- Thread Size : M10 (10x1.5mm)
- Shank Length
17.000
mm
(Equiv. 0.669 in.) - Eye Inside Diameter
25.000
mm
(Equiv. 0.984 in.) - Rated Capacity 227 Kg
