KHD-318RS - Datasheet
KIPP
Category Information

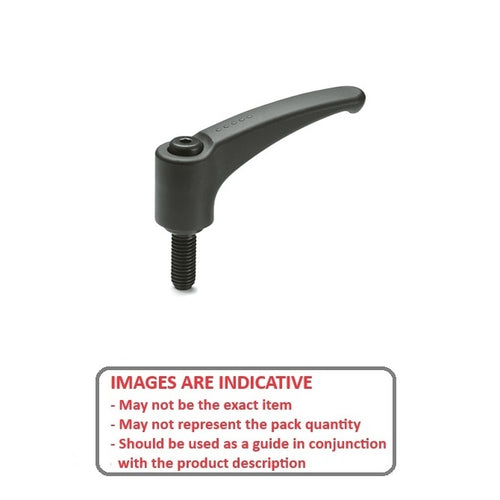

Handles - Adjustable StudAdjustable Stud Handles. Adjustable Handles with Stud
- Either Black Plastic with fibreglass reinforcing or Powdered Coated Zinc Novo-Grip Adjustable handles with steel stud.
- These handles act as a standard clamping lever, yet can be adjusted to 16-26 positions depending on size. Pulling up on handle disengages, while the stud remains stationary.
- Allowing you to adjust the handle to the desired position. Releasing the handle reengages it for tightening and loosening. Allows for convenient positioning for Maxium leverage as well as saving space.
Product Data

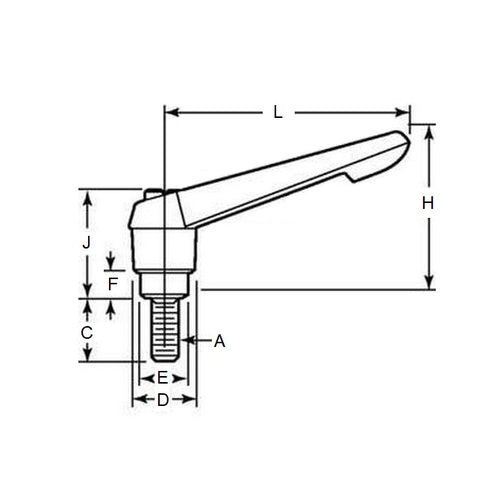

- Thread (A) : M10 (10x1.5mm)
- Thread Length (C )
20.0
mm
(Equiv. 0.787 in.) - Material Plastic with fibreglass reinforcement
- Handle Length (L) 65.0 mm
- Shoulder Diameter (E) 13.5 mm
- Handles Height (H) 43.0 mm
- Shoulder Height (F) 6.5 mm
- Base Height (J) 29.0 mm
- Approx Base Diameter (D) 18.0 mm
- Material Plastic and Fibreglass
Product Compliance and Data
Additional Resources
Cross References
- 6324K51-BLACK
- 6324K51BLACK
