GHK1111-1111-152 - Datasheet
ENQUIRE
Category Information

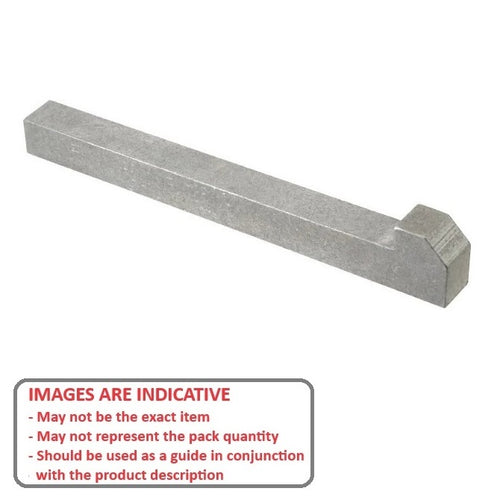

Keys - Gib Head - SteelSteel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.

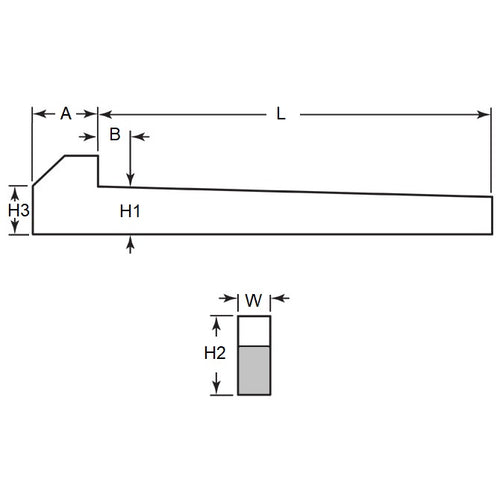

Product Data
- Nominal Key Height (H1) : 11.113 mm
- Width (W) 11.113 mm
- Length (L) 152.4 mm
- Head Height (h2) Approx. 17.5 mm
- Approx (B) 10.16
- Approx (H3) 11.91
- Taper 1:100
- Standard BS46
- Head Length (Approx) (A) 12.70 mm
- Material Cold Finished Steel
Product Compliance and Data
Additional Resources
Cross References
- MAK-A-KEY® JFOR6X716
