WGS1-150-040-100-R-ACS - Datasheet
MBA
Category Information

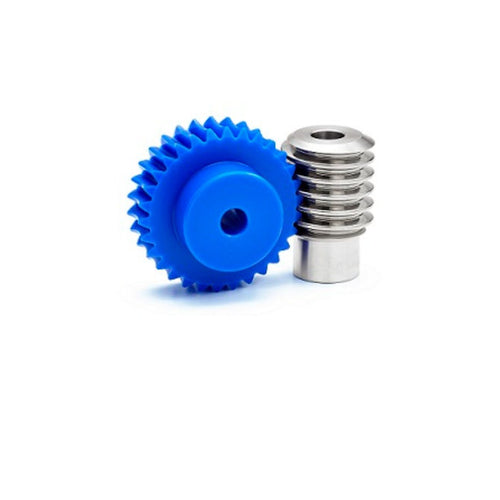

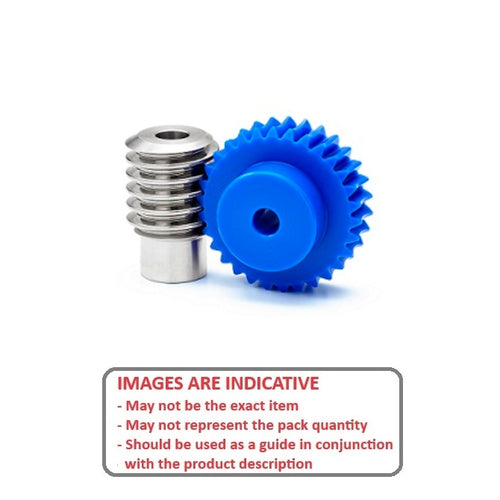

Gears - Worm Sets - Module 1.5Module 1.5 Worm Sets Gears. This is the main category in this series
- Acetal gear and steel worm sets.
- Metric sets only.
- An expanded range may be available on special order. Please enquire.
Product Data
- Pitch : 1.5
- Teeth 40
- Bore (dd)
10.00
mm
(Equiv. 0.394 in.) - Direction Right Hand
- Lead Angle 1
- Face Width (b) 15.00 mm
- Hub Diameter 40.00 mm
- Centre Distance (A) 42.5 mm
- Gear Length (l) 28 mm
- Hub Projection (lh) 13 mm
- Tip Diameter (da) 65.3
- Material Polyacetal and Steel
Product Compliance and Data
Additional Resources
Cross References
- G15BP40R1
