WGS1-150-020-060-R-ACS - Datasheet
MBA
Category Information
Gears - Worm Sets - Module 1.5Module 1.5 Worm Sets Gears. This is the main category in this series
- Acetal gear and steel worm sets.
- Metric sets only.
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

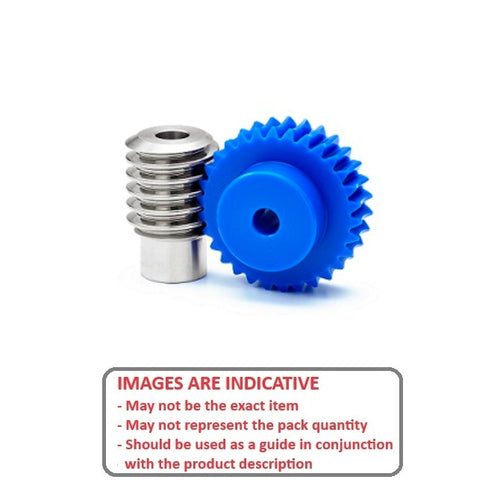

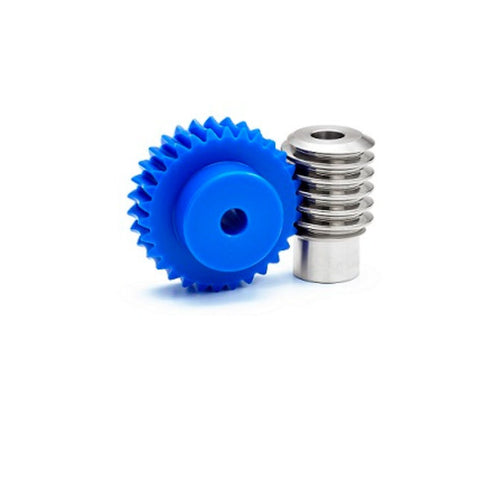

- Pitch : Module 1.5
- Teeth 20
- Bores (Gear / Worm) 6.00 / 8.00 mm
- Direction Right Hand
- Ratio 20 to 1
- Lead Angle 1 Deg
- Face Width (b) 15.00 mm
- Hub Diameter 25.00 mm
- Centre Distance (A) 28.25 mm
- Gear Length (l) 25 mm
- Hub Projection (lh) 10 mm
- Gear Pitch Diameter (da) 30.00 mm
- Material Polyacetal Gear and Steel Worm
